Introduction to CNC Six sided Drill PT6 Through type Six sided Drill is a high-end CNC drilling equipment for panel furniture independently developed and designed by Pinmai CNC. It uses wireless scanning (with sorting function), automatic positioning, dual clamp automatic clamping plate, automatic loading processing, and one-time realization of six face position processing and front and back groove processing. After processing, the clamp automatically loads the board into the sorting rotary platform, with high processing efficiency and automation level. It is currently the main drilling equipment for high-end panel furniture production lines

Product Details

CNC (Computer Numerical Control)Six sided drillintroduction

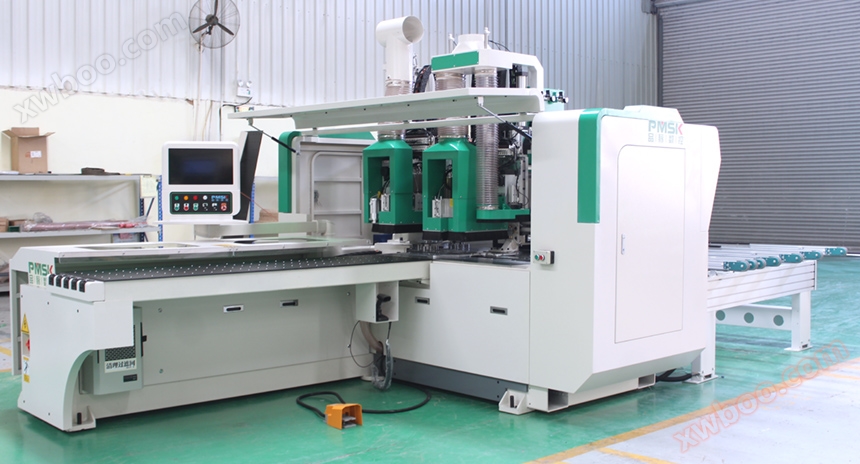

PT6 through type six face drill is a high-end CNC drilling equipment for panel furniture independently developed and designed by Pinmai CNC. It uses wireless scanning (with sorting function), automatic positioning, dual clamp automatic clamping, automatic loading processing, and one-time six face position processing and front and back groove processing. After processing is completed, the clamp automatically loads the board into the sorting rotary platform, with high processing efficiency and automation level. It is currently the main drilling equipment for high-end panel furniture production lines.
数控六面钻

Six sided drilling processing video

Double drill package CNC six sided drill

Double drilling package CNC six sided drilling processing video
Six sided drill+rotary platform

Six sided drill+rotary platform processing video

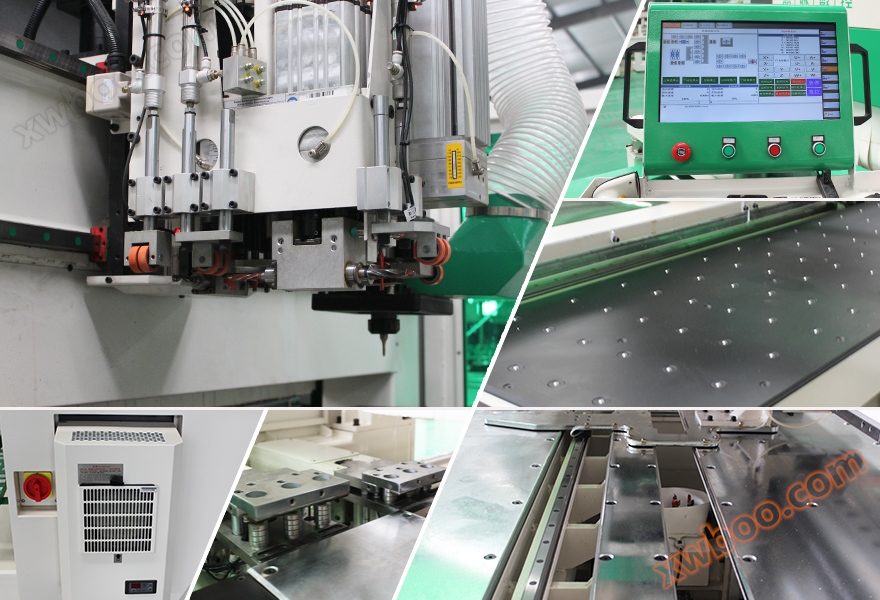

Equipment details

Whole machine characteristics

◆ Upper and lower double row drill set

High efficiency, high precision, solving six faces in one loading.

◆ Intelligent dual clamp

Clamp intelligent avoidance, both large and small plates can be processed, and the maximum speed of clamp movement is 130m/min.

◆ Air floating bead tabletop

Reduce friction and effectively protect the surface of the board.

Intelligent discharge system

After processing the boards, they can be automatically transported to the sorting area.

◆ Multiple discharge modes

You can choose between forward and backward modes. After processing, the boards are transported to the sorting area through a rotating platform.

◆ Intelligent operating system

Computer operation, CAD drawing, CAM import, can directly import open data formats such as DXF, MPR/XML, and are easy to operate. It can connect with well-known design and order splitting software such as CV from the United States, Topsolid from France, Haixun, 3D Home, Yimu, Yunxi, 1010, etc. both domestically and internationally.
Suitable materials
Particle board, particleboard, multi-layer solid wood board, particleboard, solid wood panel, etc
