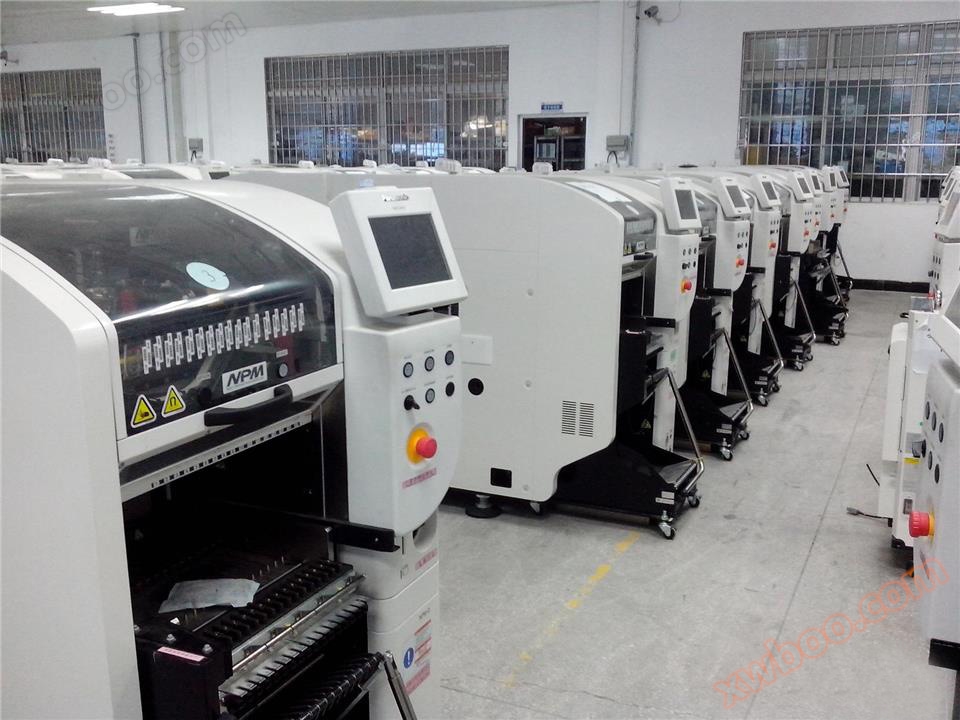

Panasonic NPM-D2 SMT Machine, Panasonic High Speed Module SMT Machine, Panasonic NP

Brief introduction:

Product Introduction: "Panasonic NPM-D2 SMT Machine, Panasonic NPM-D2 High speed Module SMT Machine" Product Introduction: 1. High functionality and high reliability Inheriting Panasonic's practical installation features DNA: * * Compatible with CM Series hardware, it has the ability to correspond to 0402-100 * 90mm components with functions such as component thickness inspection and substrate bending inspection, which can greatly improve the mounting quality and fully meet customers' needs for high difficulty processes such as POP and flexible substrates. 2. Simple operation with user-friendly interface design, model switching indication can greatly shorten the exchange operation time of the rack trolley. Welcome to learn about "Panasonic NPM-D2 SMT Machine, Panasonic NPM-D2 High speed Module SMT Machine"

Details introduction:

Panasonic NPM-D2 SMT Machine, Panasonic High Speed Module SMT Machine

Annual supply of new Panasonic NPM-D2 surface mount machine and Panasonic NPM-D2 module high-speed surface mount machine;

Supply second-hand Panasonic NPM-D2 SMT machine and Panasonic NPM-D2 high-speed module SMT machine year-round;

Long term rental of Panasonic NPM-D2 SMT machine and Panasonic NPM-D2 high-speed module SMT machine;

We provide SMT full line services for Panasonic/Siemens and other brands. You are welcome to call or write to inquire.

New concept equipment that closely follows the changes in SMT technology - 'Panasonic NPM-D2 SMT machine, Panasonic high-speed module SMT machine Panasonic NPM-D2':

NPM is a new concept equipment launched by Panasonic that closely follows the changes in surface mount technology. It can achieve a free "Plug&Play" function through the configuration of various process mounting heads, bringing unlimited flexibility to users' production, and achieving high efficiency and high quality production through a coherent system of mounting and inspection. It inherits the same platform as the CM series and is therefore compatible with the hardware of the CM series. Its operation adopts a user-friendly interface design and has the corresponding capability of 0402 (British 01005) -100 * 90mm components. It also has functions such as component thickness inspection and substrate bending inspection, which can greatly improve the quality of mounting and fully meet customers' needs for high difficulty processes such as POP and flexible substrates. It is an ideal choice for mobile phones, laptops, and other excellent product processing enterprises.

1、 Product parameters of Panasonic NPM-D2 SMT machine and Panasonic NPM-D2 high-speed module SMT machine:
Model Name: NPM-D2 (Panasonic Modular Mounter, Panasonic High Speed Mounter, Panasonic Modular Mounter)
Substrate size
Double track: L50mm × W50mm~L510mm × W300mm
Monorail type: L50mm × W50mm~L510mm × W590mm
Substrate replacement time
Dual track: 0 seconds * * cycle time cannot be 0 seconds when it is less than 4.5 seconds.
Monorail type: 3.9s
Power supply: three-phase AC200220380400420480V2.5kVA
Air pressure source * 2: 0.5MPa, 100L/min (A.N.R.)
Equipment size * 2: W835mm × D2652mm * 3 × H1444mm * 4
Weight: 1620kg (only applicable to the main body: varies depending on the composition of the optional parts). ）

2、 Type of mounting head for Panasonic NPM-D2 SMT machine and Panasonic NPM-D2 high-speed module SMT machine:
1,16 nozzle mounting head: (when equipped with 2 mounting heads)
Mounting speed: 70000cph (0.051s/chip)
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip
Component size (mm) 0402 chip * 6~L6 × W6 × T3
Component supply tape width: 8/12/16/24/32/44/56mm
8mm ribbon: Max, 68 pieces (small reel when using a double ribbon rack)

2,12 nozzle mounting head: (when equipped with 2 mounting heads)
Mounting speed: 62500cph (0.058s/chip)
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip
Component size (mm) 0402 chip * 6~L12 × W12 × T6.5
Component supply tape width: 8/12/16/24/32/44/56mm
8mm ribbon: Max, 68 pieces (small reel when using a double ribbon rack)

3. 8 nozzle mounting heads: (when equipped with 2 mounting heads)
Mounting speed: 40000 cph (0.090 s/chip)
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip, ± 30 μ m/QFP 12mm? 32mm, ± 50 μ m/QFP below 12mm
Component size (mm) 0402 chip * 6~L32 × W32 × T12
Component supply tape width: 8/12/16/24/32/44/56mm
8mm ribbon: Max, 68 pieces (small reel when using a double ribbon rack)
Rod shaped: Max, 8-connected, tray: Max.20 pieces (1 tray feeder)

4-2 nozzle mounting head: (when equipped with 2 mounting heads)
Mounting speed: 8500cph (0.423s/QFP)
Mounting accuracy (Cpk ≥ 1): ± 30 μ m/QFP
Component size (mm) 0603 chip~L100 × W90 × T28
Component supply tape coding bandwidth: 8? 56/72/88/104mm
8mm ribbon: Max, 68 pieces (small reel when using a double ribbon rack)

Rod shaped: Max, 8-connected, tray: Max.20 pieces (1 tray feeder)

3、 Product features of Panasonic NPM-D2 SMT machine and Panasonic NPM-D2 high-speed module SMT machine:

1. Achieve productivity per unit area of height through a comprehensive installation production line (printing&installation&inspection)
Customers can freely choose the actual production line
Implementing overall management of production lines, workshops, and factories through system software

2. High functionality and high reliability
Inheriting Panasonic's practical features DNA: * * Compatible with hardware of CMSeries
Capable of corresponding to 0402-100 * 90mm components with functions such as component thickness inspection and substrate bending inspection, it can significantly improve the quality of mounting and fully meet customers' needs for high difficulty processes such as POP and flexible substrates

3. Simple operation
Adopting a user-friendly interface design, the model switching indicator can significantly shorten the exchange operation time of the material rack trolley
