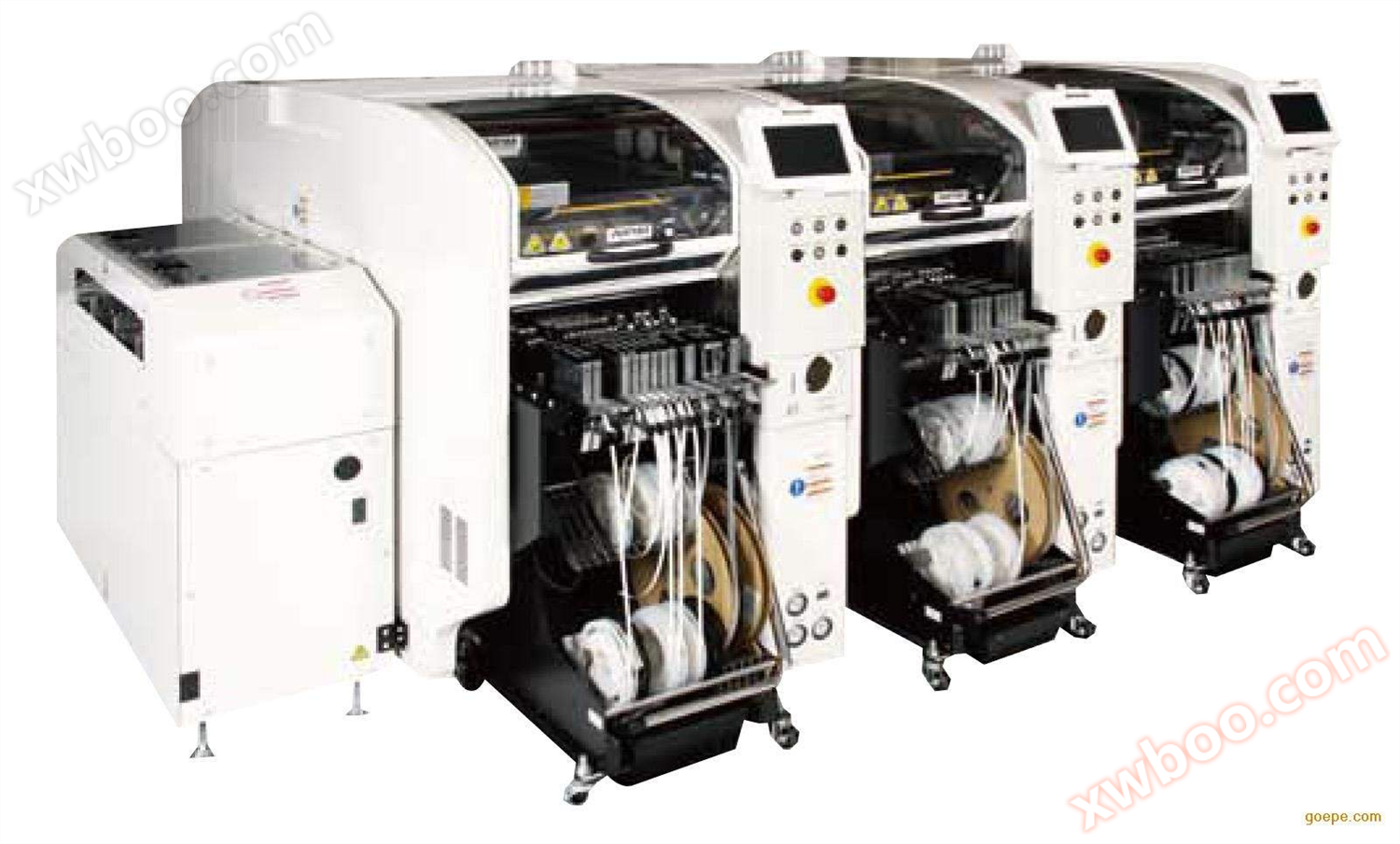

Used Panasonic NPM-D3 high-speed module placement machine

Performance characteristics of second-hand Panasonic NPM-D3 high-speed module placement machine:

The second-hand Panasonic NPM-D3 high-speed module placement machine achieves high efficiency and high-quality production through a seamless system of high productivity per unit area for placement and inspection on the integrated production line.

Customers can freely choose the actual production line - through the plug and play function, they can freely set the position of each working head.

Implement overall management of production lines, workshops, and factories through system software - support planned production through motion monitoring of production lines.

The Panasonic NPM-D3 high-speed module placement machine has lightweight 16 nozzle placement heads and 12 nozzle placement heads, 8 nozzle placement heads, and optional 2 nozzle placement heads. It has dual track printing on the front and can be directly connected to the NPM-D3 dual track module machine at the back.

Software features of Panasonic NPM-D3 high-speed module placement machine system:

1) Mounting height control system

2) Operation oriented system

3) APC system

4) Component Proofreading Options

5) Automatic machine cutting options

6) Upper communication optional parts

Multi functional production line: using a dual track conveyor belt, it can carry out mixed production of different types of substrates in the same production line

Specialty: Simultaneously achieving higher area productivity and higher precision in practical installation

High production mode: productivity increased by 20%, with high actual installation accuracy (compared to NPM-D2). High speed: 84000CPH, installation accuracy of 40UM

High precision mode: productivity increased by 9%, actual installation accuracy increased by 25% (compared to NPM-D2), high-speed 76000CPH, mounting accuracy 30UM

Used Panasonic NPM-D3 high-speed module placement machine

Specification parameters of second-hand Panasonic NPM-D3 high-speed module placement machine:

Model Name: NPM-D3

Substrate size (mm) * 1

Double track: L50 × W50~L510 × W300

Monorail type: L50 × W50~L510 × W590

Substrate replacement time

Dual track: 0 seconds * cycle time cannot be 0 seconds when it is less than 3.6 seconds.

Monorail type: 3.6s * When selecting a short specification conveyor belt

Power supply: three-phase AC200220380400420480V2.7kVA

Air pressure source * 2: 0.5MPa, 100L/min (A.N.R.)

Equipment size (mm) * 2: W832 × D2652 * 3 × H1444 * 4

Weight: 1680kg (only applicable to the main body: varies depending on the composition of the optional parts). ）

Mounting head: 16 nozzle head (equipped with 2 cantilevers) ON high production mode

Quick mounting speed: 84000cph (0.043s/chip)

IPC9850：63300cph*5

Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip

Component size (mm): 0402 chip * 7~L6 × W6 × T3

Component supply:

Encoding bandwidth: 8/12/16/24/32/44/56mm

8mm ribbon: Max, 68 pieces (8mm thin single rack and double ribbon rack, small reel)

Mounting head: 16 nozzle head (equipped with 2 cantilevers) OFF high production mode

Quick mounting speed: 76000cph (0.047s/chip)

IPC9850：57800cph*5

Mounting accuracy (Cpk ≥ 1): ± 30 μ m/chip (± 25 μ m/chip * 6)

Component size (mm): 03015 * 7 * 8/0402 chip * 7~L6 × W6 × T3

Mounting head: 12 suction nozzle heads (equipped with 2 cantilevers)

Quick mounting speed: 69000 cph (0.052s/chip)

IPC9850：50700cph*5

Mounting accuracy (Cpk ≥ 1): ± 30 μ m/chip

Component size (mm): 0402 chip * 7~L12 × W12 × T6.5

Mounting head: 8 suction nozzle heads (equipped with 2 cantilevers)

Quick mounting speed: 43000pph (0.084s/chip)

Mounting accuracy (Cpk ≥ 1): ± 30 μ m/QFP 12mm/32mm, ± 50 μ m/QFP below 12mm

Component size (mm): 0603 chip to L100 × W90 × T28

Rod shaped: Max, 8-connected, tray: Max.20 pieces (1 tray feeder)

Mounting head: 2 suction nozzle heads (equipped with 2 cantilever arms)

Quick mounting speed: 11000 cph (0.327 s/chip)

IPC9850：8500cph（0.423s/QFP）

Encoding bandwidth: 8/56/72/88/104mm
