Second hand SMT Jintuo small 8-zone reflow soldering furnace "12 year factory product"

NegotiableUpdate on 03/05

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Second hand SMT Jintuo small 8-zone reflow soldering furnace "12 year factory product"

Product Details

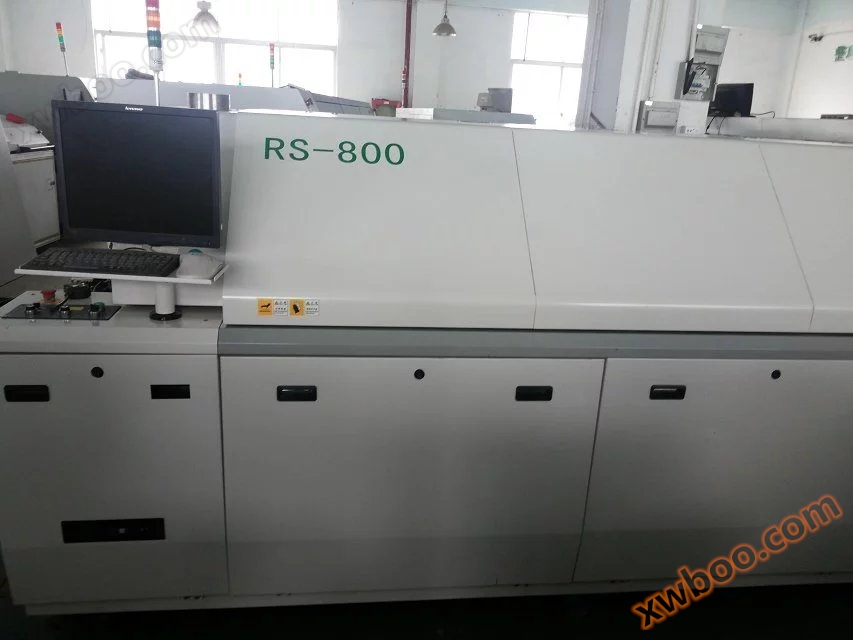

Characteristics of the second-hand Jintuo small 8-zone reflow soldering furnace:12 year factory goods

Contact for viewing: Wang Sheng:

*Fully meet the requirements of various lead-free soldering processes

*Windows 7 operating system, with a Chinese and English interface, easy to operate and learn

*The standard 8-to-8 air furnace and patented hot air management system make hot air convection more efficient and heat capture faster

*PLC ten PID closed-loop control, stable and reliable performance, high temperature control and curve repeatability accuracy

*Dual temperature sensors, dual safety control mode, speed abnormal alarm, board drop alarm

*Fully modular design, convenient and fast maintenance, reducing maintenance time and costs

*The guide rail adopts special hardening treatment, which is sturdy and durable

*The guide wheel adopts a single chain buckle for debugging, which is simple and practical

*PLC+modular control, stable and reliable performance, higher repeatability accuracy
二手劲拓小型8温区回流焊炉特点

Second hand Jintuo small 8-zone reflow soldering furnaceSpecification parameters:

model	JTE-800
Dimensions (L * W * H)	5378X1320X1490
Number of heating zones	Up/Down 8
Heating zone length	3110mm
Number of cooling zones	Up 2
Exhaust air volume requirements	10m ³/minx2 (channel)
heating up time	About. 30 minutes
temperature control accuracy	±1.0℃
PCB board temperature distribution deviation	±1.5℃
Maximum PCB width	400mm
Component height	25mm above/below PCB board
Transportation direction	Left to right L → R (optional: right to left R → L)
PCB transportation method	Chain+mesh belt
Transportation speed	300~2000mm/min
Cooling method	forced air cooling

Second hand equipment, with slight changes in parameters, please understand

Explanation of the second-hand Jintuo small 8-zone reflow soldering furnace

1. Preheating zone
The preheating zone is heated to 175 degrees Celsius for about 100 seconds, from which the heating rate of the preheating zone can be obtained (as this tester uses online testing,
So from 0-46 seconds, we haven't entered the preheating zone yet. Time 146-46=100 seconds, and due to the room temperature being 26 degrees, 175-26=149 degrees Celsius
The temperature rate is; 149 degrees/100S=1.49 degrees/S)

2. Constant temperature zone

The high temperature in the constant temperature zone is around 200 degrees Celsius for 80 seconds, with a temperature difference of 25 degrees Celsius between the high and low temperatures

3. Reflux zone

The high temperature in the reflux zone is 245 degrees Celsius, and the low temperature is 200 degrees Celsius, with a peak time of approximately 35 seconds; Heating rate of reflux zone
According to (how to correctly set the temperature curve), it can be concluded that the time it takes for this temperature curve to reach its peak is too long.
The entire reflux time is approximately 60 seconds

4. Lingque District

The time in Lingque District is about 100 seconds, and the temperature drops from 245 degrees to around 45 degrees. The speed of Lingque is: 245-45 degrees=200 degrees/100S=2

Degree/S
