Panasonic NPM-W SMT Machine, Panasonic High Speed Modular SMT Machine NPM-W SMT Machine, Product Features: 1. Achieve a seamless system of high productivity per unit area for SMT and inspection on the integrated production line, achieving high efficiency and high-quality production; 2. Can correspond to large substrates and components: can correspond to large substrates of 750 × 550mm, and the component range has also been expanded to 150 × 25mm;

Panasonic NPM-W SMT Machine, Panasonic High Speed Modular SMT Machine NPM-W SMT Machine

Our company is the agent manufacturer of Panasonic NPM series surface mount machine models. If you need to know Panasonic NPM prices/quotes/solutions, you can consult us for more information

Annual supply of brand new 'Panasonic NPM-W SMT machine, Panasonic high-speed modular SMT machine NPM-W SMT machine';

Supply second-hand Panasonic NPM-W SMT machine and Panasonic high-speed modular SMT machine NPM-W SMT machine year-round;

Long term rental of Panasonic NPM-W SMT machine and Panasonic high-speed modular SMT machine NPM-W SMT machine;

We provide SMT full line services for Panasonic/Siemens and other brands. You are welcome to call or write to inquire.

1、 Panasonic NPM-W SMT Machine, Panasonic High Speed Modular SMT Machine NPM-W SMT Machine "Parameters:

Model Name: NPM-W (Panasonic Modular Mounter, Panasonic High Speed Mounter, Panasonic Modular Mounter)

Model Name: NPM-W

Substrate size 750 × 550mm
Monorail * 1
Overall installation: L50mm × W50mm~L750mm × W550mm
Installation in 2 positions: L50mm × W50mm~L350mm × W550mm
Double track * 1
Monorail transmission: L50mm × W50mm~L750mm × W510mm
Double track transmission: L50mm × W50mm~L750mm × W260mm

Substrate replacement time
Monorail * 1
Overall installation: 4.4 seconds (when no components are mounted on the back of the substrate)
Installation in 2 positions: 2.3s (when no components are mounted on the back of the substrate)
Double track * 1
Monorail transmission: 4.4s (when there are no components mounted on the back of the substrate)
Dual track transmission: 0 seconds * * cycle time cannot be 0 seconds when it is less than 4.4 seconds.

Power supply: three-phase AC200220380400420480V2.5kVA
Air pressure source * 2: 0.5MPa, 200L/min (A.N.R.)
Equipment size * 2: W1280mm * 3 × D2332mm * 4 × H1444mm * 5
Weight: 2250kg (only applicable to the main body: varies depending on the composition of the optional parts). ）

Mounting head: 16 nozzle mounting head (when equipped with 2 mounting heads)
Mounting speed: 70000cph (0.051s/chip)
IPC9850（1608）：53800cph*8
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip
Component size (mm): 0402 chip * 6~L6 × W6 × T3
Component supply tape width: 8/12/16/24/32/44/56mm
Max, 120 continuous (8mm braided tape, double braided tape rack (small reel))

Mounting head: 12 nozzle mounting head (when equipped with 2 mounting heads)
Mounting speed: 62500cph (0.058s/chip)
IPC9850（1608）：48000cph*8
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip
Component size (mm): 0402 chip * 6~L12 × W12 × T6.5
Component supply tape width: 8/12/16/24/32/44/56mm
Max, 120 continuous (8mm braided tape, double braided tape rack (small reel))

Mounting head: 8-nozzle mounting head (when equipped with 2 mounting heads)
Mounting speed: 40000 cph (0.090 s/chip)
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip, ± 30 μ m/QFP 12mm~32mm, ± 50 μ m/QFP below 12mm
Component size (mm): 0402 chip * 6~L32 × W32 × T12
Component supply tape width: 8-56/72mm
Front and rear exchange trolley specifications: Max.120 connected (with strip width and material rack according to the conditions described on the left)
Single type tray specification: Max.86 (tape width, shelf according to the conditions described on the left)
Double tray specification: Max.60 (tape width, shelf according to the conditions described on the left)
Rod shaped: Front and rear exchange trolley specification: Max.14 connected
Single tray specification: Max.10 connected
Double tray specification: Max.7 connected
Tray: Single Tray Specification: Max.20 continuous
Double tray specification: Max.40 connected

Mounting head: 3 suction nozzle mounting heads ※ 7 (when equipped with 2 mounting heads)
Mounting speed: 11000cph (0.33s/QFP)
Mounting accuracy (Cpk ≥ 1): ± 30 μ m/QFP
Component size (mm): 0603 chip to L150 × W25 (diagonal 152) × T28
Component supply tape width: 8-56/72/88/104mm
Front and rear exchange trolley specifications: Max.120 connected (with strip width and material rack according to the conditions described on the left)
Single type tray specification: Max.86 (tape width, shelf according to the conditions described on the left)
Double tray specification: Max.60 (tape width, shelf according to the conditions described on the left)
Rod shaped: Front and rear exchange trolley specification: Max.14 connected
Single tray specification: Max.10 connected
Double tray specification: Max.7 connected
Tray: Single Tray Specification: Max.20 continuous
Double tray specification: Max.40 connected

2、 Product features of Panasonic NPM-W surface mount machine:

1. Realize high productivity per unit area on the integrated production line
A coherent system for mounting and inspection, achieving high efficiency and high-quality production

2. Can correspond to large substrates and large components
It can accommodate large substrates of 750 × 550mm, and the component range has also been expanded to 150 × 25mm

3. Dual track installation achieves productivity per unit area of height (select specifications)

According to the production substrate, the best implementation method can be selected from "independent implementation", "alternating implementation", and "mixed implementation"

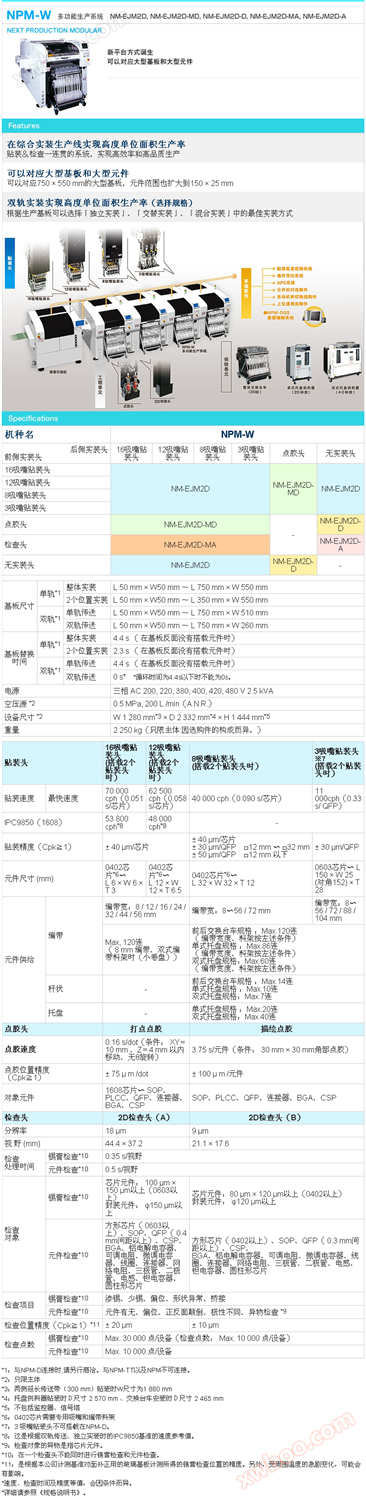

3、 Panasonic SMT Machine NPM-W Data:

*1 : Please consult us separately should you connect it to NPM-D. It cannot be connected to NPM-TT and NPM.
*2 : Only for main body
*3 : 1 880 mm in width if extension conveyors (300 mm) are placed on both sides.
*4 : Dimension D including tray feeder : 2 570 mm Dimension D including feeder cart : 2 465 mm
*5 : Excluding monitor and signal tower
*6 : The 0402 chip requires a specific nozzle/feeder.
*7 : 3-nozzle head cannot be installed to NPM-D.
*8 : It is the reference value of an IPC9850-compliant tact time estimated in the dual conveyor/independent mode.
*9 : Foreign object is available to chip components.
*10 : One head cannot handle solder inspection and component inspection at the same time.
*11 : This is the solder inspection position accuracy measured by our reference using our glass PCB for plane calibration. It may be affected by sudden change of ambient temperature.
*Placement tact time,inspection time and accuracy values may differ slightly depending on conditions
*Please refer to the specification booklet for details.
