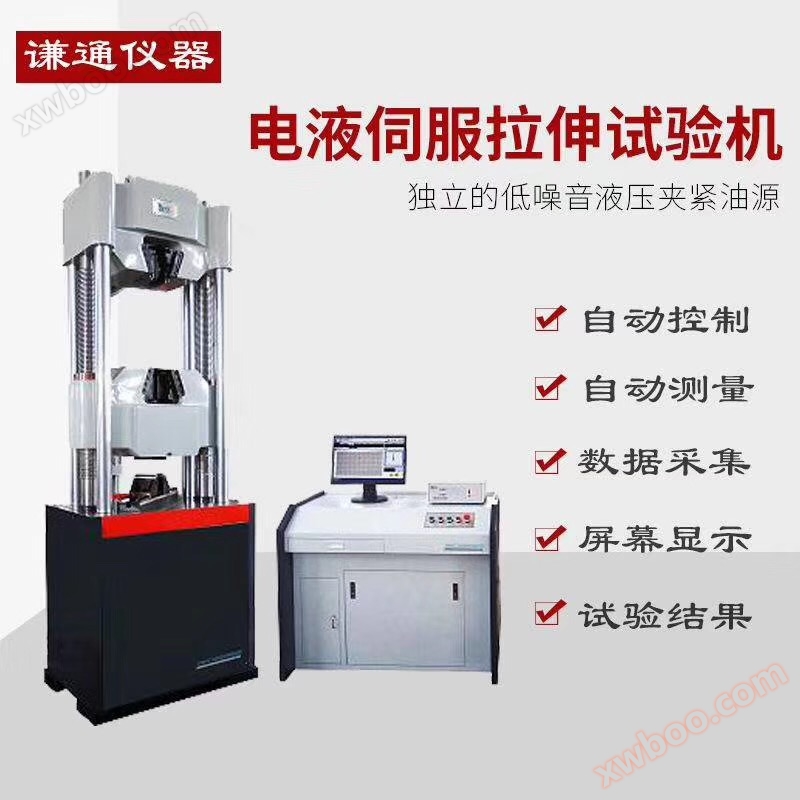

QT-6060D electro-hydraulic servo universal material testing machine

Main technical indicators:

1. Maximum test force: 600kN;

2Test force measurement range:2%—100%FS；

3Accuracy of test force indication:±1%；

4Maximum stretching space:520mm；

5Maximum compression space:420mm；

6Flat specimen clamping thickness:0-30(Standard configuration)0-15）；

7Circular specimen clamping diameter:Φ13-Φ40mm；

8Maximum spacing between curved supports:400mm；

9Column spacing:460mm；

10Accuracy of piston displacement indication:±0.5%FS. ；

11Deformation measurement resolution:0.001 mm；

12Deformation measurement accuracy:±0.5%；

13. Sensors: oil pressure sensor, photoelectric sensor, extensometer;

14. Control mode: electro-hydraulic servo closed-loop control, control mode can be smoothly switched;

15. Display mode: The computer screen displays the measured values of test force, piston displacement, and sample deformation, the screen displays the test curve, and the screen is zeroed and calibrated;

16Host size: approximately730*570*1900mm；

17Control cabinet size:1010*650*870 mm；

18Host weight: approximately2000kg；

19Oil pump motor power:2.2KW

20Power of crossbeam moving motor:0.37KW
