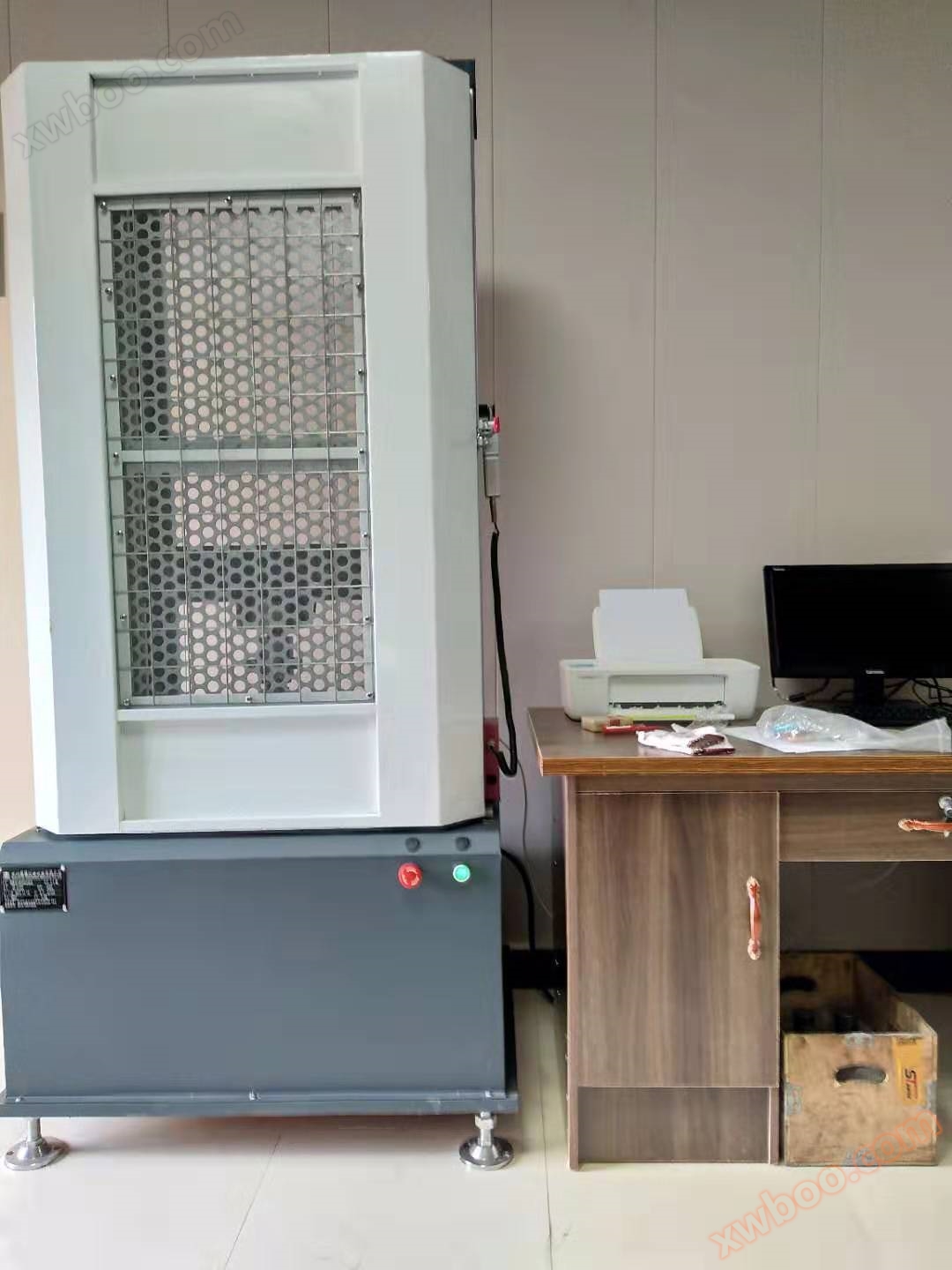

QT-6120S Steel Wire Rope Elongation and Elastic Modulus Testing Machine

1. Maximum test force: 200kN;

2Accuracy level of testing machine:Level 0.5;

3. Test force measurement range: 2% -100% FS;

4Relative error of test force indication: indication of±Within 0.5%;

5Test power resolution: maximum test power1/±500000 (with constant resolution throughout the entire process);

6Relative error of displacement indication: indication ofWithin ± 0.5%;

7Displacement resolution:0.0005mm；

8Range of force control rate adjustment:0.1-2%FS/S；

9Relative error of force control rate: set value±Within 0.5%;

10Range of speed adjustment for crossbeam:0.05—200mm/min；

11. Relative error of crossbeam speed: within 0.5% of the set value;

12Constant force, constant deformation, constant displacement control range:0.5%--100%FS；

13Constant force, constant deformation, constant displacement control accuracy: set valueWhen<10% FS, it is within ± of the set valueWithin 0.5%; When the set value is ≥ 10% FS, it is within ± 0.1% of the set value;

14. Maximum stretching stroke: 1100mm;

15. Effective stretching space (net space): about 680mm;

16Effective test width:420*420mm；

17Overall dimensions of the host (length)X Width x Height):950*620*2050mm；

18. Power supply: 380V50Hz 3kW；

19. Host weight: approximately 850kg.
