Beijing Guance Jingdian Instrument Equipment Co., Ltd
Reciprocating friction and wear testing machine, plastic friction testing machine, friction and wear tester
NegotiableUpdate on 04/01
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Reciprocating Friction and Wear Testing Machine Plastic Friction and Wear Tester 2. Functional Features: 1. Sample Size: 30mm × 7mm × 6mm 2. Rotation Speed: 0-200 revolutions per minute (adjustable) 3. Load: 196N ± 0.1% (can be increased to 392N) 4. Friction Ring Size: ￠ 40 × 10mm
Product Details

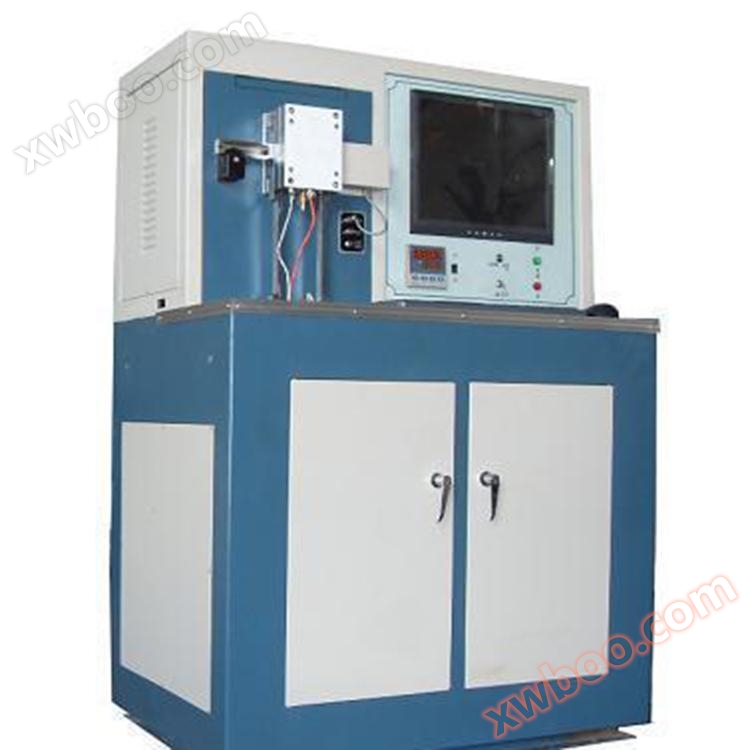

Reciprocating friction and wear testing machine, plastic friction testing machine, friction and wear tester

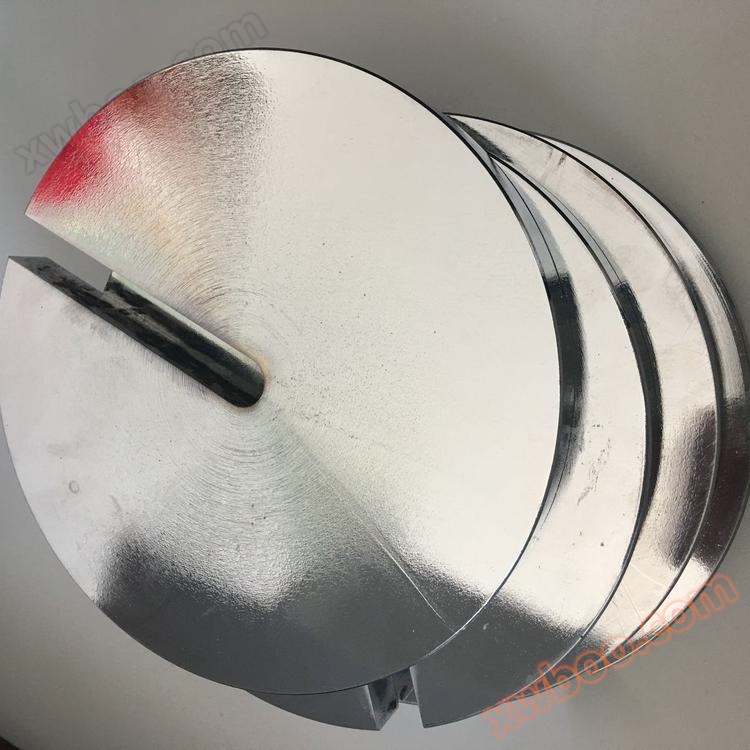

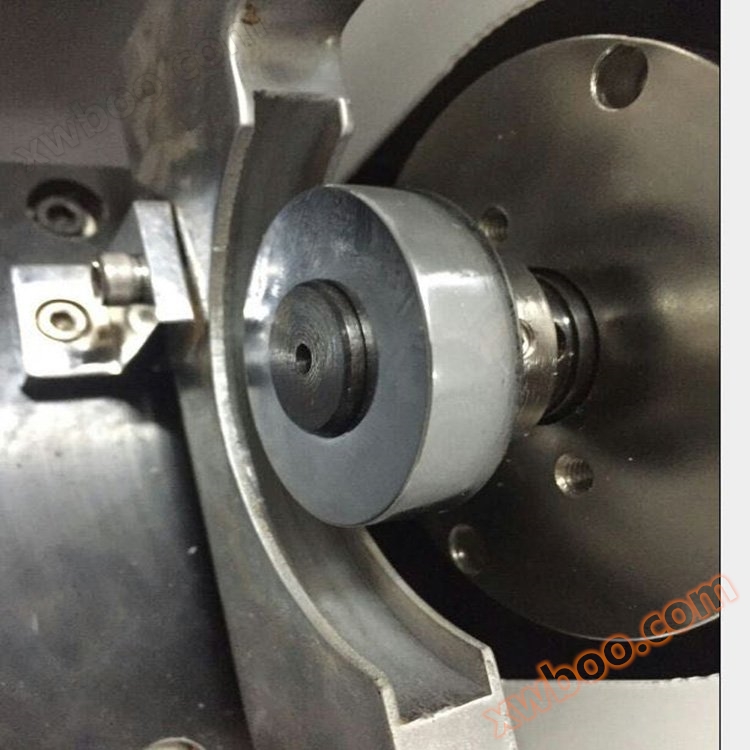

2、 Functional features: 1. Sample size: 30mm × 7mm × 6mm 2. Rotation speed: 0-200 revolutions per minute (adjustable) 3. Load: 196N ± 0.1% (can be increased to 392N) 4. Friction ring size: ￠ 40 × 10mm, chamfer 0.5 × 45 °, with a concentricity deviation of less than 0.01 between the outer and inner surfaces? 5. Friction ring material: 45 steel, quenched, heat treated HRC40-45, outer surface smoothness ▼ 8 6, friction torque: 0-10N · m 7, weight: one 4KG weight, four 1KG weights, can achieve weight superposition function.
2、 Functional features: 1. Sample size: 30mm × 7mm × 6mm 2. Rotation speed: 0-200 revolutions per minute (adjustable) 3. Load: 196N ± 0.1% (can be increased to 392N) 4. Friction ring size: ￠ 40 × 10mm, chamfer 0.5 × 45 °, with a concentricity deviation of less than 0.01 between the outer and inner surfaces? 5. Friction ring material: 45 steel, quenched, heat treated HRC40-45, outer surface smoothness ▼ 8 6, friction torque: 0-10N · m 7, weight: one 4KG weight, four 1KG weights, can achieve weight superposition function.
