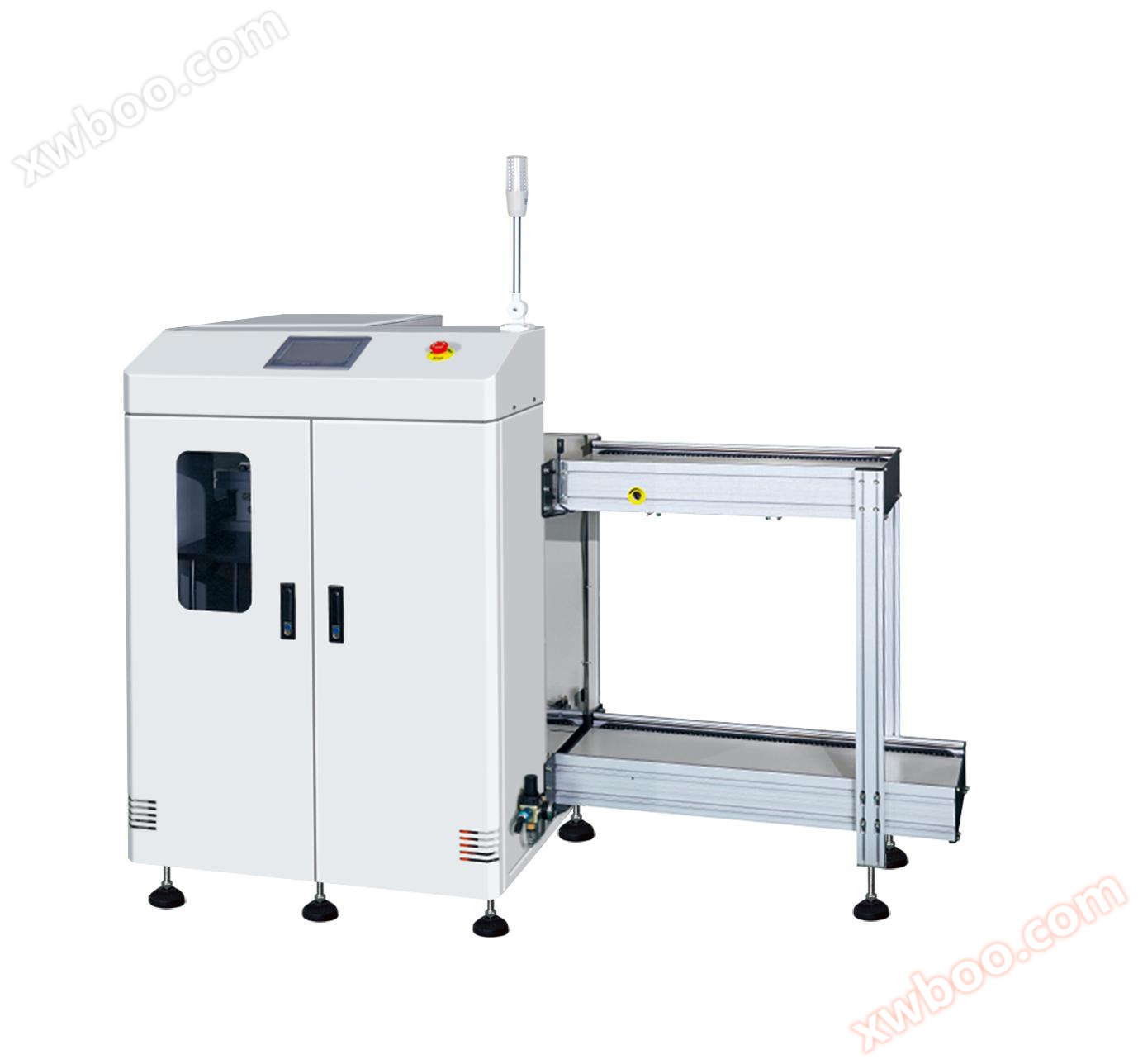

SMT vacuum suction board and board integration machine

Features of SMT vacuum suction board and board integration machine:

1. LED tri color work indicator light+touch screen
2. The main body is made of bent and welded sheet metal
3. The transmission adopts a motor with stable performance
4. Special air path design, able to smoothly push PCB board out
5. There are two modes of vacuum suction board and material box board
6. Smooth parallel screw width adjustable method
7. PLC control system, programmable controller
8. SMEMA standard four core signal cable, which can be directly connected to other devices for use
9. Blackboard detection (option)

SMT vacuum suction board integrated machine parameters:

Machine dimensions: 1780 (L) * 960 (W) * 1250 (H)
Circuit board size (mm): 50 * 50~330 * 250
VL-250W-TN

Machine dimensions: 2100 (L) * 1045 (W) * 1250 (H)
Circuit board size (mm): 50 * 50~445 * 330
VL-330W-TN

Machine dimensions: 2450 (L) * 1170 (W) * 1250 (H)
Circuit board size (mm): 50 * 50~530 * 390
VL-390W-TN

Machine dimensions: 2450 (L) * 1370 (W) * 1250 (H)
Circuit board size (mm): 50 * 50~535 * 460
VL-460W-TN

Machine dimensions: 1780 (L) * 960 (W) * 1250 (H)
Circuit board size (mm): 50 * 50~330 * 250
On board time: 15.0 seconds
Working height (mm): 920 ± 30 (std)
Power supply and output: AC220V ± 10V, 50/60HZ
Transmission speed: 0.5-20 meters per minute
Compressed air flow rate: maximum 10 liters per minute
Circuit board thickness: minimum 0.6mm thickness
Maximum capacity of circuit board: 400 pieces (0.6mm thick circuit board)
