Second hand Shenzhou ALD-H-600 offline AOI

NegotiableUpdate on 03/05

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

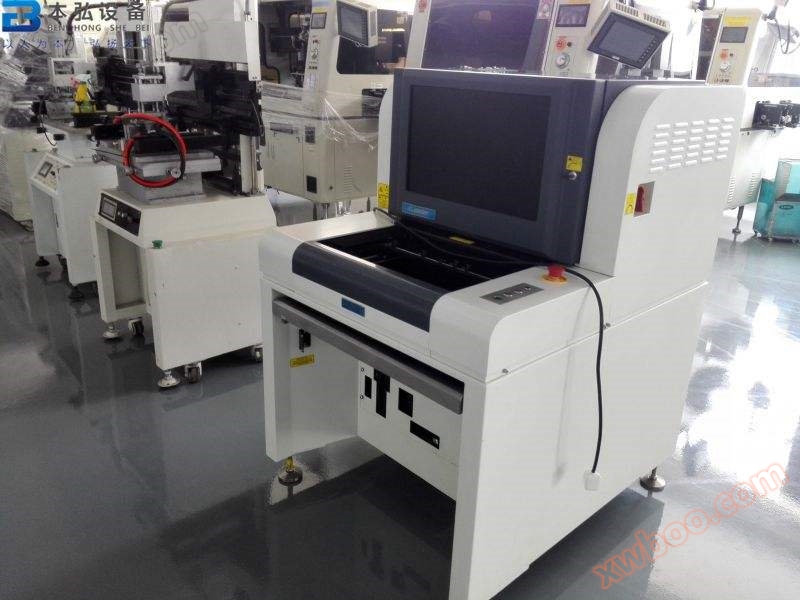

Second hand Shenzhou ALD-H-600 offline AOI

Product Details

Latest arrival at the warehouse, selling second-hand Shenzhou 17-19 ALD-H-600 offline AOI multiple units at a beautiful price. Please feel free to inquire for a quote. Wang Sheng:

Shenzhou ALD-H-600AOI is an offline AOI developed specifically for domestic SMT electronic manufacturers with small batches and multiple varieties of products. The high-precision AC servo system can quickly complete testing, corresponding to the most advanced production needs at present.

Supply of second-hand Shenzhou AOI automatic optical inspection instrument ALD-H-600, Shenzhou offline AOI, new condition, complete accessories, and provide training and warranty services.

Shenzhou ALD-H-600AOI is an offline AOI developed specifically for domestic SMT electronic manufacturers with small batches and multiple varieties of products. The high-precision AC servo system can quickly complete testing, corresponding to the most advanced production needs at present.

Shenzhou ALD-H-600AOI functional parameters:

1. Circuit board inspection: SMT solder paste printing with through-hole and hybrid technology, as well as circuit board inspection before and after reflow oven

2. Detection method: Statistical modeling, full-color image comparison, and automatic setting of parameters (such as offset, polarity, short circuit, etc.) based on different detection points

3. Camera: Full color 3CCD high-speed intelligent digital camera

4. Resolution/Visual Range/Speed

(standard) 20 μ m/Pixel FOV: 27.84 × 20.8 Detection speed<210ms/FOV (standard)

(Option) 15 μ m/Pixel FOV: 20.88 × 15.6 Detection speed<190ms/FOV (optional)

5. Light source: High brightness strobe RGBB/RGBR four-color circular tower shaped LED light source (colored light)

6. Programming mode: manual writing, automatic framing, CAD data import, automatic corresponding component library

7. Remote control: enables remote operation, viewing anytime and anywhere, starting or stopping machine operation, modifying programs, and other operations through TCP/IP networks

8. Detection coverage type:

Solder paste printing: presence or absence, offset, low tin, high tin, circuit breaker, continuous tin, pollution, etc

Parts defects: missing parts, offset, skewness, standing monument, side standing, flipping parts, wrong parts, OCV、 Damage, reverse, etc

Solder joint defects: excessive tin, insufficient tin, virtual soldering, continuous tin, copper foil contamination, etc

11. Special feature: Running multiple programs simultaneously, supporting automatic retrieval of programs; Can be checked for 0-359 rotating parts (unit: 1 °)

12. Minimum component testing: 15 μ m: 0201chip&0.3pitch IC

13. SPC and process control: Record test data throughout the process and conduct statistical analysis. Production status and quality analysis can be viewed in any area, and file formats such as Excel and Txt can be output

Barcode system: camera automatic recognition and transmission of barcode (1D or 2D code), and multi Mark function (including Bad Mark)

Server mode: Using a central server, multiple AOI datasets can be centrally and uniformly managed

Operating System: Windows XP Professional

Inspection result output: 22 inch LCD display, OK/NG signal, send data file to repair station (option)

Shenzhou ALD-H-600AOI system parameters:

1. PCB size range 50 × 50mm~430 × 330mm

2. PCB thickness range 0.3~5 mm

3. PCB clamping system edge gap: TOP 3.5 mm Bottom: 3.5 mm

4. Maximum PCB weight: 3KG

5. PCB curvature:<5mm or 2% of the diagonal length of the PCB

6. PCB top and bottom clear height: 30 mm PCB top side: 50 mm PCB bottom side

7. PCB fixing system: double-sided fixtures that automatically open and retract, and automatic compensation for PCB bending and deformation

8. PCB fixing system ground clearance: 850~920 mm

9. PCB fixing system/time: PCB moves in/out of the board in the Y direction Time: 2 seconds

10. X/Y platform drive: screw and AC servo motor drive, positioning accuracy<10 μ m; PCB fixed, camera moves in X direction

11. Power supply: AC230V 50/60 Hz less than 0.8KVA

12. Air pressure: not required

13. Equipment weight: approximately 520KG

14. Equipment dimensions: 1350 × 1350 × 1100mm (L × W × H)
