Second hand Shenzhou offline AOI-ALD515 "Factory New Product"

Product Details

A brief introduction to the parameters of second-hand Shenzhou offline AOI-ALD515:

The new machine will arrive in December 2018. Please feel free to contact us for viewing. Welcome to rent and supply
Contact: Wang:

Shenzhou offline AOI-ALD515 (second-hand)

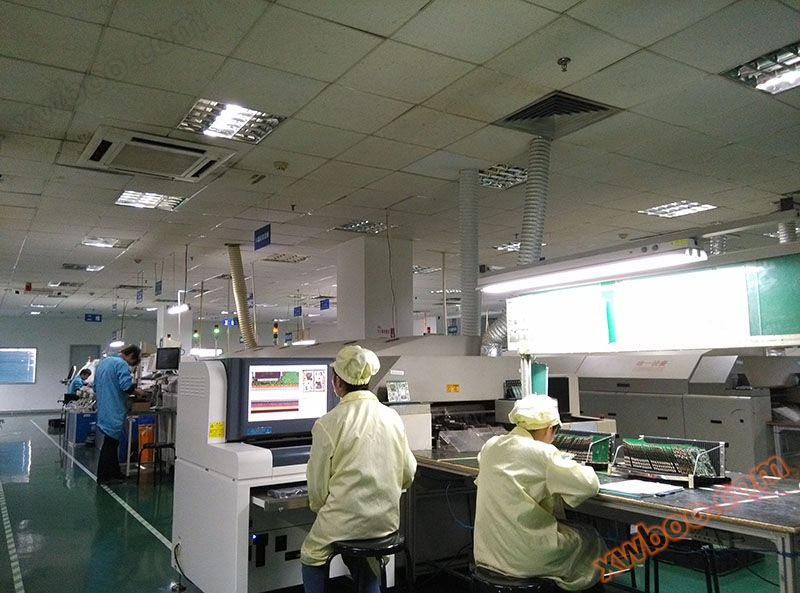

Shenzhou offline AOI-ALD515, the most cost-effective offline AOI (second-hand)

Shenzhou offline AOI-ALD515 (second-hand)

It is an offline AOI developed specifically for many small batch and multi model manufacturers in China. The imported screw guide rail achieves the highest accuracy, and the 3CCD color camera accurately recognizes the color changes of each component. It has a complete 01005 detection capability, complies with CE standards and humanized mechanical design, and has a large pull-out operation tray for operators to place PCB and other items. The LCD display in the middle can protect the operator's vision, and the centralized circuit system can be easily seen when the outer cover is opened, which is convenient for maintenance. The automatic opening of the double-sided fixture greatly improves the use effect, and the automatic sensing safety light curtain and the automatic opening flap make the equipment safer to use.

Characteristics of Shenzhou offline AOI-ALD515

Previous Device Characteristics

Quick Programming Design

Multi domain application design

Design of Intelligent Coaxial Light Source

Built in ALDSDC software package

High precision, high detection rate

Multi Mark function (including Bad Mark)

Running multiple programs simultaneously

Intelligent automatic barcode reading

Remote control and central server

Functional Specifications
Tested circuit board	Inspection of circuit board after SMT reflow oven
test method	TOC algorithm, Histogram algorithm, Match algorithm, Short algorithm, Other algorithm, CREST algorithm, PIN algorithm and other internationally leading algorithms. The system automatically sets its parameters according to different detection points
Camera	Full color intelligent digital camera
Resolution/Visual Range/Speed	Standard configuration: 15 µ m/Pixel FOV: 38mm × 31mm Detection speed<200ms/FOV Optional: 8 µ m/Pixel FOV: 20mm × 16mm Detection speed<220ms/FOV
light source	High brightness RRGB coaxial circular tower shaped LED light source (colored light)
program mode	Manual writing, automatic framing, CAD data import, automatic corresponding component library
Remote control	Implement remote operations, view anytime, anywhere, start or stop machine running, modify programs, and other operations through TCP/IP networks
Detect coverage type	Offset, insufficient soldering, short circuit, contamination, missing parts, skewing, standing monument, side standing, flipping parts, wrong parts, damage, floating height, polarity, virtual soldering, empty soldering, overflow glue, tin holes, pins not coming out, etc
special function	Running multiple programs simultaneously, supporting automatic retrieval of programs; Parts that can rotate between 0-359 ° (unit: 1 °)
Minimum component testing	8µm：01005chip & 0.3pitch IC
SPC and process control	Record test data throughout the process and conduct statistical analysis. Production status and quality analysis can be viewed in any area, and file formats such as Excel and Txt can be output
bar code system	Camera automatic recognition and transmission barcode (1D or 2D code), and multi Mark function (including Bad Mark)
Server mode	By using a central server, multiple AOI datasets can be centrally and uniformly managed
operating system	Windows7 Professional
Output of inspection results	22 inch LCD display
System Specifications
PCB size range	50×50mm(Min)～430×330mm(Max)
PCB thickness range	0.3 to 5 mm
PCB clamping system edge gap	TOP：3.5 mm Bottom：3.5 mm
Maximum PCB weight	3KG
PCB bending degree	<5mm or 2% of the diagonal length of the PCB
PCB top and bottom clearance height	Top Side of PCB: 30 mm Bottom Side of PCB: 60 mm
Conveyor system	Double sided fixtures that automatically open and retract, and automatic compensation for PCB bending deformation
Conveyor ground clearance height	850 to 920 mm
Conveyor flow/time	PCB moves in/out of the board in the Y direction for 2 seconds
X/Y platform driver	Screw motor drive; PCB fixed, camera moves in X direction, each one passes CTQ certification
power supply	AC230V 50/60 Hz less than 0.5KVA
air pressure	NOT REQUIRED
Equipment weight	About 520KG
Equipment external dimensions	900×1070×1310mm (L×W×H)
Environmental temperature and humidity	10-35 ℃ 35-80% RH (no condensation)
Equipment safety regulations	Compliant with CE safety standards
