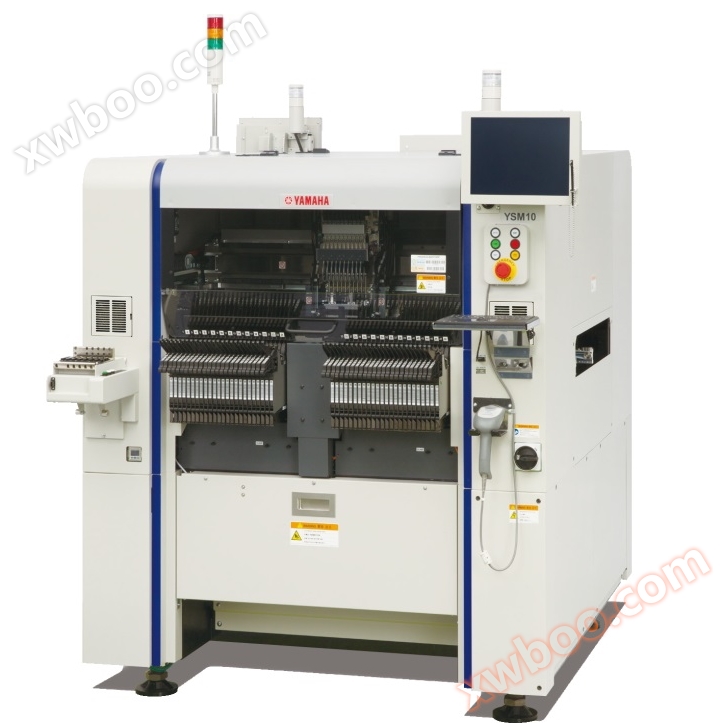

Second hand Yamaha SMT machine YSM10-YAMAHA

Product Details

Used Yamaha Surface Mount Machine YSM10-YAMAHA in April 2018

Second hand Yamaha SMT machine YSM10-YAMAHA available for rent or sale

The entry-level model of the world's fastest surface mount machine with 46000CPH performance among the same level of 1 beam and 1 mounting head

Compared with previous models, the speed has increased by more than 25%, achieving the world's fastest mounting capability in the same class. The HM mounting head is equipped with a new scanning camera that improves component handling capabilities

Flexible support for production sites
Realize the function of stable production
Compared with similar single beam surface mount machines in terms of optimal mounting capability (CPH) under optimal conditions.

(Survey results of our company in January 2017)

YAMAHA-YSM10 Advantages

1. High speed universal integrated mounting head, no need to replace mounting head

2. Supports sizes within 03015~55mm and 100mm

3. The world's top mounting speed among products of the same level, 46.000 CPH (under the best conditions of our company)

4. One platform, combining three models of YS12 series into one.

YAMAHA-YSM10 Features: Ultimate Host

1. High speed universal integrated mounting head

Using the same high-speed universal mounting head as high-end machines, it can correspond to small chips ranging from 03015 (0.3mmx0.15mm) to large components ranging from 55mm × 100mm, with a wide range of corresponding capabilities

2. The world's top mounting speed among products of the same level

By adopting a new servo system nurtured by high-end models and lightweight and compact universal mounting head technology, the mounting capacity of traditional models has been increased by 25%, achieving the world's fastest mounting capacity of 46000CPH for products in the same class.

3. A platform

Integrate the YS12 with both flexibility and productivity, the simplified version of YS12P, and the YS12-F3 model with excellent component matching capabilities onto the same platform. While maintaining its small size and high speed, it has achieved excellent component matching capabilities and provided entry-level alternative solutions.

SDP

YAMAHA-YSM10 Parameters

Yamaha SMT Machine - YSM10
Object substrate size	L510 x W460 mm ～ L50 x W50 mm
	※ For substrates exceeding L510, please consult separately
Mounting ability	HM mounting head (10 suction nozzles) specifications	HM5 mounting head (5 suction nozzles) specifications
	46000CPH (under the best conditions of our company)	31000CPH (under the best conditions of our company)
Mountable components	03015~W55 x L100mm (segmentation recognition if exceeding W45mm), height below 15mm
	If the component height exceeds 6.5mm or the component size exceeds 12mm x 12mm, a multi vision camera (optional configuration) needs to be selected
Mounting accuracy	±0.035mm (±0.025mm) Cpk≧1.0 (3σ)
Our company's best conditions (when using evaluation standard components)
Number of installable feeders	Fixed feeder rack: up to 96 (converted to 8mm tape)
	Tray: 15 types (maximum when equipped with sATS15), JEDEC）
Power specifications	Three phase AC 200/208/220/240/380/400/416V ± 10% 50/60Hz
Supply gas source	0.45MPa or above, clean and dry
External dimensions	L1,254 x W1,440 x H1,445mm
Main body weight	About 1270kg
Specifications and appearance are subject to change without prior notice.

YAMAHA YSM20 regular mounting product

1. LED lights: LED bulb lights, LED spotlights, LED car lights, LED ceiling lights, etc.

2. Lighting category: LED wall wash light strips, digital tubes, barrier tubes, LED rainbow lights, etc.

3. Screen type: LED surface mount display screen, LED module, etc.

4. High power LED lights: LED tunnels, street lamps, spotlights, car lights, LED desk lamps, 1W-3W flat, spherical, bimodal LEDs, etc.

5. Electronic products: computer motherboards, MP3 motherboards, power motherboards, LED light power boards, LED power supplies, LED drivers, LED modules, LED displays, etc.

6. Suitable for high-end technology products such as LED products and drones within the size of 510X460MM
