Selling second-hand Panasonic surface mount machine NPM-D high-speed module "latest in store"

Used Panasonic NPM-D, Panasonic NPM-D Brief Introduction:

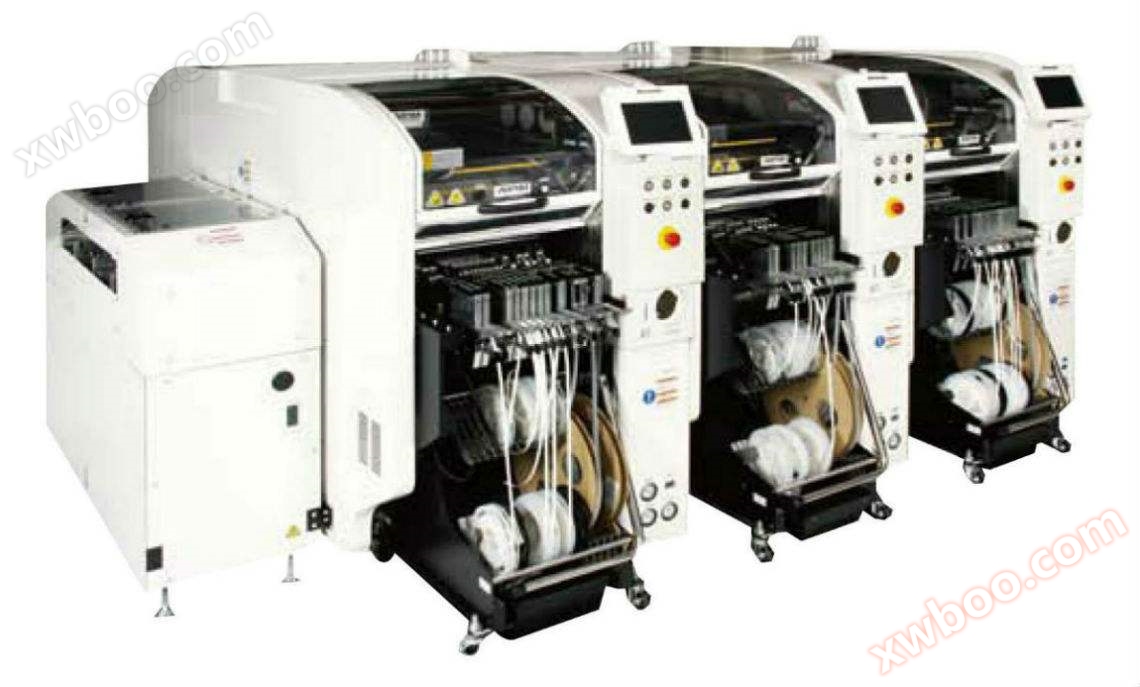

“Panasonic SMT machineNPM-D, Panasonic NPM-D Module High speed SMT Machine "Product Introduction: 1. High functionality and high reliability Inheriting Panasonic's practical installation features DNA: * * Compatible with CM Series hardware, it has the ability to correspond to 0402-100 * 90mm components with functions such as component thickness inspection and substrate bending inspection, which can greatly improve the quality of SMT and fully meet customers' needs for high difficulty processes such as POP and flexible substrates. 2. Simple operation with user-friendly interface design, model switching instructions can greatly shorten the exchange operation time of the rack trolley. Welcome to learn about" Panasonic NPM-D, Panasonic NPM-D Module High speed SMT Machine "

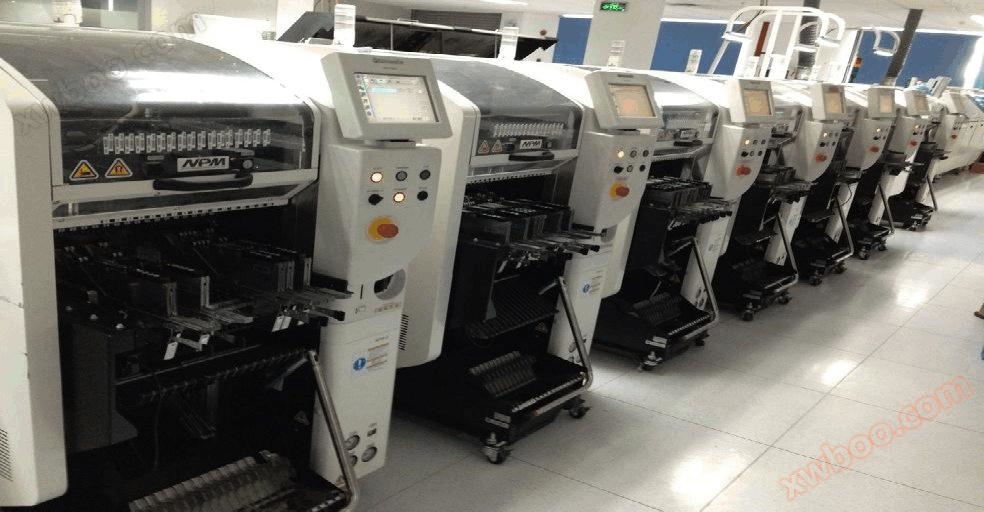

Used Panasonic NPM-D SMT Machine, Panasonic NPM-D Module High Speed SMT Machine Details:

Used Panasonic NPM-D SMT machine, Panasonic NPM-D module high-speed SMT machine

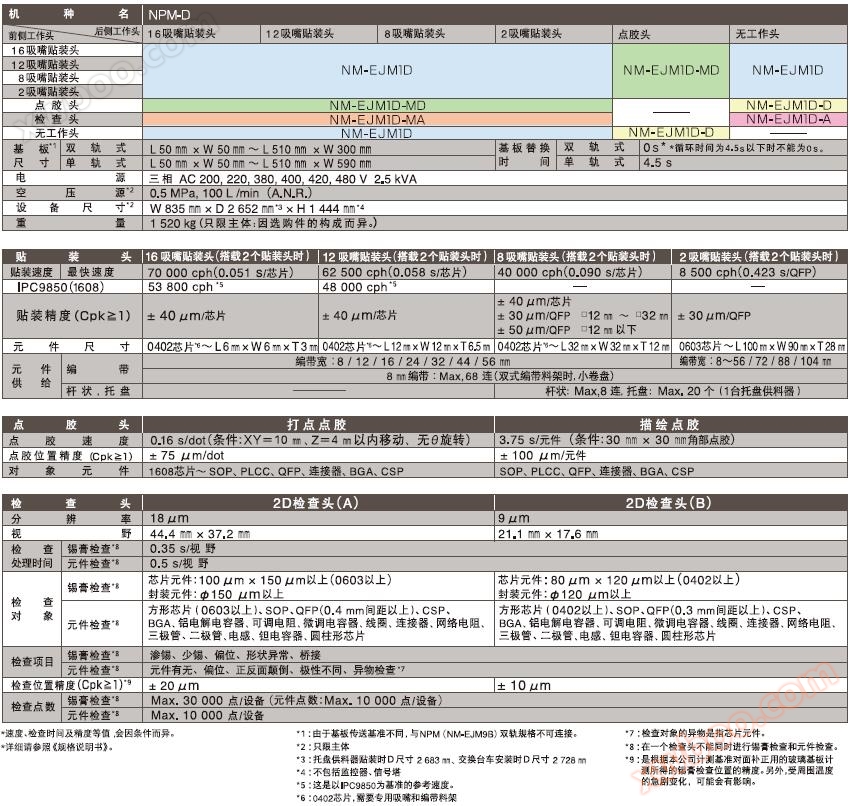

1、 Panasonic Surface Mount Machine NPM-D Product Parameters:

Model Name: NPM-D (Panasonic Modular Mounter, Panasonic High Speed Mounter, Panasonic Modular Mounter)
Substrate size
Double track: L50mm × W50mm~L510mm × W300mm
Monorail type: L50mm × W50mm~L510mm × W590mm
Substrate replacement time
Dual track: 0 seconds * * cycle time cannot be 0 seconds when it is less than 4.5 seconds.
Monorail type: 4.5s
Power supply: three-phase AC200220380400420480V2.5kVA
Air pressure source * 2: 0.5MPa, 100L/min (A.N.R.)
Equipment size * 2: W835mm × D2652mm * 3 × H1444mm * 4
Weight: 1520kg (only applicable to the main body: varies depending on the composition of the optional parts). ）

16 nozzle mounting head: (when equipped with 2 mounting heads)
Quick installation speed: 70000cph (0.051s/chip)
IPC9850：53800cph*5
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip
Component size (mm) 0402 chip * 6~L6 × W6 × T3
Component supply tape width: 8/12/16/24/32/44/56mm
8mm ribbon: Max, 68 pieces (small reel when using a double ribbon rack)

12 nozzle mounting head: (when equipped with 2 mounting heads)
Quick installation speed: 62500cph (0.058s/chip)
IPC9850：48000cph*5
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip
Component size (mm) 0402 chip * 6~L12 × W12 × T6.5
Component supply tape width: 8/12/16/24/32/44/56mm
8mm ribbon: Max, 68 pieces (small reel when using a double ribbon rack)

8 nozzle mounting heads: (when equipped with 2 mounting heads)
Fastest mounting speed: 40000 cph (0.090 s/chip)
Mounting accuracy (Cpk ≥ 1): ± 40 μ m/chip, ± 30 μ m/QFP 12mm? 32mm, ± 50 μ m/QFP below 12mm
Component size (mm) 0402 chip * 6~L32 × W32 × T12
Component supply tape width: 8/12/16/24/32/44/56mm
8mm ribbon: Max, 68 pieces (small reel when using a double ribbon rack)
Rod shaped: Max, 8-connected, tray: Max.20 pieces (1 tray feeder)

2 nozzle mounting heads: (when equipped with 2 mounting heads)
Quick installation speed: 8500cph (0.423s/QFP)
Mounting accuracy (Cpk ≥ 1): ± 30 μ m/QFP
Component size (mm) 0603 chip~L100 × W90 × T28
Component supply tape coding bandwidth: 8? 56/72/88/104mm
8mm ribbon: Max, 68 pieces (small reel when using a double ribbon rack)
Rod shaped: Max, 8-connected, tray: Max.20 pieces (1 tray feeder)

2、 Panasonic SMT NPM-D Product Features:
1. Achieve productivity per unit area of height through a comprehensive installation production line (printing&installation&inspection)
Customers can freely choose the actual production line
Implementing overall management of production lines, workshops, and factories through system software

2. High functionality and high reliability
Inheriting Panasonic's practical features DNA: * * Compatible with CM Series hardware
Capable of corresponding to 0402-100 * 90mm components with functions such as component thickness inspection and substrate bending inspection, it can significantly improve the quality of mounting and fully meet customers' needs for high difficulty processes such as POP and flexible substrates

3. Simple operation
Adopting a user-friendly interface design, the model switching indicator can significantly shorten the exchange operation time of the material rack trolley
*1: Due to different substrate transfer standards, it cannot be connected to the NPM (NM-EJM9B) dual track specification.
*2: Subject only
*3: When installing the tray feeder, the D size is 2683mm, and when installing the exchange trolley, the D size is 2728mm
*4: Excluding recognition monitors and signal towers
*5: This is the reference speed based on IPC9850.
*6: 0402 chip requires dedicated suction nozzle and material rack
*7: The foreign object of the inspection object refers to the chip component.
*8: Solder paste inspection and component inspection cannot be performed simultaneously in one inspection head.
*9: It is based on the accuracy of the solder paste inspection position measured on the glass substrate used for correction according to our company's measurement standards. In addition, rapid changes in the surrounding temperature may have an impact.
*The installation speed, inspection time, and accuracy may vary depending on the conditions.
*Please refer to the 'Specification Manual' for details.

We provide year-round supply of "all-new Panasonic NPM-D SMT machine, Panasonic NPM-D module high-speed SMT machine", as well as second-hand "Panasonic NPM-D SMT machine, Panasonic NPM-D module high-speed SMT machine". We also rent and lease "Panasonic NPM-D SMT machine, Panasonic NPM-D module high-speed SMT machine" and offer SMT assembly line services for Panasonic/Siemens and other brands. Please feel free to contact us for inquiries.
