Stainless steel butterfly valve, stainless steel clamp butterfly valve

Product Details

Stainless steel butterfly valve, stainless steel clamp butterfly valve

Valve type: Stainless steel butterfly valve
Valve models: D71X, D371X
Size specification: DN40-600mm
Installation form: clamp type, flange type
Pressure rating: 0.6-1.6MPa
Main materials: cast steel WCB, carbon steel CS, stainless steel 304, 316, etc,
Product nameplate: Pudie

Overview of Stainless Steel Butterfly Valves and Stainless Steel Clamp Butterfly Valves：

The butterfly plate of the stainless steel butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, with a rotation angle between 0 ° and 90 °. When it rotates to 90 °, the valve is fully open.

The clamp type butterfly valve has a simple structure, small volume, and light weight, consisting of only a few parts. And it can be quickly opened and closed by simply rotating 90 °, with simple operation, and the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance for the medium to flow through the valve body. Therefore, the pressure drop generated by this valve is very small, and it has good flow control characteristics.

Stainless steel butterfly valve, stainless steel clamp butterfly valve product features：

1. Small and lightweight, easy to disassemble and repair, and can be installed in any position.
2. Simple and compact structure, with rapid opening and closing of 90 ° rotation.
3. Small operating torque, effortless and lightweight.
4. The flow characteristics tend towards a straight line, with good regulation performance.
5. The number of opening and closing tests can reach tens of thousands, with a long lifespan.
6. Achieve complete sealing and zero gas test leakage.
7. Selecting different component materials can be applied to multiple media.

Stainless steel butterfly valve, stainless steel clamp butterfly valve technical specifications:

Nominal meridian DN (mm)	Clamp type 50-300		Flange type 50-2000
Nominal Pharmacological PN (MPa)	0.6	1.0	1.6
Sealing test (MPa)	0.66	1.1	1.76
Strength test (MPa)	0.9	1.5	2.4
Applicable Temperature	Nitrile rubber: -40 ℃~90 ℃ Fluororubber: -20 ℃~200 ℃
Applicable Medium	Water, air, natural gas, oil products, and weakly corrosive fluids
leakage rate	Compliant with GB/T13927-92 standard
Drive Type	Worm gear transmission, electric, pneumatic, hydraulic

Main component materials:

Part Name	material
valve body	304、WCB、QT450-10、HT200、HT250
butterfly valve disc	304、WCB、QT450-10、HT200、HT250
Valve shaft	2Cr13
sealing ring	Nitrile oil resistant rubber
filler	flexible graphite
Manufacturing Standard	GB/T 122387-89
Flange Standard	GB9113-2000、GB17241.6-1998
Structural length standard	GB12221-89
Inspection Standard	GB/T 13927-92

Stainless steel butterfly valve, stainless steel clamp butterfly valve picture:

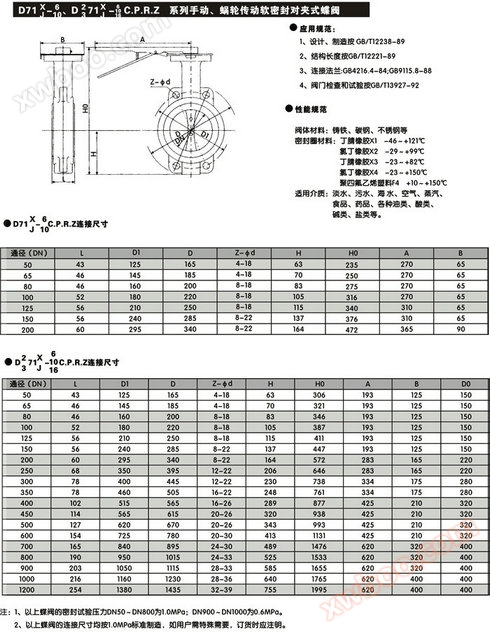

Stainless steel butterfly valve, stainless steel clamp butterfly valve technical parameter size diagram:

After sales ordering:
1: To inquire about ordering products, please provide the product category, model, specifications, material type, pressure rating, technical requirements, and also provide old product drawings to customer service personnel for accurate quotation and supply cycle,
2: Pudie Company implements the three guarantees of product quality for all products sold, including return, replacement, and warranty during the warranty period,
3: Product parameters, dimensions, and images are for user selection reference only. If there are special requirements, please raise them in a timely manner. All product quotations are valid for one month (from the date of quotation), please confirm and communicate in a timely manner
