Vacuum butterfly valve, GI high vacuum butterfly valve

Product Details

Vacuum butterfly valve, GI high vacuum butterfly valve

Valve type: Vacuum butterfly valve
Valve model: GI
Size specification: DN32-400mm
Installation form: French clamp type
Pressure rating: 1.0-1.6MPa
Main materials: cast steel WCB, carbon steel CS, stainless steel 304, 316, etc;
Product nameplate: Pudie

GI type high vacuum butterfly valve is used to connect or cut off the airflow in vacuum pipelines. The suitable medium for high vacuum butterfly valves is pure air and non corrosive gases.

Vacuum butterfly valve, GI high vacuum butterfly valveFeatures:
1. The bearing adopts self-lubricating bearings with low friction resistance.
2. The butterfly seal ring can be replaced without disassembling the valve from the pipeline.
3. This valve can block the medium in both directions, achieving reliable sealing and zero leakage in both directions.
4. The shaft seal adopts a special structure with automatic compensation to block the connection between the external atmosphere and the pipeline, thereby ensuring the vacuum degree of the pipeline.

Vacuum butterfly valve, GI high vacuum butterfly valveMaterial of parts:
Valve body, valve cover, valve stem: carbon steel or stainless steel
Sealing components: rubber, fluororubber

Vacuum butterfly valve, GI high vacuum butterfly valve technical parameters:

Scope of application (Pa)	105~1.3×10-5
Valve leakage rate (Pa.L/S)	≦1.3×10-6
Medium temperature (℃)	-25~80(NBR) -30~150(PTFE)
Installation location	Any
Flange standard	JB919； GB6070

Main Material List:

NO.	PART NAME	MATERIAL
1	Body Body	A351 Gr. CF8
2	Valve disc/ISC	A351 Gr. CF8
3	Valve stem/STEM	A351 Gr. CF8
4	Valve Seat/TEFLON SEAT	PTFE

GI manual high vacuum butterfly valveAdopting standards:

design and manufacturing	flange connection	Inspection and Testing
JB/T4079 91	JB/T919 GB/T6070	JB/T1079 JB/T6446

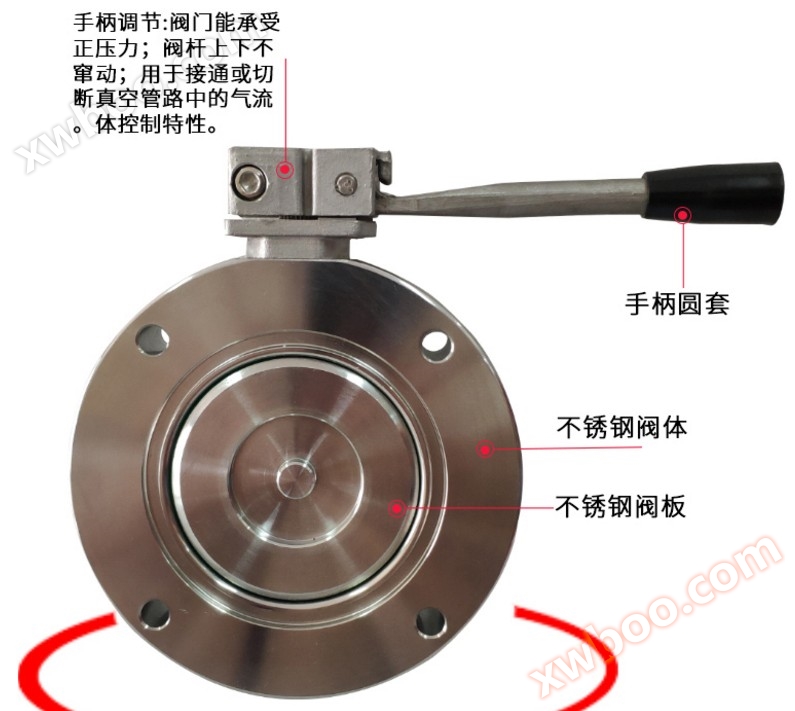

Vacuum butterfly valve, GI high vacuum butterfly valve picture:

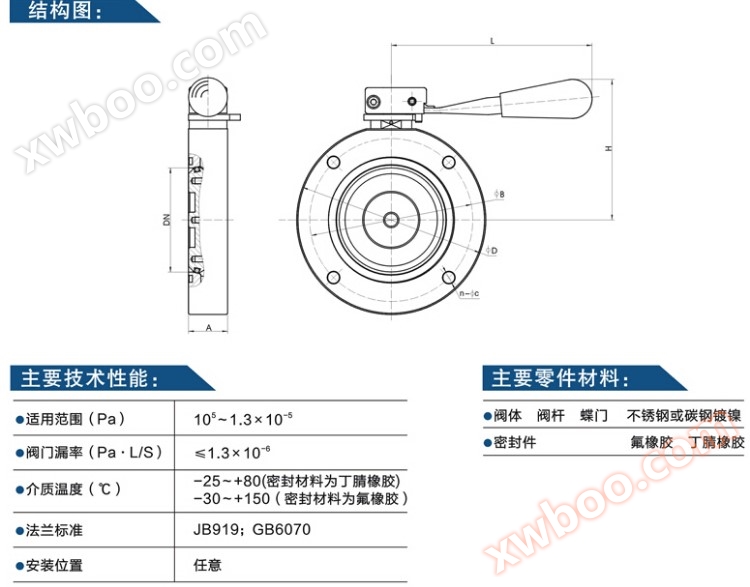

Vacuum butterfly valve, GI high vacuum butterfly valve size diagram:

After sales ordering:
1: To inquire about ordering products, please provide the product category, model, specifications, material type, pressure rating, technical requirements, and also provide old product drawings to customer service personnel for accurate quotation and supply cycle;
2: Pudie Company implements the three guarantees of product quality for all products sold, including return, replacement, and warranty during the warranty period;
3: The product parameters, dimensions, and images are for user selection reference only. If there are special requirements, please raise them in a timely manner. All product quotations are valid for one month (from the date of quotation), please confirm and communicate in a timely manner.
