Tobacco online near-infrared moisture analyzer

Shandong TuodiTobacco online near-infrared moisture analyzerTechnical parameter description

1、 Basic parameters

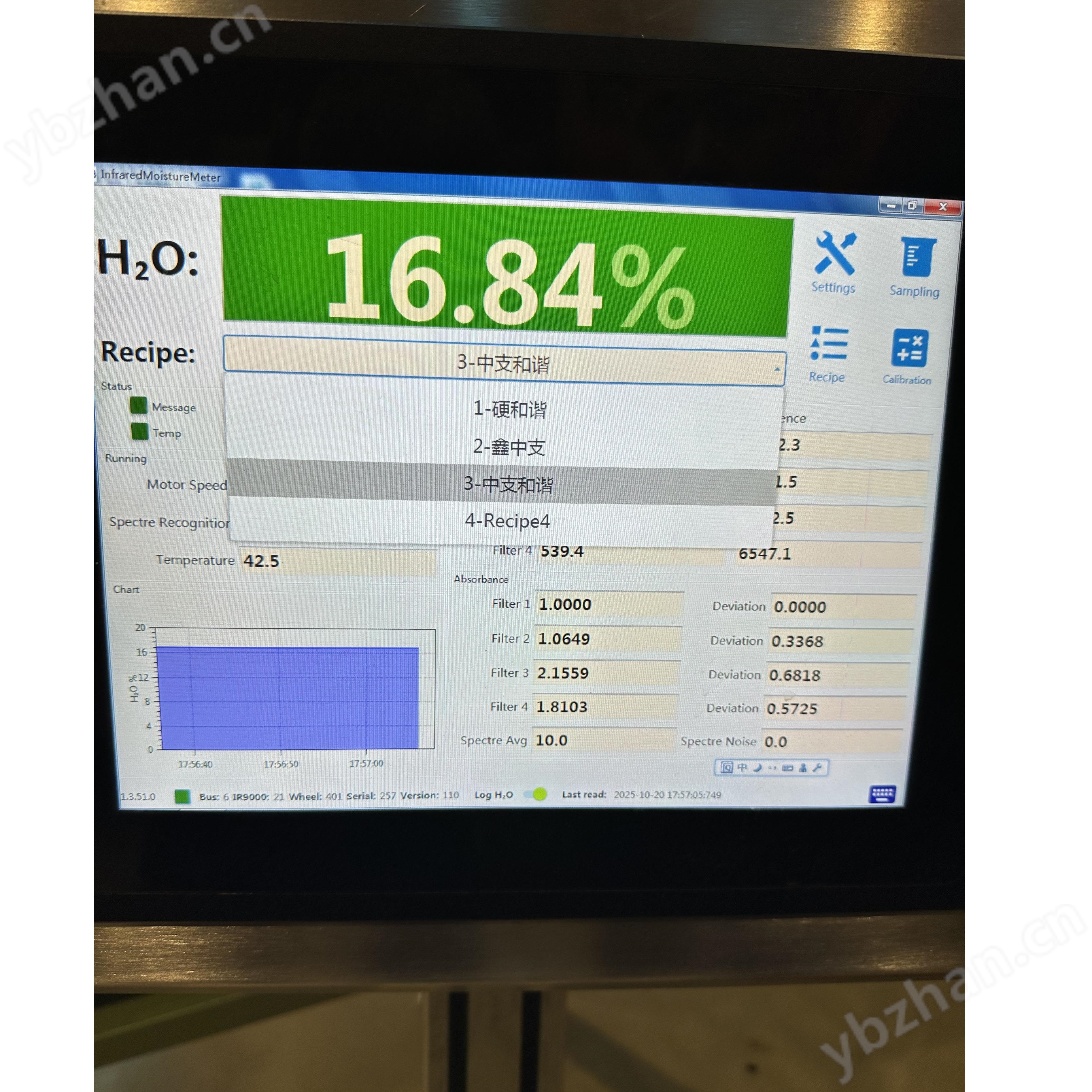

Model: IR 9200 series (including HMI human-machine interface)

Measurement range: 0% -95% (solid materials)

Accuracy: ± 0.02-0.1% (typical operating conditions)

Working distance: 180mm-500mm (adjustable ± 100mm)

Spot detection area: circular area with a diameter of ≥ 60mm

Response time: 0.01 seconds (continuous detection mode)

Detection channels: ≥ 50 detection channels

Probe material: stainless steel material

Height compensation: not affected by changes in material thickness

Automatic correction and compensation function for external light and color changes.

2、 Optical system

Filtering technology: 4-8 wavelengths available

Filter accuracy: Center wavelength error ≤± 0.0002 μ m

Reflective mirror: coated with a cold mirror film layer (far-infrared cutoff rate ≥ 99%)

Light source lifespan: ≥ 20000 hours (specially designed light bulb)

3、 Environmental adaptability

Working temperature: Probe 0 ℃ -55 ℃ (special high temperature can be configured with air cooling system)

Storage temperature: -20 ℃ -70 ℃

Humidity range: 5% -95% RH (non condensing)

Protection level: IP65 (probe)/IP54 (control box)

4、 Electrical parameters

Power requirement: Can be configured with 220V or 24VDC ± 5%, 1.3A (maximum 2.0A)

Signal output: 4-20mA (three wire system), optional Ethernet (Modbus TCP/IP), PROFINET and other communication options

5、 Mechanical characteristics

Probe size: 300.5mm (length) × 185mm (width) × 231.6mm (height)

Weight: 7kg (including installation bracket)

Cable length: standard 10m (maximum extension up to 50m)

Installation method: bracket fixation/mechanical arm linkage

6、 Fault self diagnosis function

Window contamination detection: It can automatically detect the degree of lens contamination, and the software provides warnings in green, yellow, and red colors

Cleaning system: 120L/min clean air blowing (0.3MPa)

Core hardware disputes: motor, light bulb, power supply, temperature, signal (filter) Core components such as... can detect their operating status

7、 Calibration and maintenance

Calibration method: Single point/multi-point automatic calibration (supports offline calibration)

Diagnostic functions: Optical path self-test, component aging warning, communication fault location

Maintenance cycle: 5 years for filter/3 years for bulb (typical operating conditions)

Component replacement: Quick release light source module (no need for optical path calibration)

8Tobacco online near-infrared moisture analyzerTypical Applications

Metallurgical industry: sintering mixture, pellet ore, steelmaking raw materials

Chemical industry: PVC powder, polymer resin, nylon particles

Tobacco processing: leaves, leaf shreds, finished tobacco ......

(Technical parameters are based on IR9200, actual configuration may be adjusted due to application scenarios, please refer to the data sheet provided by the manufacturer for details)
