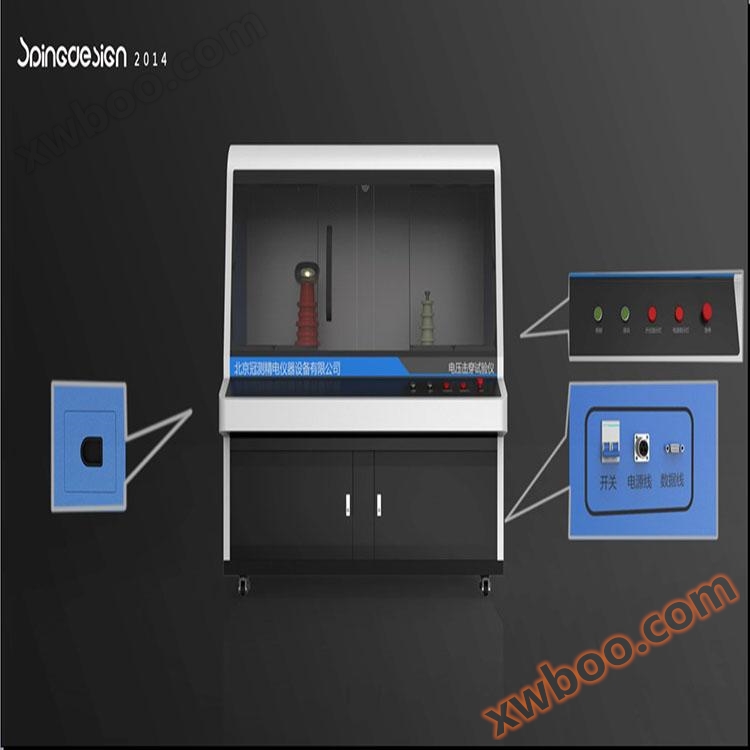

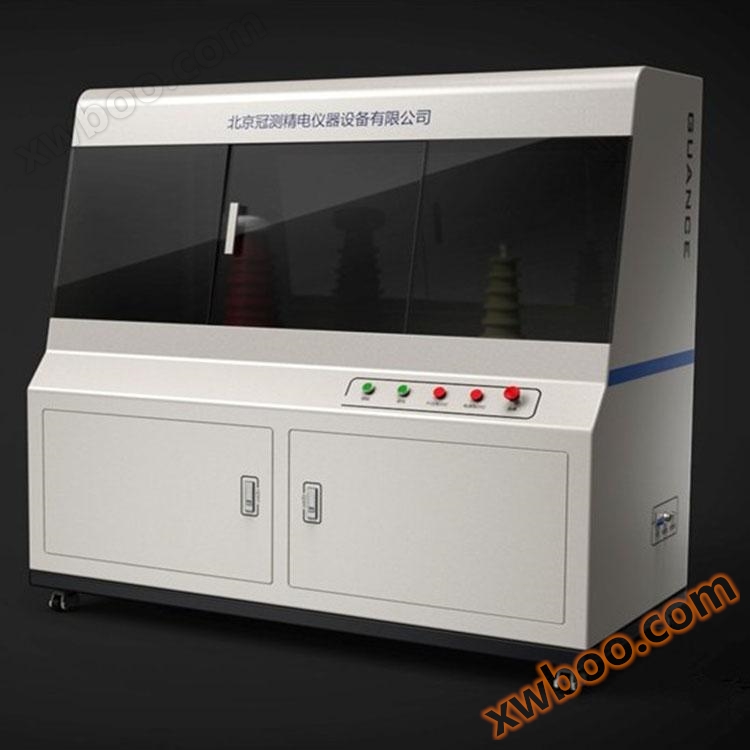

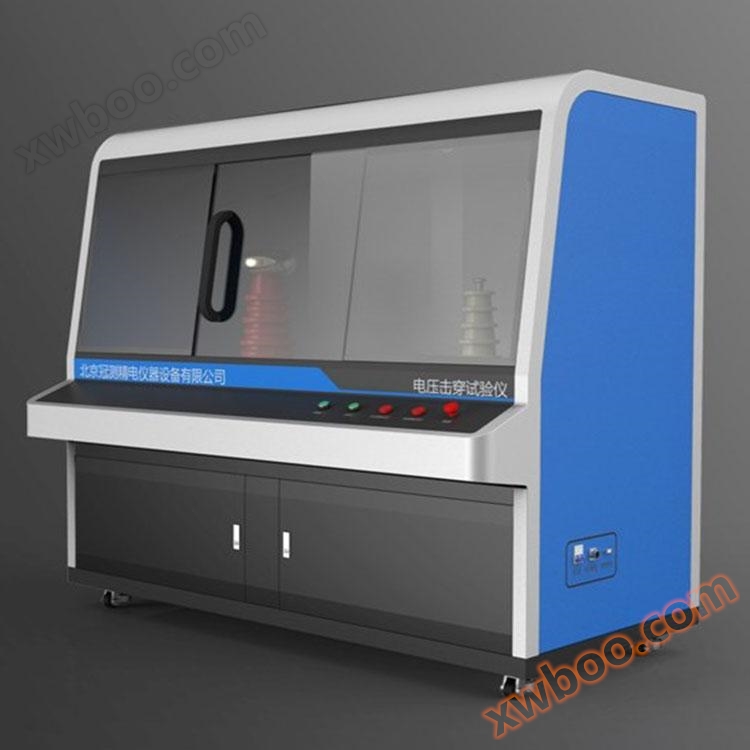

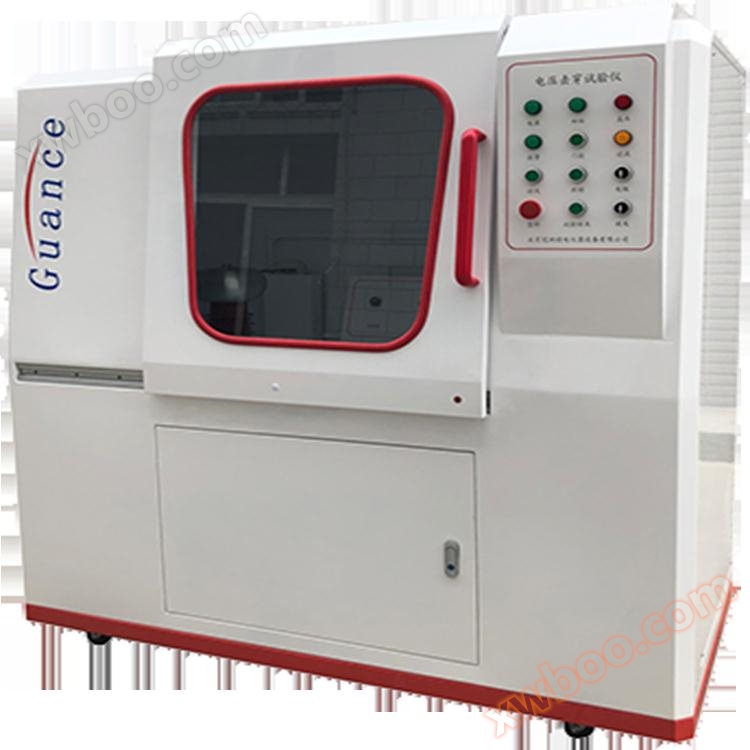

Main configuration: 1. Host unit 2. Discharge device 1 set 3. Computer 1 set 4. Printer 1 set 5. Control software 1 set 6. Test electrode 1 set 7. Fuel tank 1 set 8. Test bench 1 set 9. Instruction manual 1 copy 10. Certificate of conformity 1 copy 11. Packing list 1 copy Preparation before test: 1. Connect power cord, data cord, and grounding wire 2. Check if power cord, data cord, and grounding wire are connected properly 3. After connection, turn on the power main switch and preheat for 15 minutes 4. Open the computer Windows system, double-click the shortcut icon of the voltage breakdown tester software to enter the test operation interface.

Structural principle: 1. It mainly consists of a boosting system (high-voltage transformer), Siemens PLC control system, electrodes, oil tanks, electrode positioning frames, computer data processing system, software, etc; 2. Computer - Siemens PLC Control System - Voltage Regulating Device - Step up Transformer - Sample; 3. High voltage transformers mainly generate the DC voltage required for the sample; 4. A voltage regulator is used to regulate the input voltage of a step-up transformer to generate the required input voltage for high voltage; 5. Voltage measurement is mainly measured from the measuring end of the high-voltage transformer, which is linear with the measuring end of the high-voltage transformer; 6. The discharge system will automatically discharge after the experiment is completed to avoid potential harm to human health caused by discharge;
