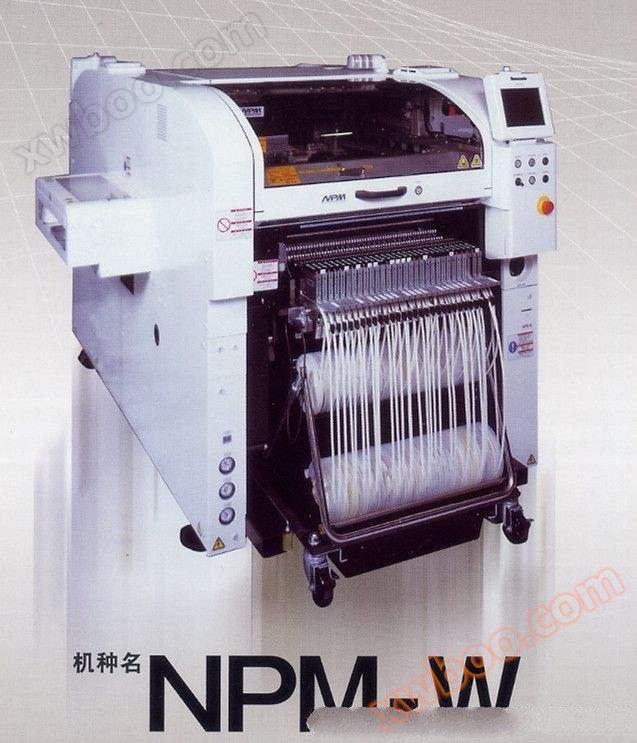

Used Panasonic NPM-W high-speed surface mount machine

Online Consult

Overview

Product Details

Realize high productivity per unit area on the integrated production line

Install and inspect a coherent system to achieve efficient and high-quality production

Can correspond to large substrates and large components

Can accommodate large substrates of 750 × 550mm, and the component range can be expanded to 150 × 25mm

Dual track installation achieves productivity per unit area of height (select specifications)

According to the production substrate, independent installation, alternating installation, and mixed installation methods can be selected

Front mounted head/Rear mounted head			16/12/8/3 nozzle mounting head	dispensing head	No actual installation head
16 nozzle mounting head			NM-EJM2D	NM-EJM2D-MD	NM-EJM2D
12 nozzle mounting head
8 nozzle mounting head
3 nozzle mounting head
dispensing head			NM-EJM2D-MD	-	NM-EJM2D-D
Check the head			NM-EJM2D-MA		NM-EJM2D-A
No actual installation head			NM-EJM2D	NM-EJM2D-D	-
Substrate size	Monorail * 1	Overall installation	L50mm×W50mm~L750mm×W550mm
		Two positions for actual installation	L50mm×W50mm~L350mm×W550mm
	Double track * 1	Monorail transmission	L50mm×W50mm~L750mm×W510mm
		Dual track transmission	L50mm×W50mm~L750mm×W260mm
Substrate replacement time	Monorail * 1	Overall installation	4.4 seconds (when no components are mounted on the reverse side of the substrate)
		Two positions for actual installation	2.3S (when no components are mounted on the back of the substrate)
	Double track * 1	Monorail transmission	4.4 seconds (when no components are mounted on the reverse side of the substrate)
		Dual track transmission	0S * * cycle time cannot be 0s when it is less than 4.4s
power supply			Three phase AC220220380420480V 2.5kVA
Air pressure source * 2			0.5MPa，200L/min（A.N.R）
Equipment size * 2			W1280mm3×D2332mm4×H1444mm*5
weight			2250kg (theme only: varies depending on the composition of the optional item)
