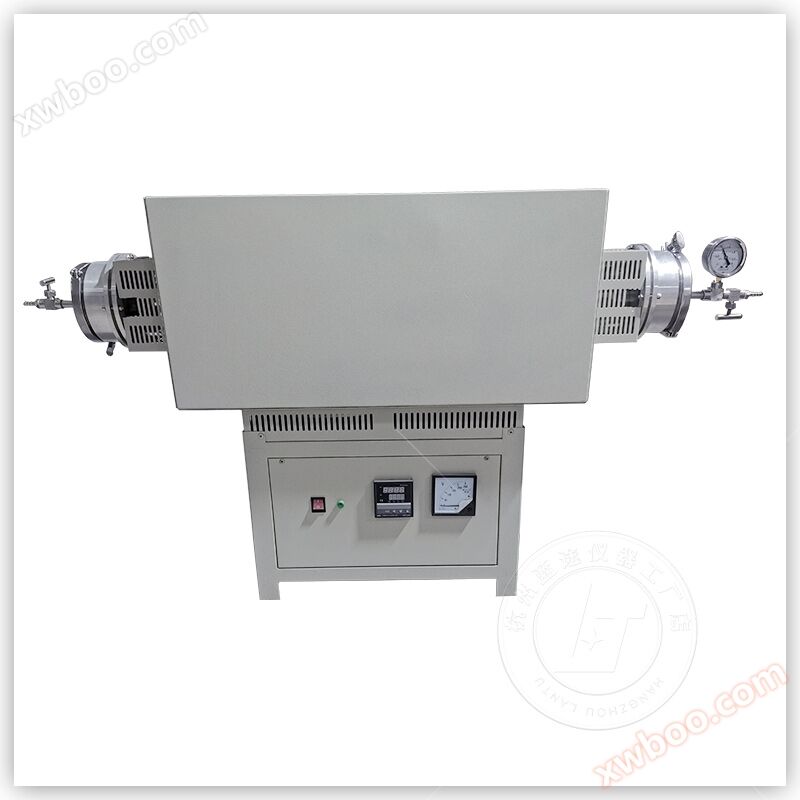

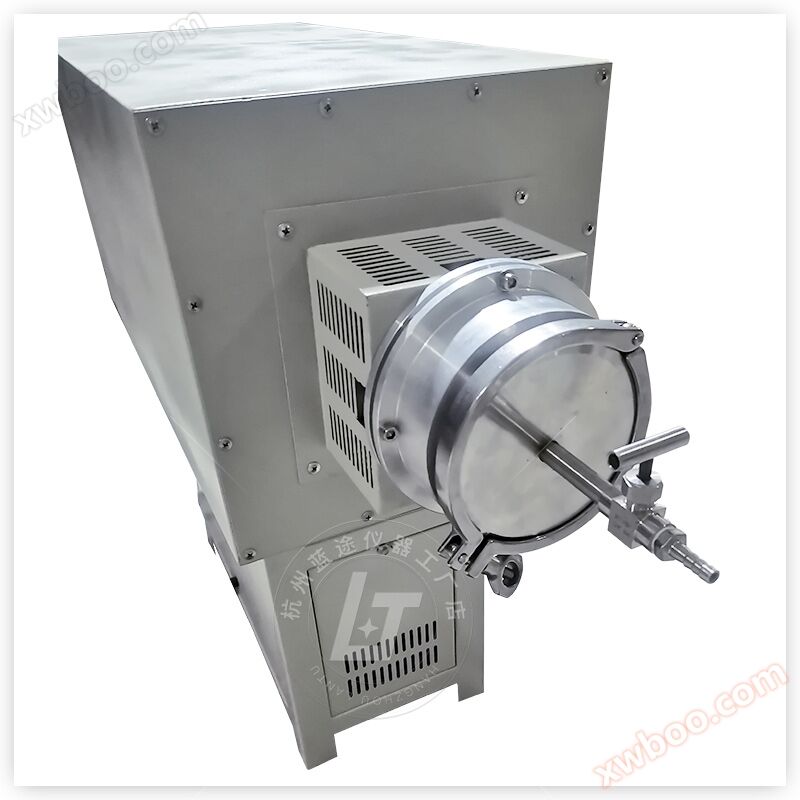

Vacuum atmosphere tube furnace ZKQF-10-40 (1000 ℃)

Product Introduction and Parameters:

The tube furnace is a new type of integrated atmosphere tube furnace with high performance and energy saving developed using advanced technology,The vacuum atmosphere tube furnace is a new type of high-performance and energy-saving integrated vacuum tube electric furnace developed using advanced technology. It can be used in various tube furnace types such as single tube, double tube, horizontal, openable, vertical, single temperature zone, double temperature zone, and triple temperature zoneThe equipment is mainly used for experiments and small-scale production in scientific research institutions, universities, industrial and mining enterprises, etc. It is safe and reliable, easy to operate, has high temperature control accuracy, good insulation effect, wide temperature range, high uniformity of furnace temperature, multiple temperature zones, and can pass through the atmosphere.
Main functions and features:
1. Can be evacuated and can be filled with various gases such as hydrogen, oxygen, nitrogen, argon, etc;
2. The furnace is made of high-purity alumina polycrystalline fiber material, which has good insulation performance, durability, high tensile strength, no impurities, high purity, and significant energy-saving effect;
3. Heating element adopts: Cornell 1800 type silicon molybdenum rod
4. Leakage protector, over temperature alarm, ensuring safe use of equipment

The control instrument adopts a fully automatic multi band Yudian programmable instrument with adjustable heating rate, and the PID+SSR system synchronizes and coordinates control, making it possible to achieve consistency and reproducibility in any experiment or test. It has automatic constant temperature and time control functions, and is equipped with a second level over temperature automatic protection function. The control is reliable and safe to use. The controller is located under the box and is integrated. The electrical connection between the furnace body and the temperature controller has been completed before leaving the factory. It can be used when the power is turned on. Suitable for element analysis, carbon and sulfur determination, material ash powder, high-temperature sintering, quenching, annealing, tempering of small steel parts, as well as crystal, jewelry, mirror film and other production enterprises in colleges, research institutions, laboratories, and other ideal high-temperature electric furnaces.

Technical parameters:

The furnace is made of high-purity alumina polycrystalline fibers, which are wear-resistant and pressure resistant, have strong weight-bearing ability, are resistant to rapid cooling and heating, have good corrosion resistance, do not collapse, crystallize, fall slag, are pollution-free, and have a long service life.

The control system adopts 30 segment programmable operating system microcomputer intelligent adjustment technology, with PID regulation, automatic control, and self-tuning functions. It can program various heating, constant temperature, and cooling programs with high temperature control accuracy.

The protective device adopts independent protection: (over temperature, over voltage, over current, breaking, power outage, leakage, short circuit, etc.).

In addition, our independently developed control software can be used to connect electric furnaces with computers, enabling remote control of single or multiple electric furnaces, starting and stopping of electric furnaces, setting temperature control programs, storing temperature control programs, viewing historical curves, printing historical curves, etc.

Comparison table of technical parameters for the same series of tube furnaces

Various specifications can be customized according to requirements
