XAU-X fluorescence spectrometer, coating thickness gauge, film thickness gauge

NegotiableUpdate on 02/16

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

XAURoHS analysis for detecting harmful elements

Product Details

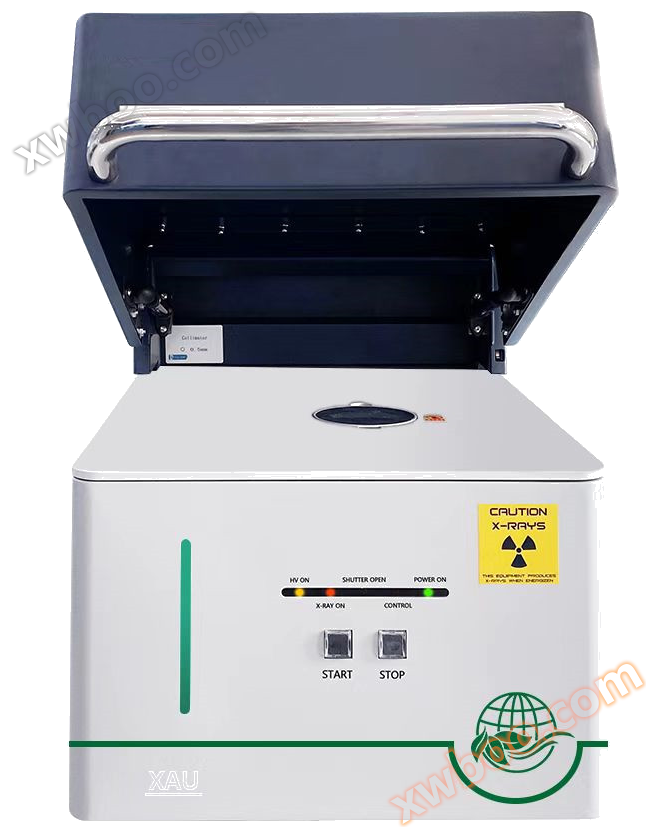

	XAU
RoHS analysis	Harmful element detection,RoHS（As、Pb、Hg、Cd、Cr、Br）、卤素
Coating detection	optional
EFP algorithm	standard configuration
software operation	Humanized closed software, automatic fault diagnosis, prompt correction, and operation steps to avoid misoperation
detector	Si Pin semiconductor detector
X-ray equipment	Micro focused X-ray tube
collimator	Φ5mm
Micro light focusing technology	Recently measured spot spread 10%
optical filter	Integrated embedded multi filter switching device
Sample observation	1/2.7 "color CCD with zoom function
Focusing method	High sensitivity lens, manual focusing
magnification	optics38-46X， Digital amplification 40-200 times
Instrument size	470mm550mm480mm
Sample chamber height	215mm
Sample stage movement	none
instrument weight	45KG
Other attachments	A set of computer, printer, accessory boxRoHS standard sheet
X-ray standard	DIN ISO 3497, DIN 50987, and ASTM B 568

1、 Product advantages:

XAU is a highly integrated spectroscopic analyzer developed for RoHS and halogen detection and analysis;

Widely used for quality control of various products, incoming material inspection, and measurement of production process control;

1. assemblySi PIN semiconductor detector greatly improves the detection range and accuracy；

2. Humanized closed software, automatic fault diagnosis, prompt correction, and operation steps to avoid misoperation;

3. RoHS、 Halogen harmful element detection, with a minimum detection limit of up to 2ppm;

4. Equipped with low light concentration technology, the diffusion of the nearest distance measuring spot is less than10%；

5. Adopting a high-definition camera positioning system, the sample observation is clear and the positioning is accurate;

6. The highly integrated modular design of core components, compact structure, avoids mutual electromagnetic interference, improves the detection limit of the instrument, and reduces the failure rate of the instrument;

7. Bottom illuminated design, fast sample testing;

8. one-clickRoHS testing, automatically identifying material categories and matching programs, achieving one click analysis.
