YY0461-2003 Catheter Leakage and Compliance Tester

NegotiableUpdate on 01/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The YY0461-2003 catheter leakage and compliance tester adopts the principle of positive pressure testing and contains dual flow sensors. According to the compliance test specified in Appendix F of the YY0461-2003 standard, it is necessary to ensure that the leakage is less than 1ml/min before testing compliance. It can achieve leakage values below 1ml/min and is suitable for quantitative measurement of catheters used in anesthesia machines and ventilators.

Product Details

YY0461-2003 Catheter Leakage and Compliance TesterThe principle of positive pressure testing is adopted, which includes dual flow sensors. According to the compliance test specified in Appendix F of YY0461-2003 standard, it is necessary to ensure that the leakage is less than 1ml/min before testing compliance. The leakage value below 1ml/min can be developed and produced, which is suitable for quantitative measurement of anesthesia and ventilator catheters.

■ Product features

·Embedded high-speed microcomputer chip control, simple and efficient human-computer interaction interface, providing users with a comfortable and smooth operating experience

·7-inch high-definition color LCD screen, real-time display of test data and curves

·Overvoltage safety protection, power-off memory and other safety designs ensure system stability during the testing process

·The interface between Chinese and English can be freely switched

·Energy saving and environmentally friendly design, beautiful appearance, ultra-low power supply meets national energy-saving and environmental protection requirements

·Configure a standard RS232 communication port to facilitate external connection and data transmission between the system and the computer

·Energy saving and environmentally friendly design, beautiful appearance, ultra-low power supply meets national energy-saving and environmental protection requirements

·The design concept of standardization, modularization, and serialization maximizes the satisfaction of users' personalized needs

·The equipment adopts high-precision electronic flow controller to achieve precise control of gas flow rate

·Both pressure and time can be preset. Simply enter the numerical value to enter the test mode

·The device comes with a powerful data storage function, capable of storing over 50000 pieces of data

·Automatic result judgment, printable test data

·Based on the flat design concept, the UI interface has been redesigned to provide users with a more concise, efficient, and comfortable operating experience

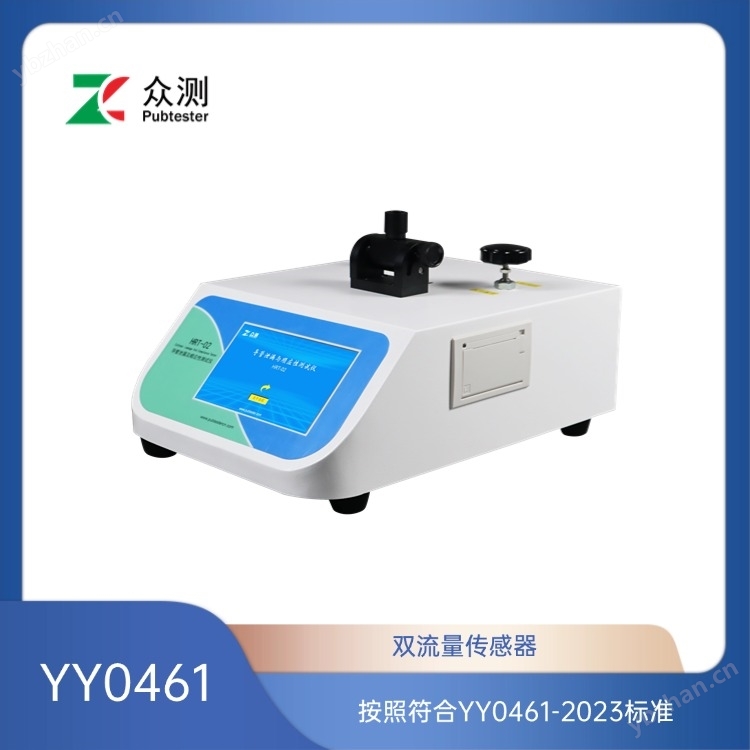

YY0461-2003 导管泄漏及顺应性测试仪

YY0461-2003 Catheter Leakage and Compliance Tester

■ Technical parameters

project	indicator
pressure range	0～20kP
margin of error	Not greater than ± 1%
flow range	0-500ml/min
holding time	0-60min
air supply pressure	0.4MPa~0.7MPa (gas source to be provided by the user)
air source interface	Φ 8mm polyurethane tube
host size	310mm(L)×370mm(W)×150mm(H)
Hydraulic tank size	215mm(L)×215mm(W)×240mm(H)
power supply	AC 220V 50Hz/110V 60Hz
Approximately net weight	25kg

■ Testing principle

The system adopts the principle of positive pressure testing, which is embedded by

Controlled by a high-speed microcomputer chip, connect the test sample to the hydraulic tank, input the required pressure and maintenance time for testing, start the test tube to apply pressure, check whether the entire component leaks, determine the results, and print the data.

■ Reference standards

YY 0461-2003

Test application

Basic applications*	Expand applications**
Attraction catheter	endotracheal intubation
Drainage catheter	Abdominal duct
Anesthesia catheter	Respiratory duct

■ Product configuration

Standard configuration: Host, touch screen, mini printer, customized related connectors

Note: The air source interface of this machine is a Φ 8mm polyurethane pipe; Gas source users should bring their own
