System Introduction:

thissystemAdopting a hierarchical distributed energy management systemImplement energy consumption analysis and management for this project.

system architectureThe system adopts a mixed architecture of B/S and C/S, and the usage information of different user permissions is integrated to achieve sub metering of electricity consumption, namely lighting, socketAir conditioning, motion controlSpecial useElectricity, etc，Realize divisionregionMonitoring of energy consumption data for seven categories of water, electricity, gas, fuel, external heat sources, external cooling sources, and renewable energy，Utilizing the Local Area Network of the Land Energy Management System，Implement data upload and command issuance,eachClass system flatTaiwanopen interfaceIt can share data with other systems.

System transmission method:

System transmission method: Various typescollectThe device passes throughRS485 Communication bus mode,And design and build a local area network,equipment acquisitionofnumberAccording to the upload to the server of the Energy Regulatory Center，Between systemsDocking:Through an open network from the power monitoring systeminterface(RS485 or RJ45) 0PC or MODBUS communicationIndependently obtain distribution high and low voltage system data through the protocol.

System Configuration

For more product information or pricing, please call our company.

Manager 138→ 9183 → 4587 （VX Same Number)

138 ❤ 9183 ❤4587

We are dedicated to serving you wholeheartedlyProvide comprehensive and professional solutions and product quotation services!!!

System configuration:

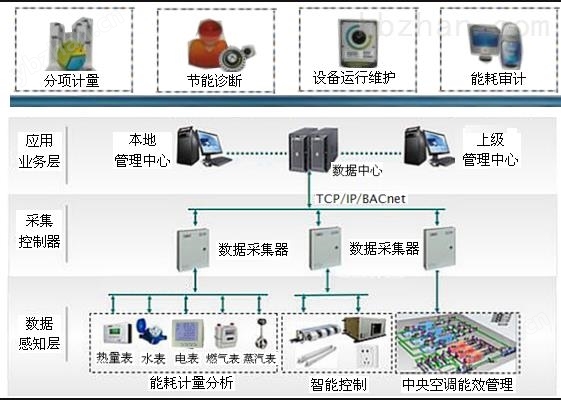

Application management layer +network layer +device layer

①Application management layer

Energy consumption monitoring server

Energy consumption monitoring host

UPSpower supply

printer

②network layer

energy consumptiondata collector /Communication Management Unit

Electric meter data collector CJQ

Water meter data collectorCJQ

2口YC-6002

4口YC-6004

8口YC-6008

16口YC-6016

③device layer

Multi functional remote transmission electric meter

Multi functional remote water meter

multi-functionalRemote heat transfer meter

multi-functionalRemote transmission gas meter

System functions:

numberAccording to the overall Kanban function，Display the energy consumption trend, real-time power trend, and demand of the entire data centertrendKey energy consumptionindicatoranddifferentConstant energy consumptioncall the policeWaiting for management information；

The system conducts energy consumption data statistics based on the dimensions, zones, sub items, and independent energy consumption units of this project. The data can be displayed separately by year, month, and day, and supports horizontal and vertical comparisons of energy consumption data for similar dimensions;

The energy consumption history curve query function allows the system to query historical energy consumption curves for different energy monitoring points, energy consumption units, and energy consumption dimensions. The data recording interval of the query data table supports minute level flexible configuration, and the historical trend curve and historical data report support export function;

The system has the function of managing energy consumption indicators. Based on the actual energy consumption of the project, personalized parameters are configured to establish reasonable indicators, guide the optimization of daily operation management or energy-saving technology transformation, gradually tap into energy-saving potential, and compare indicators of the same level units to further promote energy-saving control. Ultimately, a complete energy consumption indicator management system is formed, and efficient energy use is implemented to achieve real-time tracking and display of energy-saving plan indicators;

The system has abnormal diagnosis of energy use. Through energy-saving expert diagnostic models, it comprehensively processes and calculates massive energy consumption data, and discovers problems such as sudden increase in energy consumption, high standby energy consumption at night, waste of energy consumption on weekends and holidays, and water leakage;

The system has the function of energy consumption abnormality alarm, and can establish different types of energy consumption models. When it is judged that energy consuming units, key equipment, or energy consumption quotas are abnormal or exceed the standard, the flashing alarm quantity icon will remind the on duty management personnel of the abnormal state, quickly locate the energy consumption problem point, assist professionals in accelerating the processing of energy consumption problems, and reduce energy waste;
