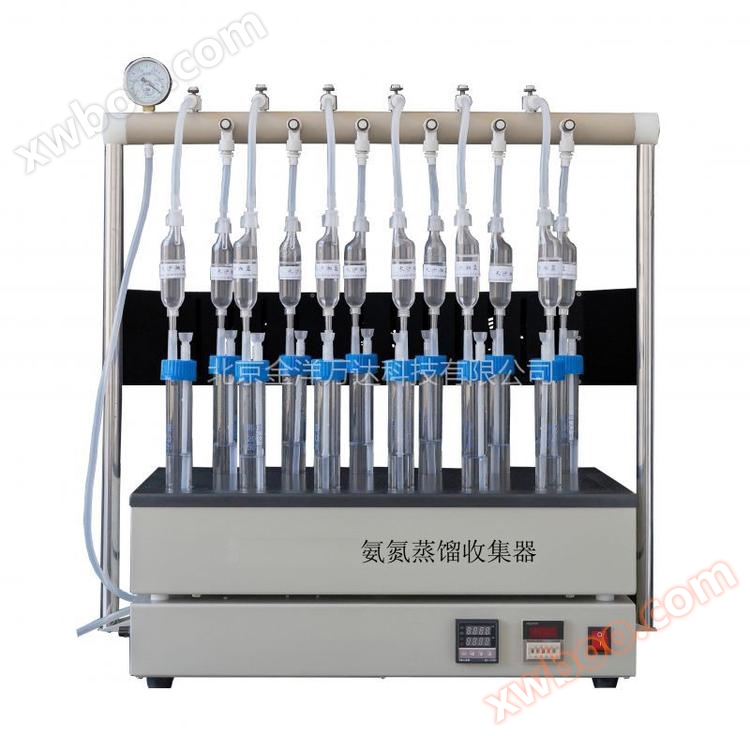

Ammonia nitrogen distillation collector price model: XL-DCS-N12

Ammonia nitrogen distillation collector price model: XL-DCS-N12

1、 Main features:
1. The instrument has a tight structure, simple installation, and easy operation. After setting the temperature, time, and pressure, the distillation collection process instrument automatically runs.
2. The number of glassware in the system structure is small, only requiring 50ml glass distillation tubes. All other components are made of lightweight plastic parts, ensuring economy, safety, and effectively avoiding residual contamination of the samples.
3. Hydrophobic filtration membrane ensures gas-liquid separation, allowing the collected gas to effectively enter the collection bottle; The filter membrane is easy to replace.
4. The heating element is made of high-purity graphite material, and its surface is sprayed with PTFE, with uniform temperature and strong corrosion resistance.
5. No need for condensation water, saving electricity, time, and reagents.
6. 12 samples can be distilled at once, greatly saving manpower.
7. A vacuum main pressure display gauge, equipped with 12 micro adjustment pressure valves for easy adjustment of the vacuum pressure of each sample.
2、 Technical indicators:
1. Sample quantity/sample capacity: 12 * 50ml
2. Measurement range of hydride: 0.10-2.0 μ g/L
3. Heating time: adjustable from 0 to 99 hours
4. Heating range: Room temperature to 260 ℃
5. Heating power: 1400W
6. Temperature accuracy: ± 1.0 ℃
7. Fan: 1.8W * 3
8. Adjustable vacuum pump pumping volume: 0-30L/min
9. Pressure display: 0~-0.1Mpa 10, power supply: 220V, 50Hz
11. Insulation resistance>50M Ω
12. Weight: 35 kg
3、 Standard configuration
1. One 12 bit graphite digestion instrument
2. 12 50ml distillation tubes
3. 12 distillation caps
4. 12 32mm pipe cap washers
5. 12 double headed plug covers
6. Add 12 long liquid tubes
7. 12 liquid addition funnels
8. 12 connecting hoses
9. 12 hose connectors
10. Collect 12 bottles
11. 1 test tube rack
12. One set of vacuum regulating system (including one vacuum pressure gauge)
13. 12 micro pressure regulating valves, pressure connecting pipes)
14. 1 set of air cooling device

Company commitment: Quality service commitment:

1. Warranty period of one year, lifetime free maintenance.

During the warranty period, except for human factors, we will repair or replace any defects or malfunctions caused by improper instrument design, materials, or processes free of charge.

3. Upon receiving notification from the user that the provided instrument has malfunctioned, respond within ten minutes

4. Ensure timely provision of necessary spare parts and accessories to users at discounted prices
