Magnetic resistance thickness gauge price model: HCC-24 Jinyang Wanda

Product Performance Introduction:

A portable measuring instrument powered by batteries that can quickly and non destructively measure the thickness of non-magnetic coatings on the surface of magnetic materials, such as copper, zinc, cadmium, chromium coatings, and paint layers on iron and steel; Simple operation, convenient use, good stability, and high measurement accuracy; Equipped with mathematical and statistical functions, it can directly display the number of measurements, average value, maximum value, and minimum value; Measurement is carried out using the principle of electromagnetic induction, in compliance with ISO2178 and GB/T4956 standards.

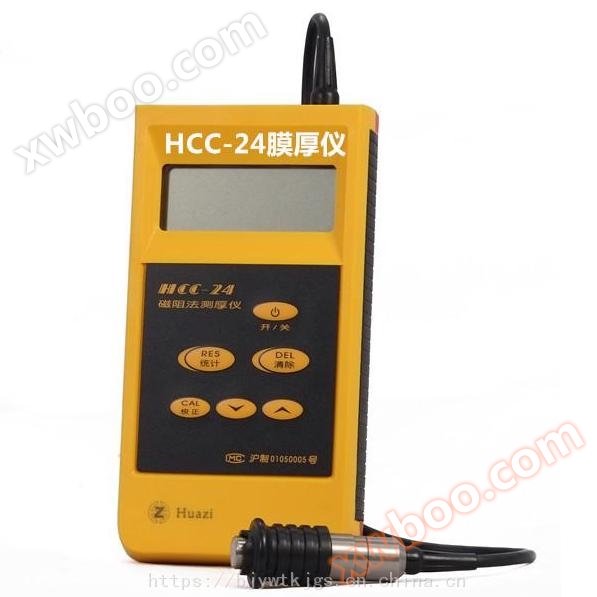

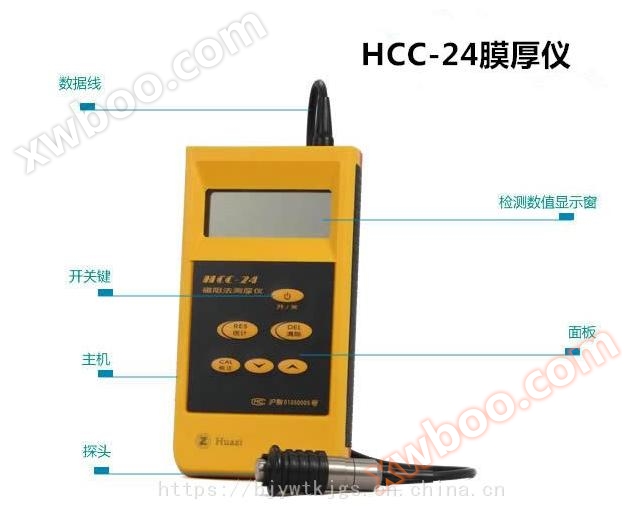

The HCC-24 magnetoresistance thickness gauge is a portable measuring instrument powered by batteries, which can quickly and non destructively measure the thickness of non-magnetic coatings on the surface of magnetic materials. For example, copper, zinc, cadmium, chromium coatings, and paint coatings on iron and steel. Due to the application of integrated circuits and microprocessors, this instrument has the advantages of simple operation, convenient use, good stability, and high measurement accuracy. The instrument has mathematical and statistical functions, which can directly display the number of measurements, the maximum and minimum values of the average. This instrument uses the principle of electromagnetic induction for measurement and complies with ISO2178 and GB/T4956. When the probe comes into contact with the cover layer, the probe and the magnetic substrate form a closed magnetic circuit. Due to the presence of the non-magnetic cover layer, the magnetic resistance of the magnetic circuit increases, and the magnitude of the magnetic resistance is proportional to the thickness of the cover layer. By measuring the magnetic resistance, analyzing and processing it through a computer, the measured value is directly displayed on a liquid crystal display.

Technical Specifications:
1. Measurement range: 0 μ m to 1200 μ m
2. Indication error: ± (3% H+1) μ m H is the measured coating thickness
3. Resolution: 1 μ m
4. Measuring surface diameter: Small measuring surface diameter: 10mm
5. Display: A 4-digit LCD displays the number of measurements, average value, maximum value, and minimum value, while also indicating the working status of the instrument and battery usage
6. Power supply: one 6F22 type 9V battery
7. Dimensions: 160mm × 80mm × 30mm.
8. Quality: Approximately 250g
9. Operating environment: Temperature range of 0 ℃ to 40 ℃; Relative humidity not exceeding 90%

Company commitment: Quality service commitment:

1. Warranty period of one year, lifetime free maintenance.

During the warranty period, except for human factors, we will repair or replace any defects or malfunctions caused by improper instrument design, materials, or processes free of charge.

3. Upon receiving notification from the user that the provided instrument has malfunctioned, respond within ten minutes

4. Ensure timely provision of necessary spare parts and accessories to users at discounted prices
