E12 lamp head gauge

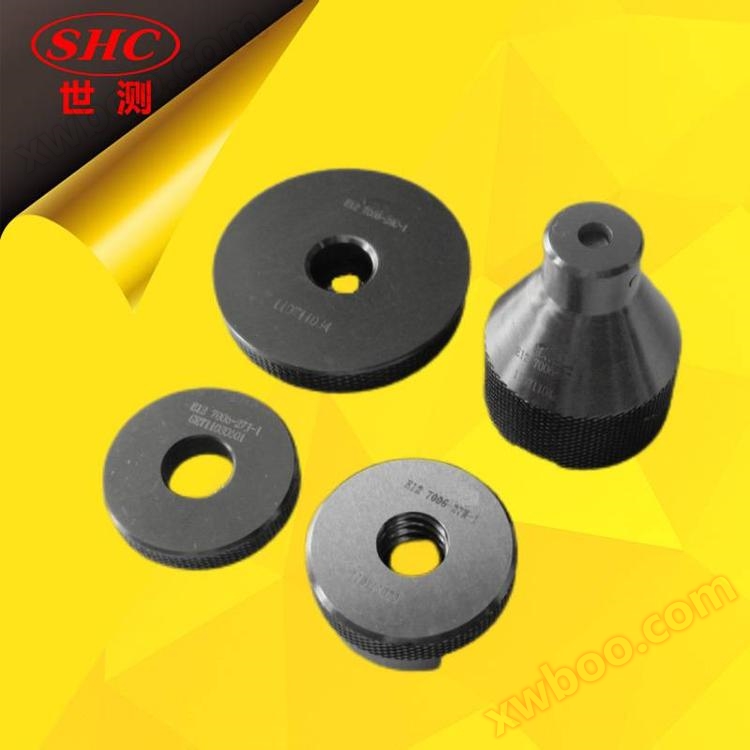

Product Name: E12 Lamp Head Gauge

Technical standard: GB 1483/IEC 60061-3

All products are measured and calibrated by testing laboratories with CNAS accreditation (accredited laboratory qualification) and issued with measurement certificates.

Purpose of use:

(1) E12 Lamp Head General Gauge (Shice Model SC-12C1)

Purpose: To detect the small size of the thread and length of the lamp head.

Usage: When the lamp head on the finished lamp is fully screwed into the gauge, the center contact of the lamp head should be in contact with the X surface of the gauge. When removing it from the gauge, it should be rotated at least two full turns to disengage from the thread.

(2) E12 Lamp Head Additional General Gauge (Shice Model SC-12C2)

Purpose: To detect the thread outer diameter (size d) of E12 lamp head on finished lamps.

Usage: When the equivalent gauge is fitted onto the thread of the lamp head on the finished lamp, it should be able to pass completely, and the force used should not exceed 4.5N, indicating that the outer diameter of the lamp head meets the outer diameter requirements.

(3) E12 Lamp Head Stop Gauge (Shice Model SC-12C3)

Purpose: To detect the small outer diameter (size d) of E12 lamp head threads on finished lamps.

Usage: a) When the equivalent gauge is fitted onto the thread of the lamp head of the finished lamp (with the lamp head facing upwards), the center contact of the lamp head should not exceed the X plane.

b) During the testing process, no force is applied and only the weight of the gauge itself is tested.

(4) E12 Lamp Head Contact Performance Specification (Shice Model SC-12C4)

Purpose: To verify the dimensions related to the contact between the lamp and the lamp holder, especially the combined dimensions of the lamp head length and the shape of the bulb shoulder

Usage: When inserting the lamp into the gauge, if the W surface can be coplanar with the V surface or protrude from the V surface, it can be considered that the shape of the lamp and the fit of the lamp holder are qualified.

Purpose: To test the length and contact performance of E26 lamp head

Gauge advantages:

1. Material - Made of mold steel imported from Japan.

2. Rust prevention - Advanced rust prevention materials have better rust resistance.

3. High hardness and good wear resistance - with a Rockwell hardness of HRC58 ° or above, it is not easily worn.

4. Long service life - The gauge has high hardness and good wear and rust resistance, with a lifespan 3-5 times longer than ordinary gauges.

5. Thoughtful service -15 day no reason exchange, free repair.

Application scope:

1. It specifies the type, size, purpose of use, and inspection method of the gauges used to test the interchangeability dimensions of the relevant lamp heads and lamp holders.

2. Applicable to the design and manufacture of relevant lamp heads and lamp holder gauges for inspecting the types and sizes of lamp heads produced in accordance with GB/T1406 and the types and sizes of lamp holders produced in accordance with GB/T19148.
