German European Standard DIN VDE0620-1 Lehre11 Non Grounding Contact Two pole Plug Insertion Impossible Inspection Quantity Gauge and Fixture

NegotiableUpdate on 04/01

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

DINVDE0620-1 Lehre11 Non Grounded Contact Two pole Plug Insertion Inability Test Gauge German Standard VDE0620 Gauge 10 (Lehre11 Non Grounded Contact Two pole Plug Insertion Inability Test Gauge) complies with Chapter 9.2 of VDE0620-1 to test the non insertability of two pole plugs

Product Details

DIN VDE0620-1 Lehre11 Non Grounding Contact Two pole Plug Insertion Inability Test Gauge

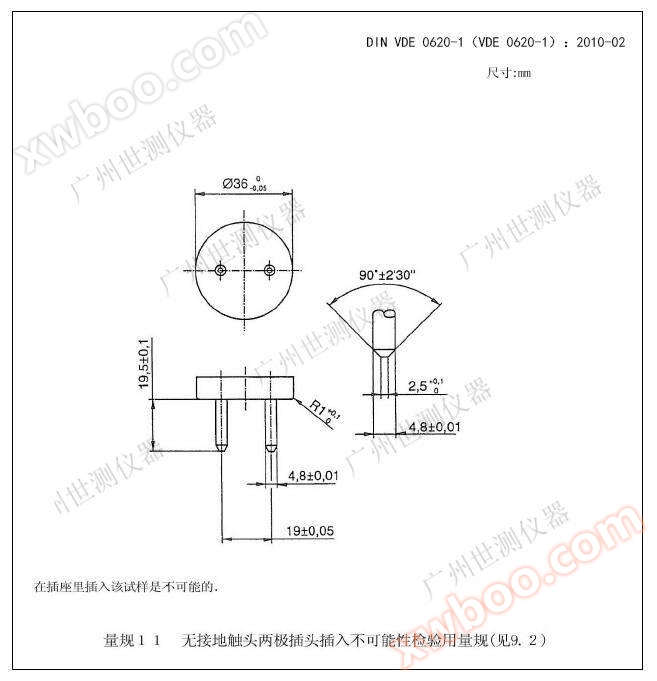

The German standard VDE0620 gauge 10 (Lehre11 inspection gauge for the impossibility of inserting two pole plugs without grounding contacts) complies with section 9.2 of VDE0620-1 and tests the non insertability of two pole plugs.

Usage: It is not possible to insert the sample into the socket. Refer to Chapter 9.2 of the standard.

Insertion impossibility gauge for bipolar plug without grounding contact 'DIN-VDE0620-1 Lehre11' model: SC-V0L11

Product Name: DIN VDE 0620-1 Plug Gauge and Socket Gauge from Germany
Technical standard: DIN VDE 0620-1

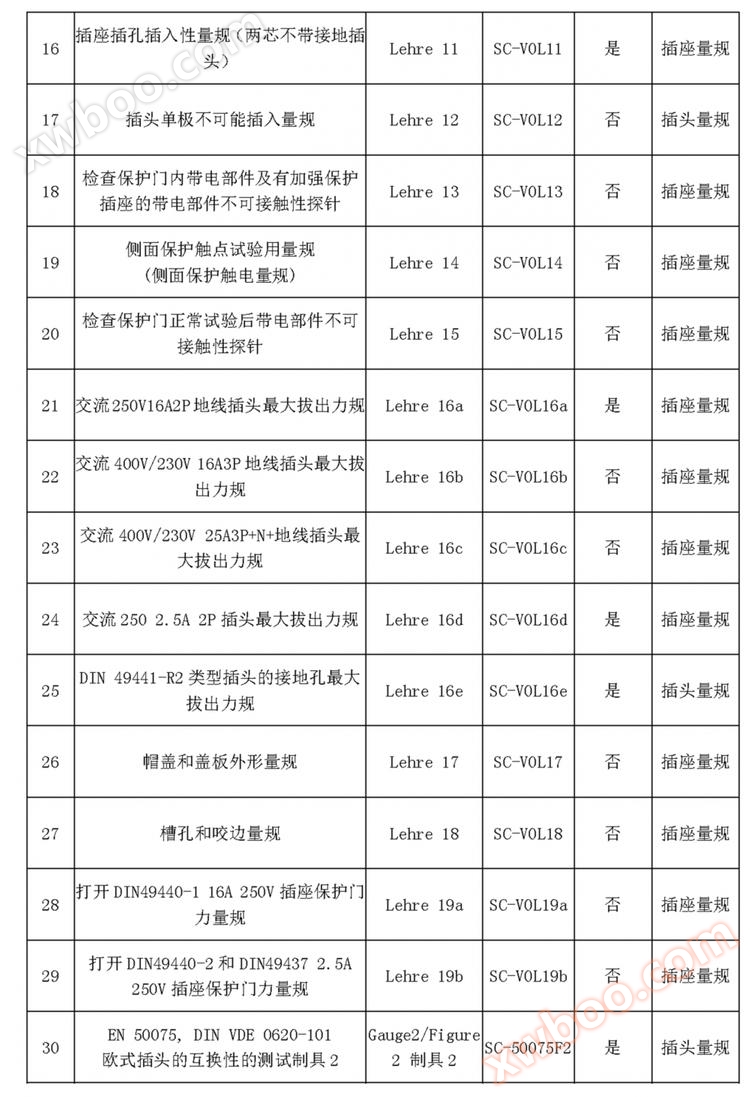

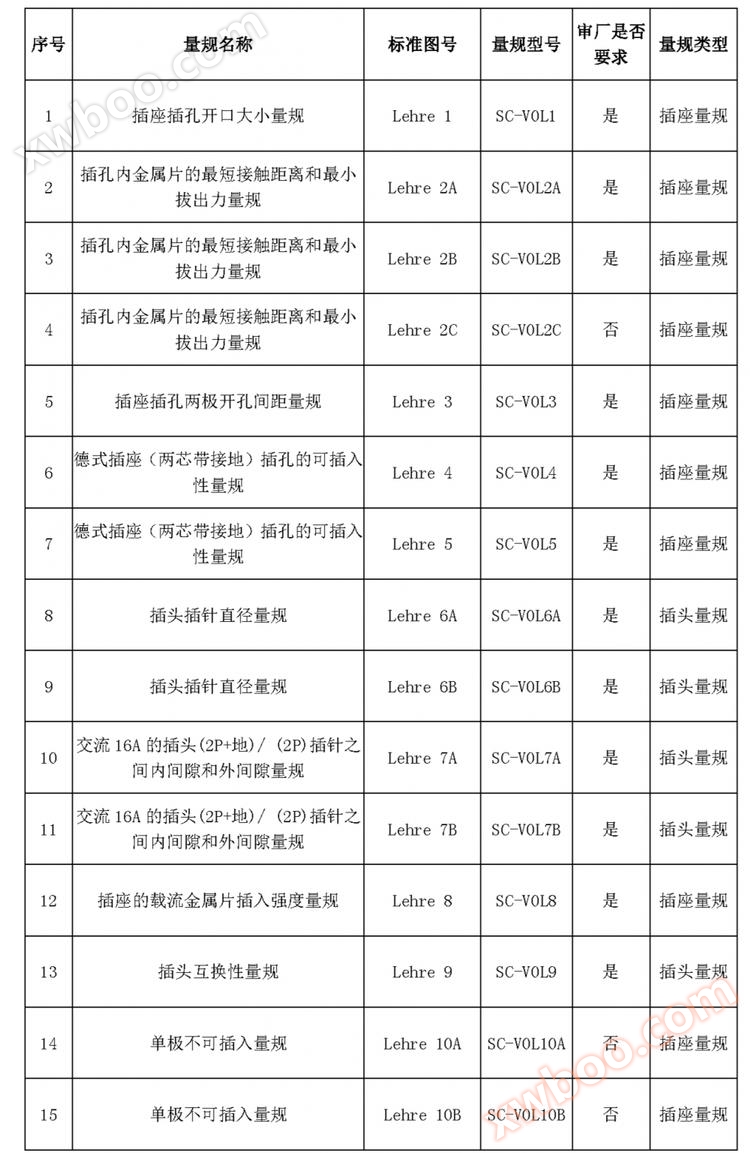

VDE0620 Gauge List：

1. All products undergo metrological testing and calibration by testing laboratories with CNAS accreditation (accredited laboratory qualification), and are issued with metrological certificates.
2. The gauges are strictly produced one by one according to the requirements, crafted with ingenuity.

Application and Purpose
Use gauges to check whether the corresponding plug and socket dimensions are qualified.
