UL498 standard plug and socket gauge, Figure 111.1, test head, Test Gauge, pull-out force gauge, complete set, supplied by Shice

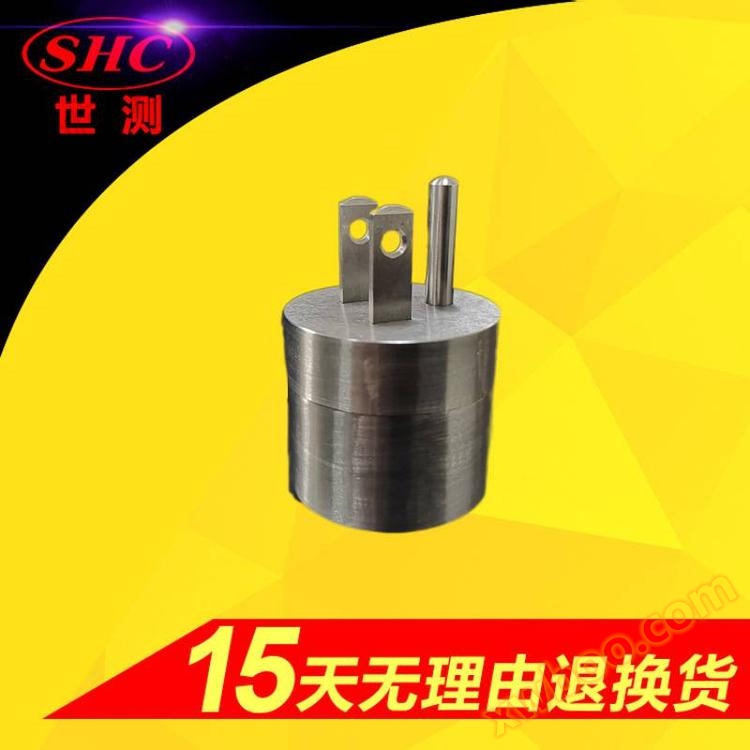

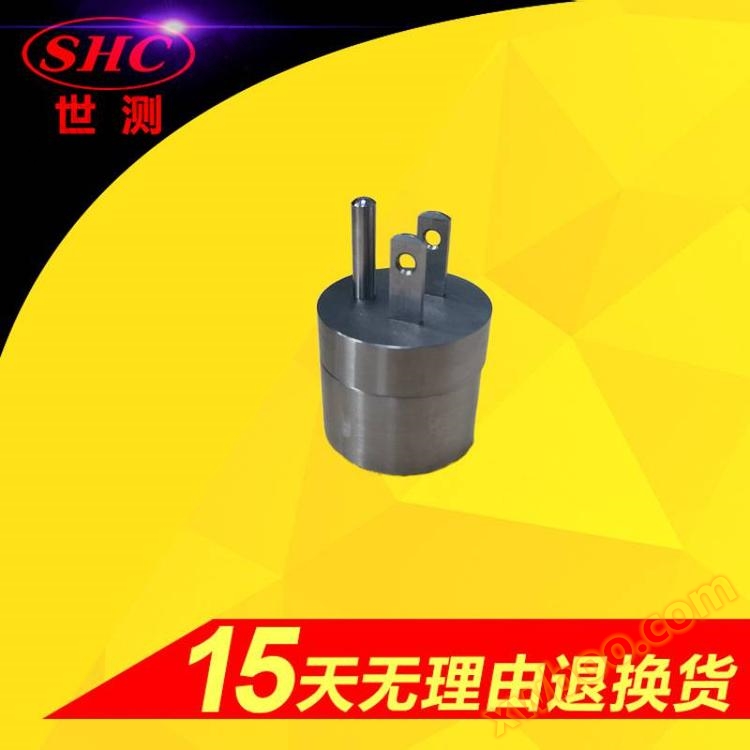

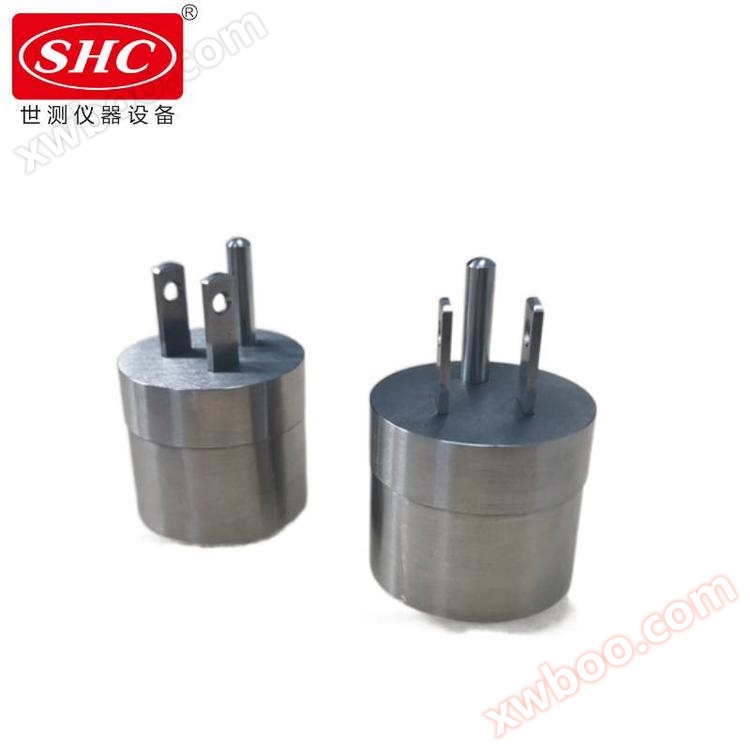

US standard plug and socket gauge UL498 Figure 111.1

(Test Gauge Figure 105.1)

Gauge Name: Test Gauge Pull out Force Test Gauge 15lb (67N)

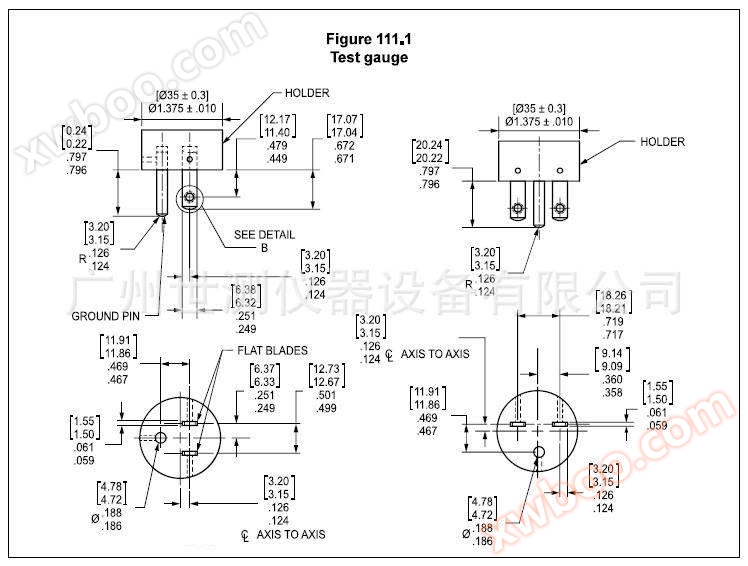

Gauge specification: UL498 figure 111.1

Gauge model: SC-UL1111

Gauge standard: Complies with UL498 Attachment Plugs and Receptacles requirements;

There are many models available, please contact us for a list and detailed information.

Technical standards:

UL498 Attachment Plugs and Receptacles

1. Standard: fully meets the requirements of the standard and can pass third-party measurement, calibration, and testing;

2. Processing: CNC equipment processing, with controllable quality, shorter delivery time, and better service;

3. Material: Imported industrial grade mold steel and stainless steel from Japan, Germany, Switzerland, etc., with advantages such as high mirror finish, high hardness, small deformation, wear resistance, corrosion resistance, and rust resistance;

4. Quality: before leaving the factory, it has been measured by anime, projector, digital micrometer, caliper, etc., and the quality is strictly controlled; The quality of Shice instruments is reliable.

5. Tolerance: The geometric tolerances such as parallelism, perpendicularity, and symmetry comply with the specified tolerances;

6. Identification: All models and drawing numbers are marked with laser engraving, which is beautiful, clear, durable and convenient;

1. All products undergo metrological testing and calibration by testing laboratories with CNAS accreditation (accredited laboratory qualification), and are issued with metrological certificates.
2. The gauges are strictly produced one by one according to the requirements, crafted with ingenuity.

Application and Purpose
Use gauges to check whether the corresponding plug and socket dimensions are qualified.
