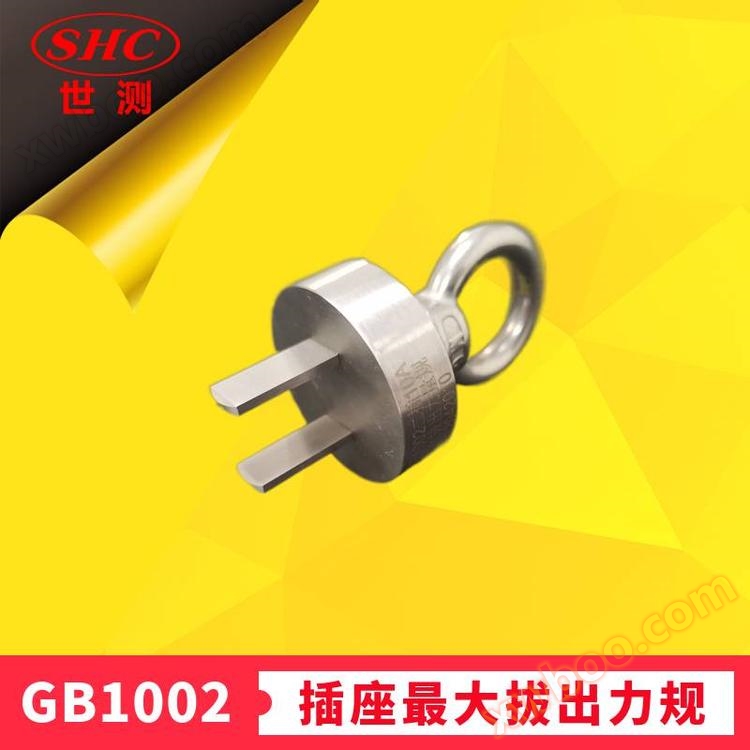

GB2099 socket plug pull-out force gauge GB1002 single-phase two pole maximum pull-out force test gauge 10A two pin fixture lifting weight 40N

10A two pin socket pull-out force standard GB1002 single-phase two pole 10A plug gauge

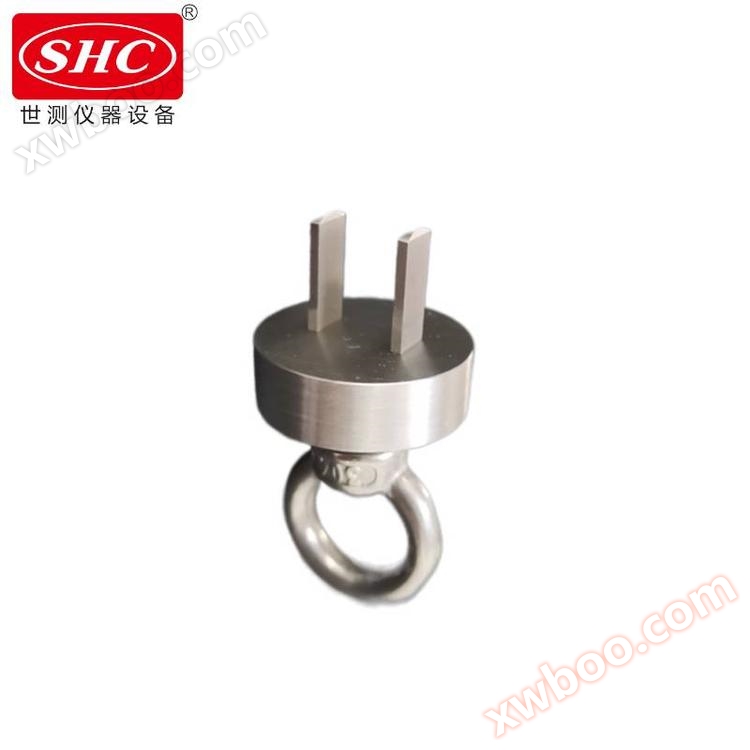

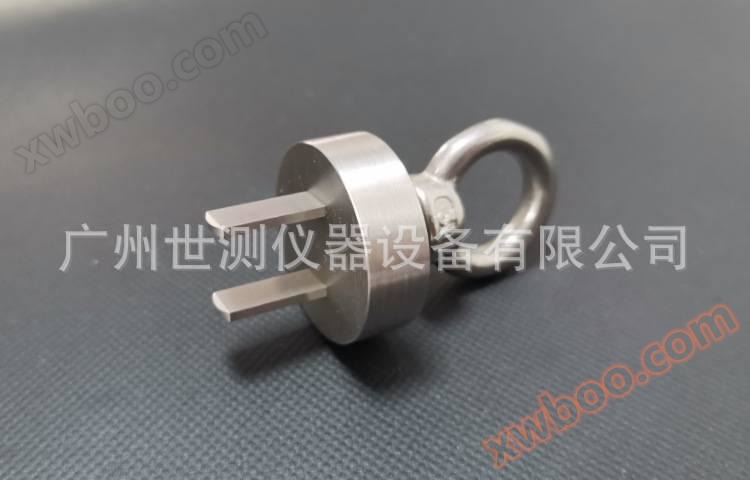

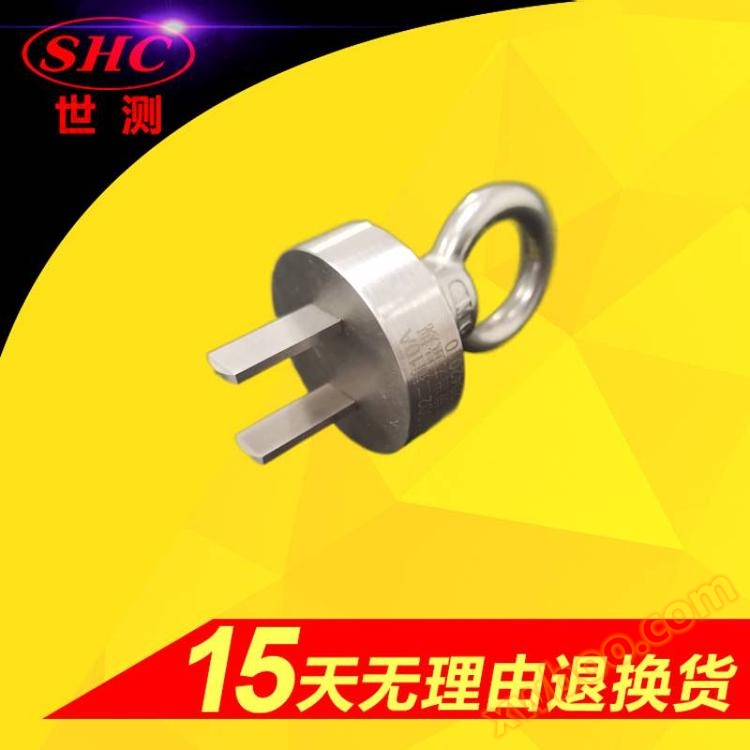

Gauge name: 10A single-phase two pole socket pull-out force gauge

Gauge specifications: GB1002 Figure 1, GB2099.1 Chapter 22.1, 40N

Gauge parameters: 250V, 6/10A

Gauge model: SC-G2D6

Gauge standard: meets the requirements of GB1002-2008;

Purpose of the gauge: Used for dimensions specified in GB1002-2008 standard.

There are many models of GB1002, including 19 regular ones, as well as 25 sets including the Zui small pull-out force gauge and others.

Please contact us for a list and detailed information.

Introduction to GB1002 plug gauges and socket gauges:

GB1002-2008 Types, basic parameters and dimensions of single-phase plugs and sockets for household and similar purposes,

GB1002 standard full name: "Types, basic parameters and dimensions of single-phase plugs and sockets for household and similar purposes"

The types, basic parameters, and dimensions of single-phase plugs and sockets for household and similar purposes shall comply with the provisions of Figures 1-5 and Tables 1-5 in the standard.

And, to check the size of the corresponding plug and socket, use the measuring instruments specified in Figures 6-18 and Tables 6-18.

The insertion force of the gauge and other testing requirements, such as temperature rise, lateral stress, etc., shall be in accordance with the provisions of GB2099.1-2008.

GB1002 plug and socket standard gauge - Shice Instrument

Standard: GB1002-2008 and GB 2099.1-2008 standard requirements (or new version);

Purpose: Used for measuring and verifying the size of plugs and sockets in accordance with the GB1002-2008 standard, mainly for household and similar purposes;

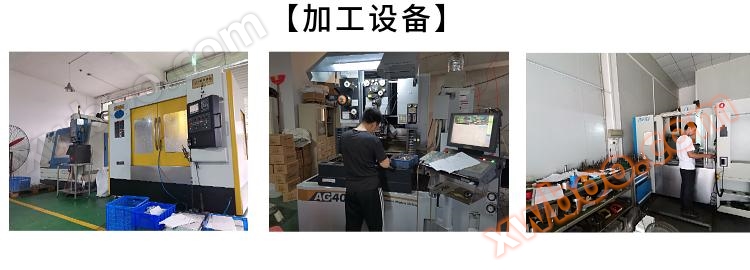

Processing: CNC equipment processing, with controllable quality, shorter delivery time, and better service;

Material: Imported industrial grade mold steel and stainless steel from Japan, Germany, Switzerland, etc., with advantages such as high mirror finish, high hardness, small deformation, damage resistance, corrosion resistance, and rust resistance;

Quality: measured by anime, projector, digital micrometer and caliper before leaving the factory, meeting the standard requirements and being able to be measured by a third party; The quality of Shice instruments is reliable.

Advantages: 1. Fully comply with standard requirements. 2. Shice Supply. 3. One-time measurement;

Tolerance: The geometric tolerances such as parallelism, perpendicularity, and symmetry comply with the tolerance level H specified in GB/T 1184-1996;

Identification: All models and drawing numbers are marked with laser engraving, which is beautiful, clear, and convenient;

GB1002 plug and socket standard gauge

GB1002 specifies the types, basic parameters, and dimensions of single-phase plugs and sockets for household and similar purposes. This standard is applicable to single-phase plugs and fixed or movable sockets with an AC frequency of 50Hz, a rated voltage of 250V, and a rated current not exceeding 16A used in general households and similar household environments. GB 1002-2008 Types, basic parameters and dimensions of single-phase plugs and sockets for household and similar purposes. Shice Instrument produces and sells standard gauges for plugs and sockets.

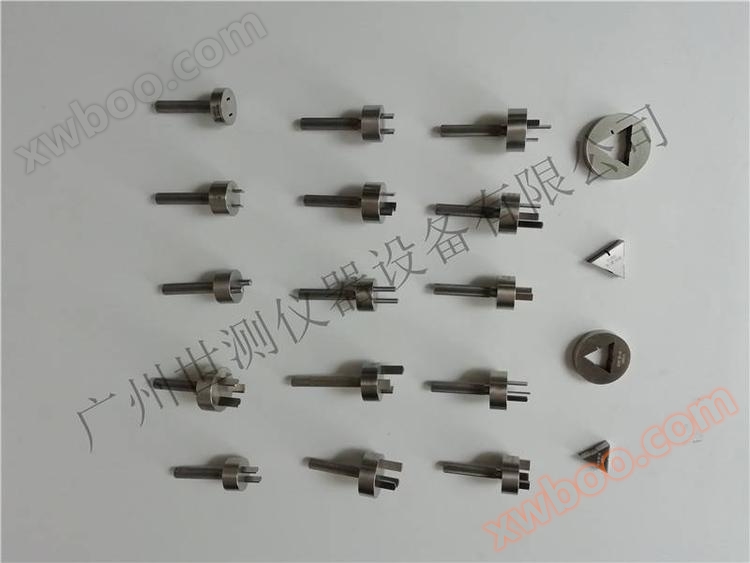

The list of standard gauges for plug and socket of SHC GB1002 is as follows:

Product NameGB1002 plug gauge, socket gauge
technical standard：GB1002-2008； GB2099-2008

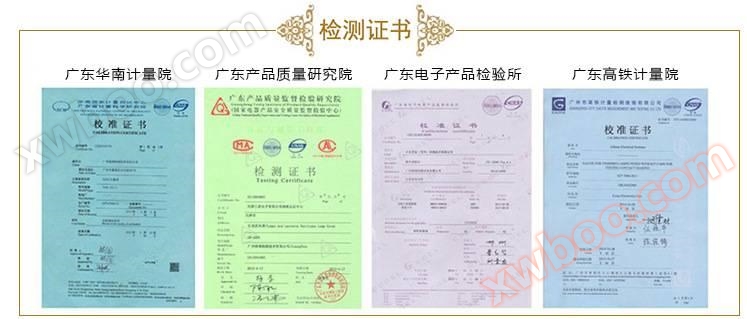

1. All products of World Measurement Instruments (SHC) are calibrated and issued measurement certificates by testing laboratories with CNAS qualification (accredited laboratory qualification).
2. The gauges are strictly produced one by one according to standard requirements, crafted with ingenuity.
3. Application and purpose: Use a gauge to check whether the size of the corresponding plug and socket is qualified.

Scope of Application

This standard specifies the types, basic parameters, and dimensions of single-phase plugs and sockets for household and similar purposes.

This standard is applicable to single-phase plugs and fixed or mobile sockets with an AC frequency of 50Hz, a rated voltage of 250V, and a rated current not exceeding 16A used in households and similar household environments.

Technical requirements and testing methods

The technical requirements and test methods for single-phase plugs and sockets for household and similar purposes shall comply with the provisions of GB 2099.1.

Shice Instrument (SHC) provides organization and supply

Type, basic parameters, and dimensions

1. Single phase plugs and sockets for household and similar purposes are divided into two basic types: two pole ungrounded and two pole grounded.

2. The form, basic parameters, and dimensions of single-phase plugs and sockets for household and similar purposes shall comply with the provisions of Figures 1-5 and Tables 1-5.

3. Check the dimensions of single-phase plugs and sockets for household and similar purposes, using the gauges specified in Figures 6-18 and Tables 6-18, and a vernier caliper with a division value of 0.02mm. Measure the size of the rounded part of the plug end with an appropriate measuring tool. The insertion force of the gauge should not exceed the pull-out force specified in GB2099.1. The roughness of these gauges is all 0.8um, and the hardness is HRC58~62. The form and position tolerances of the gauges, such as parallelism, perpendicularity, and symmetry, are in accordance with the tolerance level H specified in GB/T 1184.

4. The shape of the plug is not specified, but the distance between the plug pin and the edge should not be less than 6.5mm.

5. The distance between the socket (excluding the grounding socket) in a single-phase socket and the mating surface should not be less than the safe distance. These dimensions should be inspected using the gauges specified in Figure 12, Table 12, Figure 16, and Table 16 respectively.

6. The type, parameters, and dimensions of a single-phase two pole ungrounded plug with a rated current of 16A should be the same as those of a single-phase two pole grounded plug with a rated current of 16A, but it should be made into a non rewirable plug. The grounding pin is located at the protective door drive plate, black in color, does not connect wires, and is not marked with a grounding symbol. It is only used as a driving device to open the protective door when plugged into the socket.

Instructions for using gauges

Shice Instrument (SHC) provides organization and supply

According to section 9.1 of GB 2099.1-2008 Household and Similar Use Plug and Socket Parts: General Requirements for Dimensional Inspection.

The above is compiled and provided by Shice Instruments (SHC).
