Langxi Instrument (Shanghai) Co., Ltd
Explosion proof industrial process chromatograph (hydrogen energy analysis)
NegotiableUpdate on 03/04
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Brief description: The LX-5000 explosion-proof industrial process chromatograph (hydrogen energy analysis) inherits the excellent design of Langmuir instruments in industrial chromatographic analysis, adopting both a new industrial design and validated high reliability components. In addition, the built-in automatic detection function reduces the comprehensive application cost for users, making it an industrial chromatograph that can meet the requirements for analysis reliability and accuracy.
Product Details
Details
| brand | LANSiS/Langmuir instrument | Price range | discuss personally |
|---|---|---|---|
| Origin category | domestic | application area | energy |
LX-5000Explosion proof industrial process chromatograph (hydrogen energy analysis)Inheriting the excellent design of Langxi instruments in industrial chromatographic analysis, it not only adopts a new industrial design, but also uses validated high reliability components. Additionally, throughThe built-in automatic detection function reduces the comprehensive application cost for users, making it an industrial chromatograph that can meet the requirements for analysis reliability and accuracy.
LX-5000Explosion proof industrial process chromatograph (hydrogen energy analysis)Built in 10.4-inch industrial color touch screen greatly simplifies the maintenance process. Technicians can operate simple color screensMid visitAsk allAnalyze parameters and measurement results. From the overview screen of the analyzer's operation to the processing screen of data analysis, users can easily obtain information or know the tasks that need to be completed. All operating parameters of the gas chromatograph, such as door opening and closing time and valve component time, are displayed on the screen simultaneously. While simplifying the maintenance process of gas chromatography, technicians who have not used LX-5000 can quickly master it without excessive training. Comparing the current spectrum with stored or calibrated spectra can easily confirm the analysis effect.

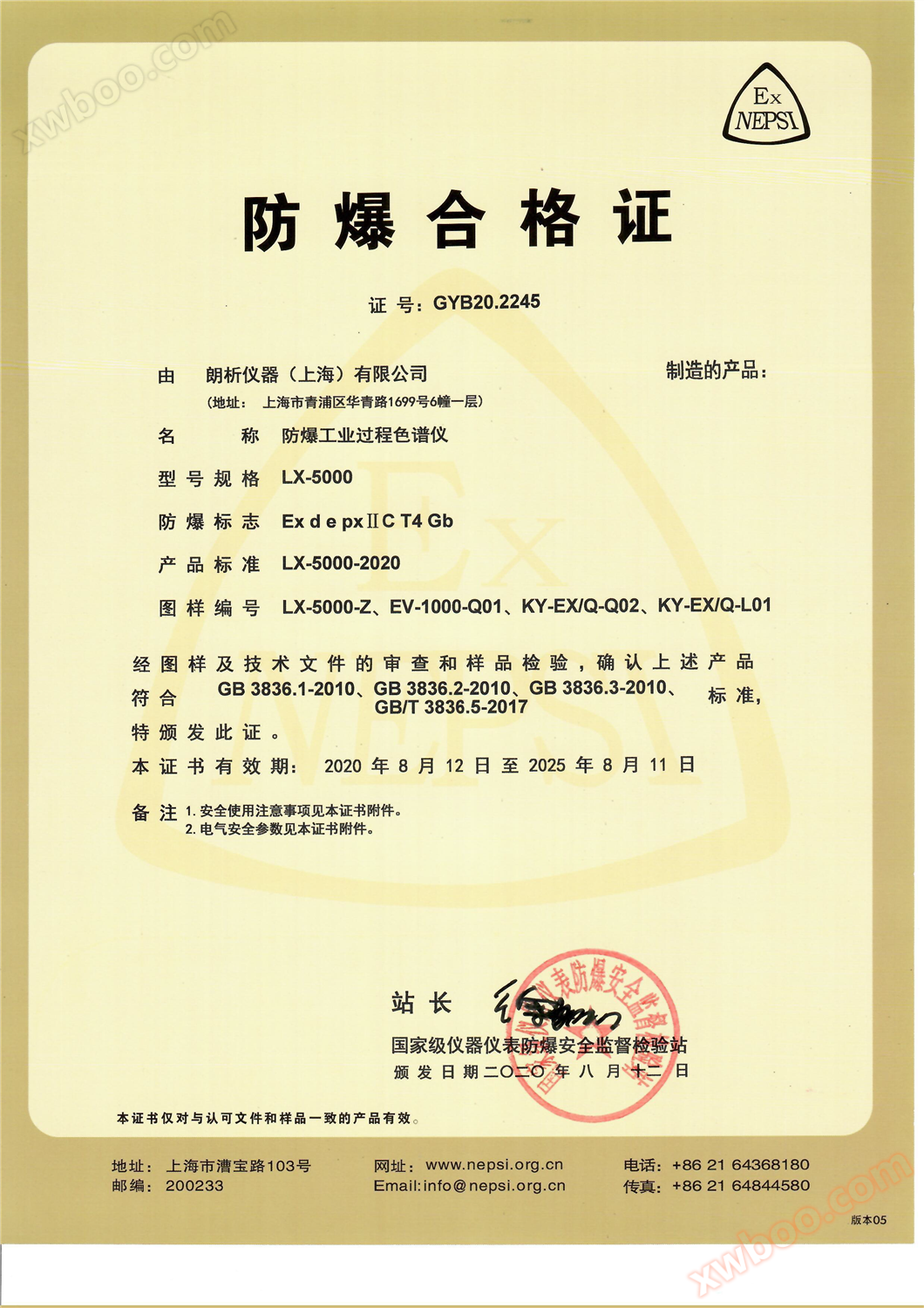

LX-5000 Explosion proof Industrial Process Chromatograph Explosion proof Certification Certificate (Figure)
Technical indicators:
| LX-5000Explosion proof industrial process chromatograph | |
| control mode | built-in10.4Inch industrial color touch display screen industrial computer |
| Detection channel | Single channel, dual channel |
| detector | PDHID、TCD、FID |
| column oven | At room temperature4℃～135℃, incremental:1℃, accuracy:±0.1℃ |
| LRV | nL/L、μL/L、% |
| drift/repeatability | ±1%～±5% |
| Sample gas flow rate | 30～100mL/min |
| Sample gas pressure | 0.05～0.3MPa |
| Carrier gas type | He（or N2、Ar、H2） |
| carrier gas flow | 30～150mL/min |
| Carrier gas pressure | 0.4 MPa |
| Instrument air | pressure: 350～900kPainternet traffic: 150～210L/min |
| power supply | 220V±22V，50Hz |
| power | 1.5kW |
| weight | 100kg |
| size | Wall mounted cabinet |
| 600mm×950mm×400mm（W×H×D） | |
| flow control | EPCFlow meter and electronic monitoring are optional |
| Flow path control | at most60road(Including calibrated flow path) |
| Analysis cycle | longest21600.0second(6hour) |
| work environment | -20～50℃，95%RHbelow(No condensation) |
| workstation | Using the latest digital communication technology, the analysis results are directly displayed and uploaded to the upper computer（DCSperhapsLX-5000Integrated data software, etc.), automatic instrument failure alarm and upload to the upper computer,FIDAfter extinguishing the fire, it will automatically ignite, and if it fails to ignite five times, it will automatically cut off the hydrogen gas. The instrument is equipped with a built-in hydrogen alarm device, which monitors the hydrogen content in real time. If the hydrogen content exceeds the standard, the power will be automatically cut off, and if the pressure drops, the power will be automatically cut off. Multiple measures are taken to ensure the safe operation of the instrument. Debugging parameters require authorization codes and one click calibration to ensure the safety and reliability of analysis data. Make monitoring data more effective and secure. |
| Explosion proof sign | Ex d e px IIC T4 Gb |
| signal output | 4～20mA（12Road)RS232/RS485Ethernet |
