FLUKE NORMA 5000 Power Analyzer

Fluke (Fluke)

Fluke NORMA 5000 Power Analyzer Product Introduction:
Product model: NORMA 5000
Product brand: Fluke
Product Category: Power Quality Analyzer
Product note: Power analyzer

Fluke NORMA 5000 Power Analyzer Product Overview:
Fluke Norma Power Meter | Power Analyzer: A Reliable High Accuracy Measurement Tool for Power Electronics Testing and Development
The compact Fluke Norma series power detection analyzer/power meter provides new measurement technologies to assist engineers engaged in the development and testing of motors, inverters, lighting, power supplies, transformers, and automotive parts, resulting in higher product productivity.
The Fluke Norma series power detection analyzer/power meter adopts a high bandwidth architecture, which can accurately measure single-phase or three-phase current and voltage, harmonic analysis, fast Fourier transform (FFT) analysis, and calculate power and other calculated values.
The power detector/power meter series includes Fluke Norma 4000 three-phase energy analyzer and Fluke Norma 5000 six phase power detection analyzer/power meter. These sturdy and highly efficient power detection analyzers/power meters have excellent performance, making them very convenient and reliable for both on-site use and as desktop instruments in laboratories or test benches.
Application:
Electric motor and inverter drive system power detection analysis - The power meter can accurately measure the switching losses caused by the inverter through detailed spectrum analysis and dynamic torque calculation, and can evaluate torque transients and harmonics at high frequencies.
Inverter drive system power detection analysis - The power meter can simultaneously measure all electrical and mechanical power parameters within the same event window, allowing users to observe the impact of one component on another or its impact on the entire system.
Lighting system power detection analysis - With a bandwidth of up to 10 MHz and a high sampling rate of up to 1 MHz, the power meter can analyze the output signal of the rectifier in detail. Diverter technology can perform power detection at very high frequencies. Meanwhile, the function of measuring input and output power provides the ability to calculate rectifier losses.
Transformer power detection analysis - The power meter synchronously measures 6-phase power, even at very small power factors, and can calculate the efficiency and losses of high-precision high-power transformers. It can also synchronously measure the resistance of multiphase transformer coils.
Automotive power detection analysis - power meters synchronously measure electrical inputs and mechanical outputs, providing data on the efficiency and losses of individual components and the entire drive system.

Fluke NORMA 5000 Power Analyzer Product Features:
Fluke Norma 5000 power detection analyzer/power meter: The Fluke Norma 5000 six phase power analyzer provides higher bandwidth than similar products in the market and is an ideal testing and analysis tool for the development of frequency converters and lighting equipment. Its features include: 3-6 power modules, optional built-in printer, and all the features and functions of the Fluke Norma 4000 power analyzer mentioned above.
User selectable average time -15 ms to 3600 s, suitable for dynamic measurement
The simple user interface of the power detection analyzer/power meter ensures easy and intuitive operation
Standard configuration allows users to adapt corresponding functions to their specific applications
Simultaneously collect all phases in parallel and display dynamic events on all phases at a certain point in time
All inputs of the power detector/power meter are electrically isolated to avoid short circuits in various applications
Up to 40 times of voltage, circuit, and power harmonics
FFT analysis, vector graphics, recorder functions, and digital oscilloscope (DSO) mode
Power detection analyzer/power meter 4 MB onboard memory (expandable up to 128 MB) for storing measurement values
Quick and convenient connection to PC - RS232 and USB are standard. Optional IEEE488, Ethernet, or USB2.0
PI1 process interface, which can measure torque and speed through external sensors. Containing 4 analog outputs, it can be conveniently used for motor and drive applications.
341 kHz or 1 MHz sampling rate for detailed signal analysis
• DC~3 MHz/10 MHz bandwidth, reliable measurement accuracy.
• Includes Fluke NormaView PC software, which can be used to download data, analyze, and write reports.

Fluke NORMA 5000 power analyzer product specifications:

General Technical Specifications
Number of phases	1 to 3
weight	About 5 kg (11 lb)
size	150 x 237 x 315 mm
	5.9 x 9.3 x 12.4 in
Built-in printer	not have
display	Color, 5.7 in/144 mm – 320 x 240 pixels
	User selectable backlight illumination and contrast
bandwidth	DC * up to 3 MHz or DC * up to 10 MHz, depending on the input module
Basic accuracy	0.2%, 0.1%, or 0.03%, depending on the input module
sampling rate	0.33 MHz or 1 MHz, depending on the input module
Voltage input range	0.3 V to 1000 V
Current input range (direct input, without using a shunt)	0.03 mA or 20 A, depending on the input module
Configure Memory	4 MB
Set storage	0.5 MB
Fast Fourier Transform (FFT)	Up to the 40th harmonic
RS-232/USB interface	Standard lens
PI1 processing interface (8 analog/pulse inputs and 4 mode outputs)	optional
IEEE 488.2/GPIB interface (1 MBit/s Ethernet/10 MBit/s or 100 MBit/s)	optional
Fluke NormaView PC software (for data download, analysis, and report writing)	Standard lens
basic function
Fast Fourier Transform (FFT)	Calculate harmonics and display three harmonic spectra simultaneously with graphical identification.
	Tested values: U, I, and P for each phase.
	Order: 1st to 40th harmonic, * half of the sampling frequency
Digital Oscilloscope (DSO)	Simultaneously display up to 3 measurement values (sampled values). Quickly view waveforms and distortions.
Integral function (energy)	Simultaneously display up to 6 configurable numerical values. Start/stop conditions and positive/negative options.
Vector display	It can display vector diagrams of up to 6 signals from HO1. It can facilitate the correct connection of testing instruments and quickly view the phase angle of each signal.
Recorder	Display the average value over a certain period of time for trend analysis.
RAM data storage	Store sampled values and average values; Start/stop condition settings.
	Approximately 4MB can be used to store measurement values.
configuration	Set the analyzer to measure and display data in the desired format.
environmental condition
Working temperature range	5 ° C to 35 ° C (41 ° F to 95 ° F)
Storage temperature range	-20 ° C to 50 ° C (-4 ° F to 122 ° F)
Housing material	The Fluke Norma power analyzer has a very compact structure and uses a solid metal casing to meet demanding EMC requirements.
Climate grade	KYG DIN 40040， *85% relative humidity, no condensation.
power supply	85 V AC to 264 V AC, 50 Hz to 60 Hz, DC 100 to 260 V, approximately 40 VA European style plug with switch. We can provide current terminals of the same model.
Measuring input	Safety jack, 4 mm, 2 inputs per channel. The external splitter is connected through a BNC socket.
operate	Thin film keys with cursor, function keys, and command functions.
connect	Rear panel of three-phase analyzer
Measurement value
	Seamlessly calculate the average value of each input. In a three-phase system, the total power, average voltage, and current of the three phases can also be calculated. In synchronous mode, these values of the fundamental wave H01 are also calculated.

	Urms effective value, Urm rectified average value, Um mean value
	Up -, Up+, Upp peak value
	Ucf peak factor Ucf, Uff waveform factor
	Ufc fundamental wave content
	Uthd distortion factor DIN, IEC
	Irms effective value, Irm rectified average value, Im mean value
	Ip -, Ip+, Ipp peak value
	Icf peak factor Icf, Iff waveform factor
	Ifc fundamental wave content
	Ithd distortion factor DIN, IEC
	P active power [W]
	Q reactive power [Var]
	S apparent power [VA]
	ë, cos phase angle
	The integration function of the following parameters: active power P, reactive power Q, apparent power S, voltage (Um) and current (Im)
	4 or 5 digits, depending on the measured value.

Frequency and synchronization
range	DC and 0.2 Hz to sampling rate
linear measure	± 0.01% measurement value (reading)
	Optional channels: All U/I or external inputs.
	Any one of three low-pass filters with different frequencies can be applied to the signal.
	The frequency is always visible at the top of the screen.
	The BNC synchronization socket on the back of the instrument can be used as an input or output.
	The input signal high level that can measure up to the sampling rate of the power module must be above 50 V.
	The output signal is a pulse type 5V TTL signal (frequency depends on the measured published frequency)

Configure Storage
	Up to 15 sets of user configurations can be saved to the * memory and subsequently recalled. Unsaved modifications will be lost after closing the instrument.
interface
	RS232 interface, capable of upgrading firmware and exchanging data with PC. A printer can be connected through an external converter.
option	IEEE 488.2/1 MBps
	Ethernet/10 Mbit/s or 100 Mbit/s
Standards and safety
Electrical safety	EN 61010-1/2nd edition 1000 V CAT II (600V CAT III)
	Pollution level 2, safety level I
	The transformer is in accordance with EN 61558
	The attachment is EN 61010-2-031/032
*Large input	The measurement range for voltage input is 1000 Veff and 2 kVpeak
	The measurement range for current input is 10 Aeff and 20 Apeak
testing voltage	Net Input	Shell (protective conductor): 1.5 KV AC
	Grid connection	Measurement input: 5.4 kV AC
	Measuring input	Shell: 3.3 kV AC
	Measuring input	Input: 5.4 kV
Electromagnetic sensitivity	Radiation standard	IEC 61326-1, EN 50081-1, EN 55011 Class B
	Immunity	IEC 61326-1/Appendix A (Industrial Part) EN 50082-1

Power phase
The Fluke Norma 4000 power analyzer can be equipped with up to three power phases. Users can choose the power phase that is suitable for their application.
Each modular plug-in power phase includes voltage and current measurement channels. Each measurement channel is applicable to each basic unit, but each unit can only use one channel. Check the standard configuration.

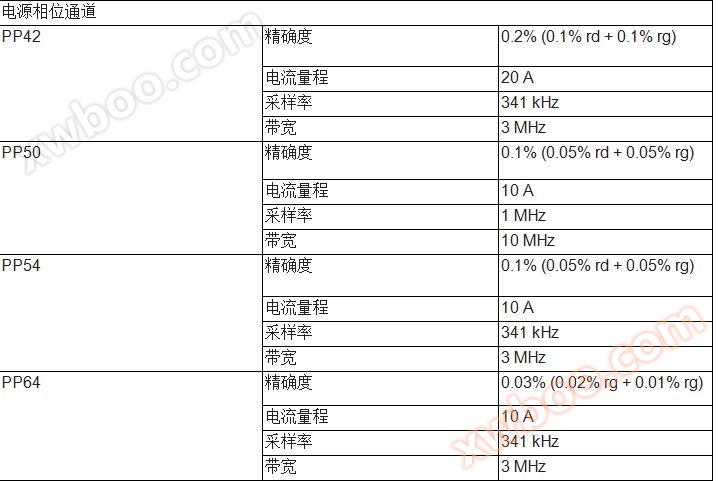

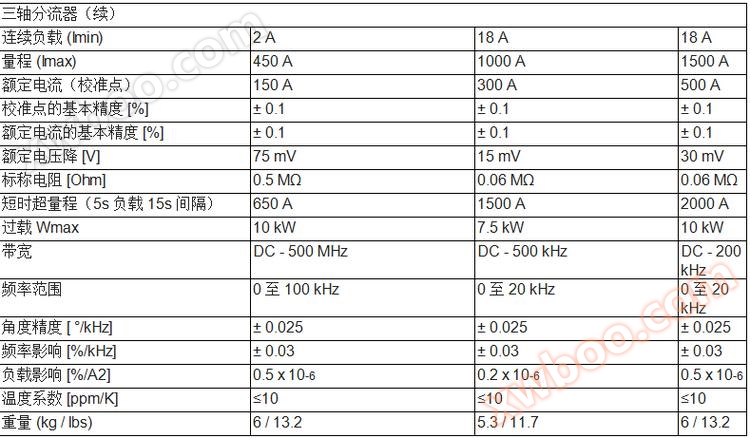

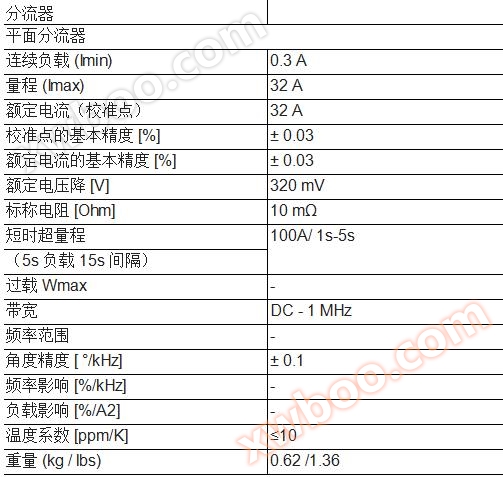

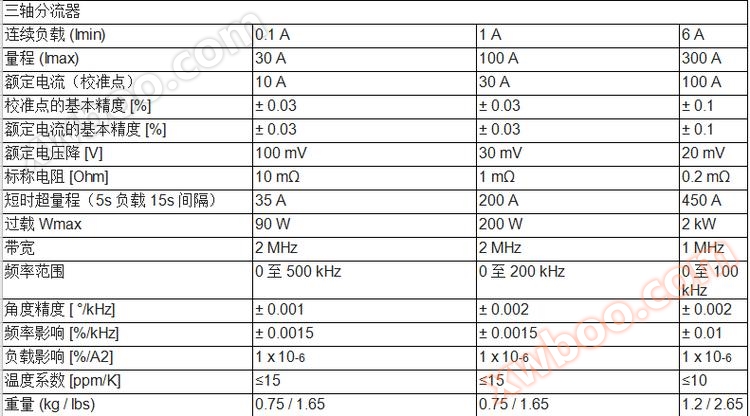

Overview of Power Phase
