Fuji FLR ultrasonic flowmeter from Japan
NegotiableUpdate on 04/02
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
be careful! The product price is subject to the actual call back quotation! Manager in charge's phone number: (Manager Pang)
Product Details
be careful! The product price is subject to the actual call back quotation! Manager in charge's phone number: (Manager Pang). This product isDistributed by Pang Yuliang Instrument (Shanghai) Co., Ltd,If you need to purchase, you can log inWWW.HELLOINSTRUMENTS.COMTelephone consultation.

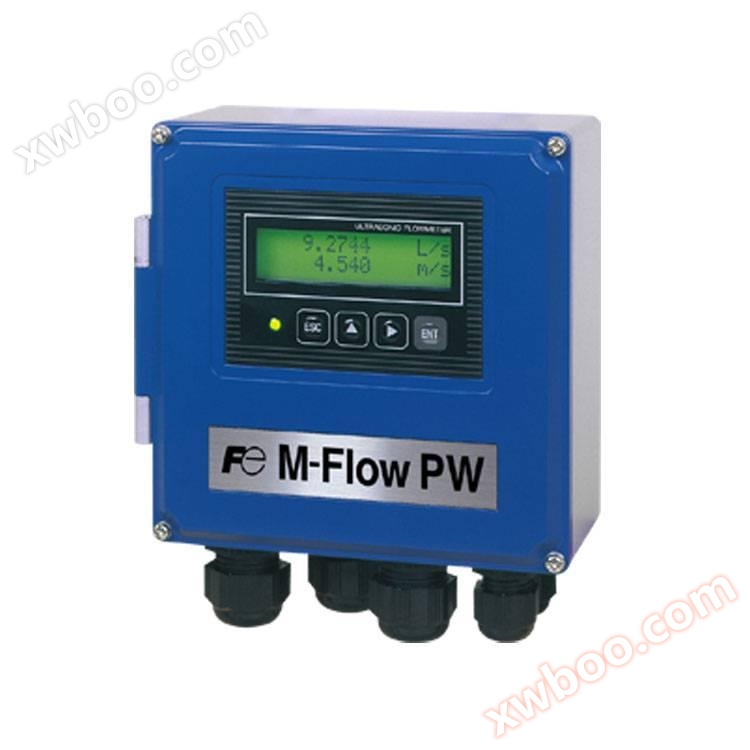

Fuji FLR ultrasonic flowmeter from Japan
Fuji, Japan
Product Introduction of Fuji FLR Ultrasonic Flow Meter in Japan:
Product Model: FLR
Product brand: Fuji, Japan
Product Category: Flow Meter
Product note: Ultrasonic flowmeter
Product Introduction of Fuji FLR Ultrasonic Flow Meter in Japan:

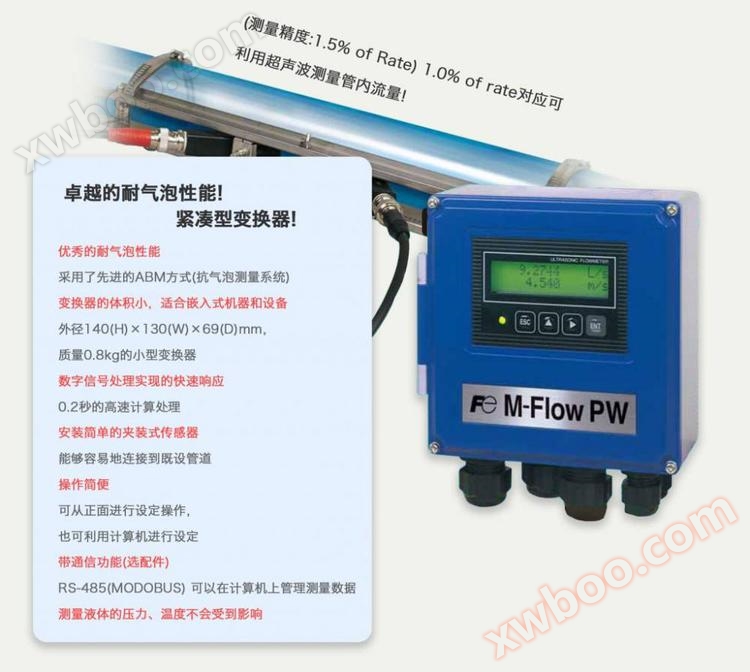

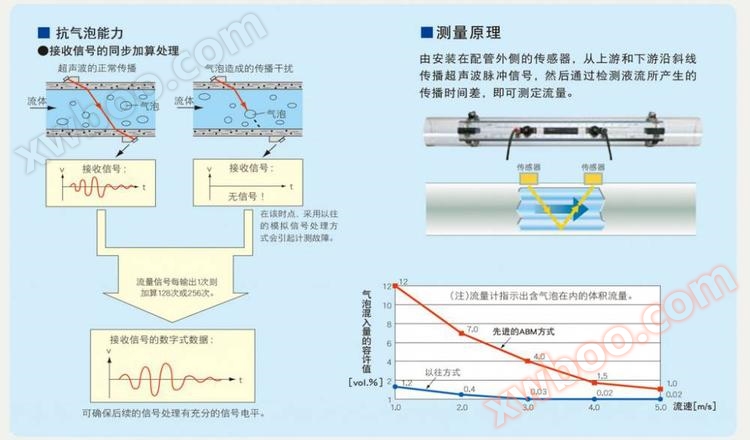

Fuji FLR ultrasonic flowmeter has superior bubble resistance and is suitable for small converters used in mechanical devices. It can measure the liquid flow rate from the pipe diameter of φ 25 to φ 1200mm.
Features of Fuji FLR Ultrasonic Flow Meter from Japan:
The standard accuracy is 1.5% of rate (optional 1% of rate)
Fast response in just 0.2 seconds

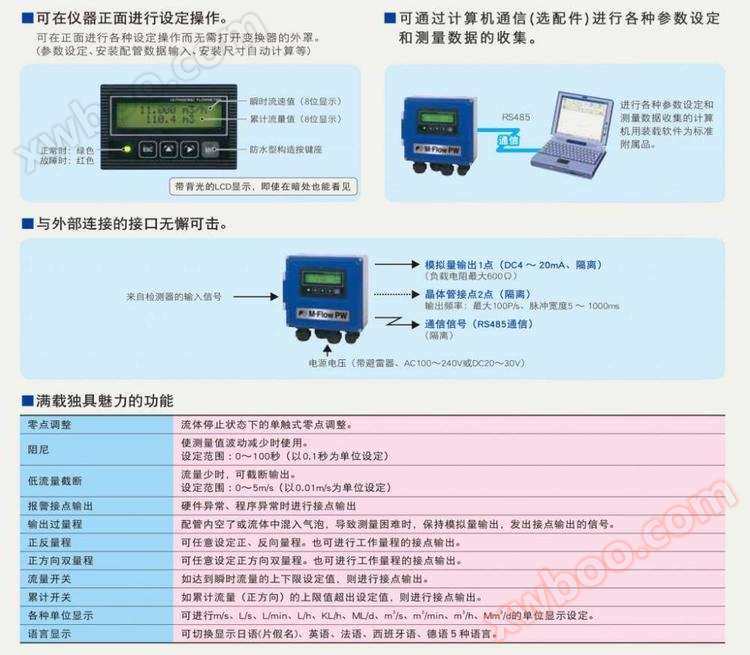

No need to open the converter casing, operation settings can be made from the front
Comes with RS-485 communication function (optional)
PC loader software is standard equipment

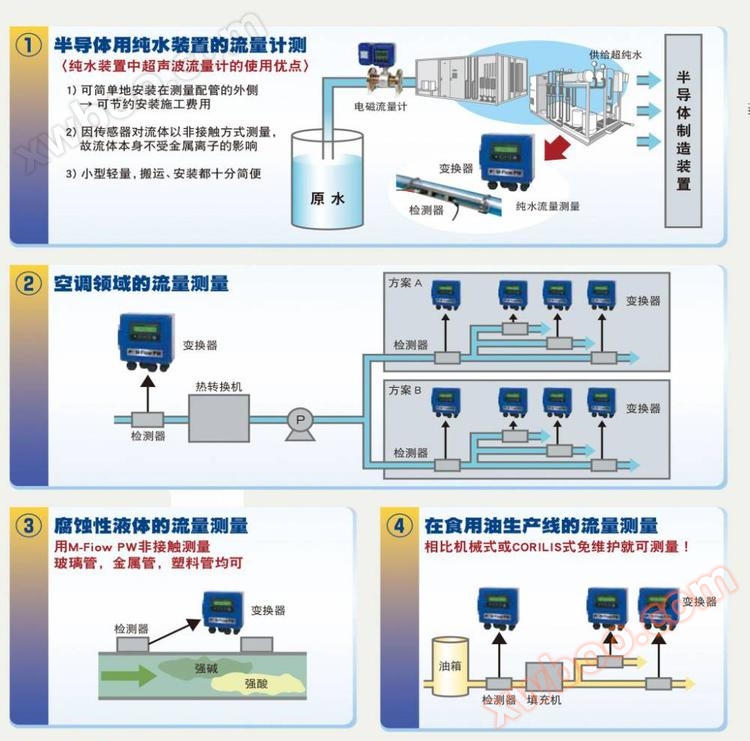

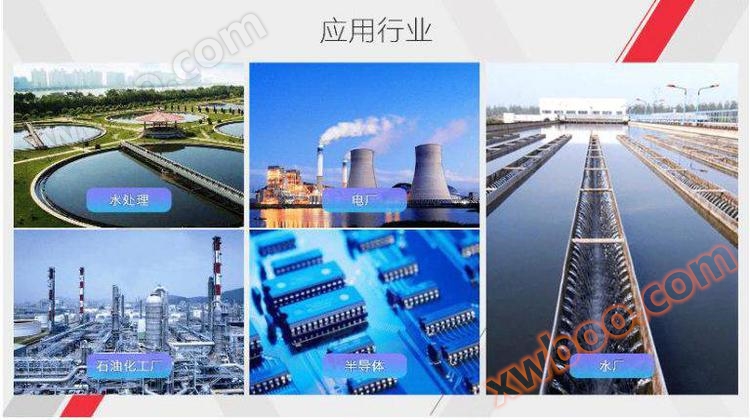

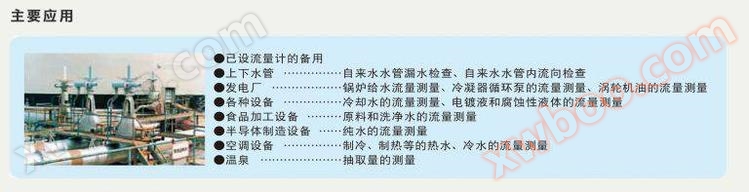

Application of Fuji FLR Ultrasonic Flow Meter in Japan:
Technical parameters of Fuji FLR ultrasonic flowmeter in Japan:
| model | Transformer FSV detector FSS |

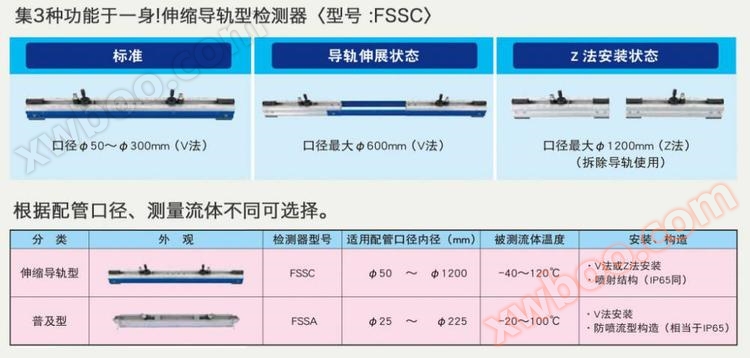

| Applicable pipeline diameter | Inner diameter 25-225mm (detector: FSSA) |
| Inner diameter 50-1200mm (detector: FSSC) | |
| Piping material | Plastic (PVC, PVDF, PP, etc.), metal |
| measuring range | 0～±0.3 ±10m/s |
| accuracy | ± 1.5% of rate or ± 1.0% of rate (when the flow rate is above 2m/s) |
| response speed | 0.2s (in high-speed response mode) |
| Fluid temperature | -20~+100 ℃ (detector FSSA) |
| -40~+120 ℃ (detector FSSC) | |
| ambient temperature | -20~+50 ℃ (converter), -20~+60 80 ℃ (depending on the detector) |
| analog output | DC4～20mA、 1 point (with a load resistance of 600 Ω) |
| Contact output | Open collector output: 2-point, cumulative, alarm, etc |
| 1P/day~100P/s (open collector) | |
| Serial Transmission | RS-485/MODBUS (option) |
| display | LCD (2-line, 16 bit) with backlight |
| keyboard | 4 keys (Esc, Up, Shift, Enter) |
| supply voltage | AC100~240V, 50/60Hz or DC20~30V |
| Transformer shell model | Aluminum alloy IP65 |
| Transformer installation method | Wall installation or pipeline installation |

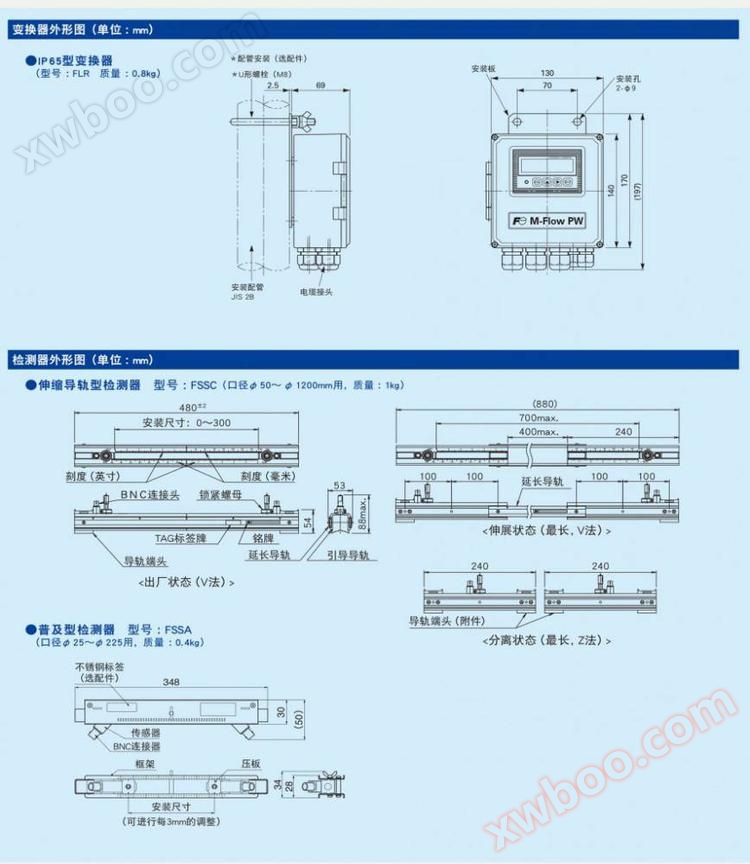

| Transformer external dimensions | H140×W137×D68mm(IP65) |
