G9 Lamp Head Gauge General Gauge 7006-129 Stop Gauge 7006-129A Pin Lamp Head Gauge Lamp Fixture Measuring Tool

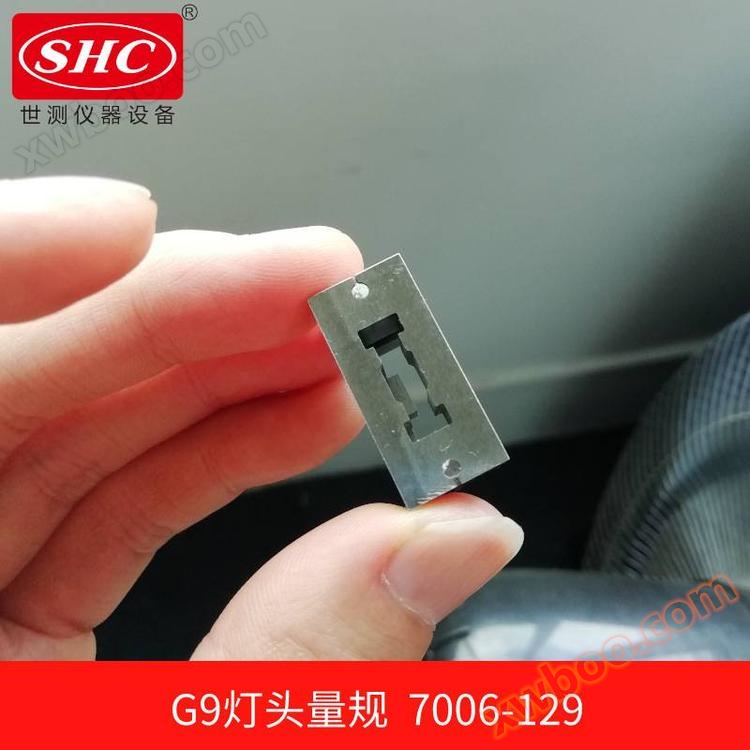

G9 lamp head gauge

Product Name: G9 Lamp Head Gauge

Technical standard: GB 1483/IEC 60061-3

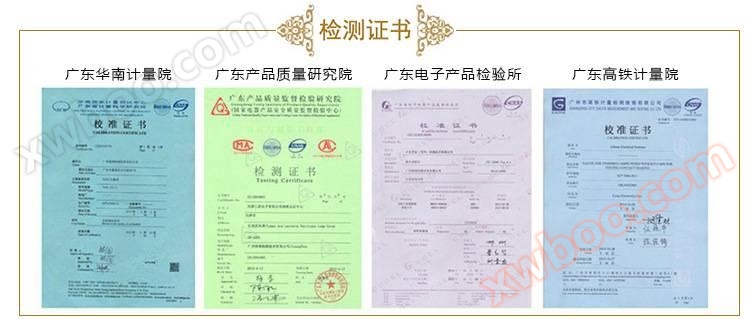

All products are measured and calibrated by testing laboratories with CNAS accreditation (accredited laboratory qualification) and issued with measurement certificates.

Purpose of use:

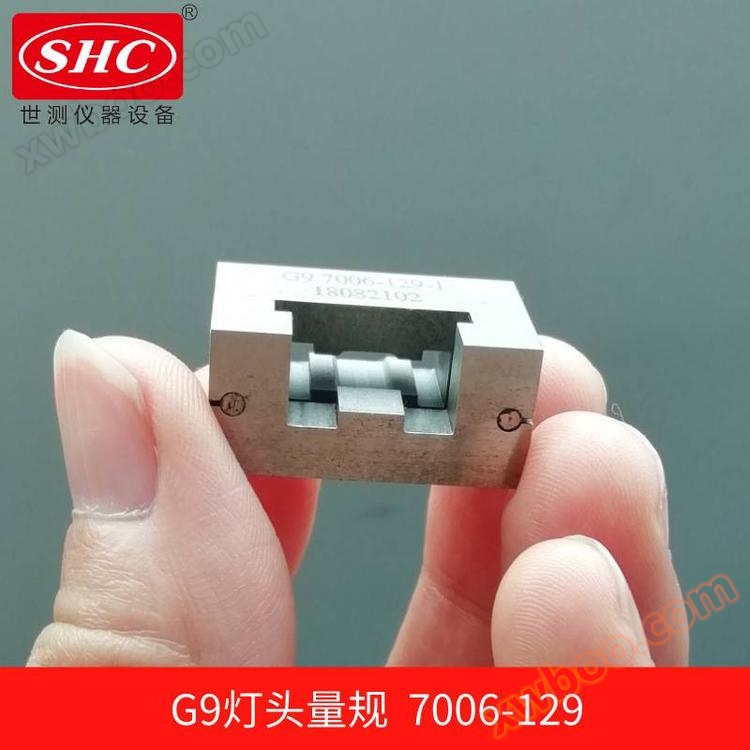

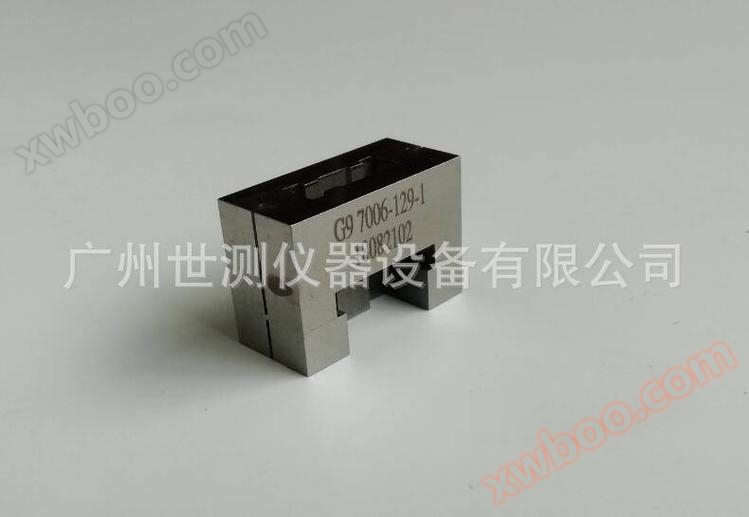

G9 General Specification (Shice Model SC-G9C1)

Purpose: To test whether the external dimensions of the G9 lamp head meet the requirements.

Usage: a) It is required that the lamp head can be smoothly inserted into the gauge until the reference surface of the lamp head contacts the X surface of the gauge.

b) At this position, there are no lamp head contacts beyond the Y side.

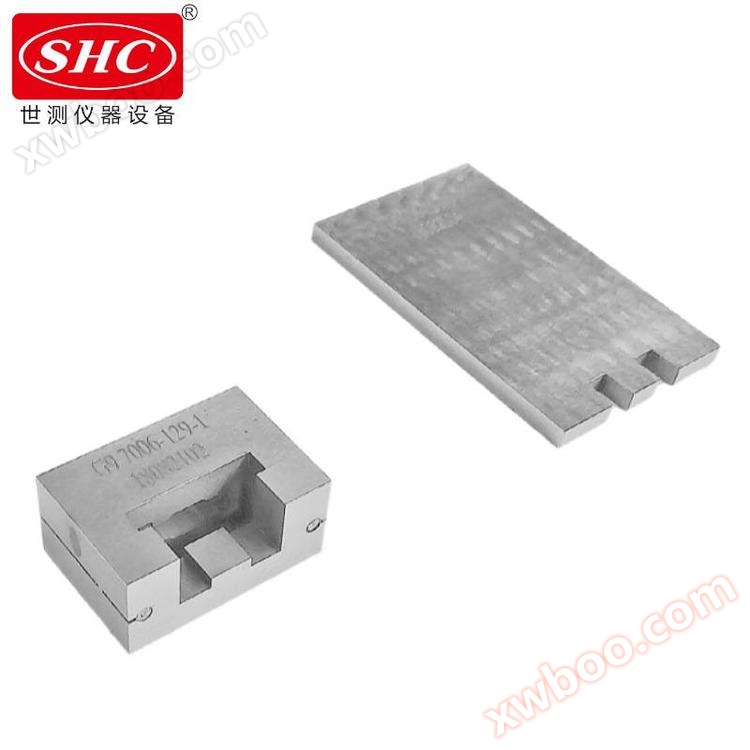

G9 Stop Specification (Shice Model SC-G9C1)

Purpose: To test whether the small G size between the two feet of the G9 lamp head meets the requirements

Usage: It is required that the lamp head cannot be easily inserted into the gauge with force.

Gauge advantages:

1. Material - Made of mold steel imported from Japan.

2. Rust prevention - Advanced rust prevention materials have better rust resistance.

3. High hardness and good performance - Rockwell hardness HRC58 ° or above, not easily worn.

4. Long service life - The gauge has high hardness and good rust prevention performance, with a lifespan 3-5 times longer than ordinary gauges.

5. Thoughtful service -15 day no reason exchange, free repair.

Application scope:

1. It specifies the type, size, purpose of use, and inspection method of the gauges used to test the interchangeability dimensions of the relevant lamp heads and lamp holders.

2. Applicable to the design and manufacture of relevant lamp heads and lamp holder gauges for inspecting the types and sizes of lamp heads produced in accordance with GB/T1406 and the types and sizes of lamp holders produced in accordance with GB/T19148.
