Platinum Ray Steam Vortex Flow Meter - Wuxi Platinum Ray Measurement

NegotiableUpdate on 11/13

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

1、 Overview of Steam Vortex Flow Meter Products: Steam vortex flow meters (also known as vortex flow meters) are mainly used for measuring the flow rate of various media such as gas, liquid, steam, etc. in industrial pipelines. Its characteristics are small pressure loss, large range, high accuracy ..

Product Details

1、 Overview of Steam Vortex Flow Meter Products

Steam vortex flowmeter (also known as vortex flowmeter) is mainly used for flow measurement of industrial pipeline medium fluids, such as gas, liquid, steam and other media. Its characteristics are small pressure loss, large range, high accuracy, and almost unaffected by parameters such as fluid density, pressure, temperature, viscosity, etc. when measuring volumetric flow rate under working conditions. No movable mechanical parts, therefore high reliability and low maintenance. The instrument parameters can remain stable for a long time. The vortex flowmeter adopts a piezoelectric stress sensor with high reliability and can operate within a temperature range of -20 ℃ to+250 ℃. It has both analog standard signals and digital pulse signal outputs, making it easy to use in conjunction with digital systems such as computers. It is a relatively advanced and ideal flow meter.

2、 Product principle of steam vortex flowmeter

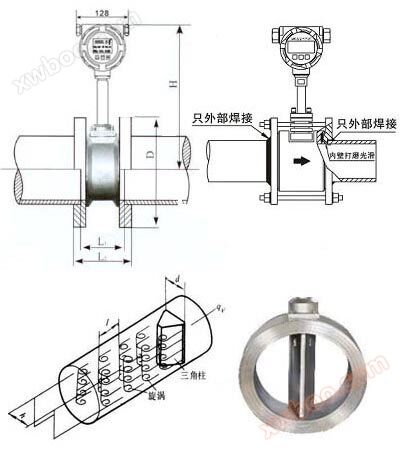

When a triangular cylindrical vortex generator is set up in the fluid, regular vortices are alternately generated from both sides of the vortex generator. This type of vortex is called a Karman vortex, as shown in the right figure. The vortex columns are asymmetrically arranged downstream of the vortex generator, as shown in Figure 1.

3、 Flow Range Table of Steam Vortex Flow Meter

Table 1: Liquids and Gases (Unit: m)3/h)

path （DN）	Liquid flow range （m3/h）	Output frequency range （Hz）	Gas flow range （m3/h）	Output frequency range （Hz）
15	1.2～6.2	90~900	5~25	265~2640
20	1.5～10	40~396	8~50	218~1982
25	1.6～16	32~325	10~70	172~1420
32	2~20	20~250	15~150	130~1350
40	2.5～25	13~130	22~220	115~1147
50	3.5～35	9~93	36~320	96~854
65	6~60	8~82	50~480	61~583
80	10~100	6~65	70~640	45~417
100	15~150	5~50	130~1100	43~367
125	25~250	5~47	200~1700	33~290
150	40~400	4~40	280~2240	27~221
200	80~800	3~33	580~4960	24~207
250	140~1400	3~26	970~8000	20~171
300	200~2000	2~22	1380~11000	17~136

4、 Outline dimension diagram

path

（DN）

（mm）

360

365

370

375

383

100

390

100

125

400

125

145

470

150

165

500

200

196

580

250

235

650

300

255

700

5、 Installation diagram

Precautions

Legend

1. Installation of expansion pipe

For small diameters and large flow rates, it is necessary to expand the pipe installation and ensure that the front straight pipe section of the flowmeter is ≥ 15D and the rear straight pipe section is ≥ 5D

2. Installation of shrink tubing

For large caliber and small flow, it is necessary to install a reduction pipe, while ensuring that the front straight pipe section of the flowmeter is ≥ 15D and the rear straight pipe section is ≥ 5D

3. Installation of bent pipes

If the front end of the flowmeter has a 90 ° elbow or T-shaped joint, it is necessary to ensure that the front straight pipe section of the flowmeter is ≥ 15D and the rear straight pipe section is ≥ 5D

4. Installation of two bent pipes on the same plane

If there are two 90 ° elbows at the front end of the flowmeter, it is necessary to ensure that the front straight pipe section of the flowmeter is ≥ 20D and the rear straight pipe section is ≥ 5D

5. Installation of two curved pipes in different planes

If there are two 90 ° elbows at the front end of the flowmeter, it is necessary to ensure that the front straight pipe section of the flowmeter is ≥ 25D and the rear straight pipe section is ≥ 5D

6. Installation of regulating valve

If regulating valves need to be installed before and after the flowmeter, it is necessary to ensure that the front straight pipe section of the flowmeter is ≥ 25D and the rear straight pipe section is ≥ 5D

VI. Product Selection Table

LUGB

Steam vortex flowmeter

caliber

（mm）

DN10~DN50 (flange type, clamp type, threaded type, clamp type)

DN50~DN150 (clamp type, flange type)

100

DN100~DN300 (flange type, clamp type)

300

DN300 and above are plug-in type

Installation method

clamp-on

Flange connection type

plug-in

compensation method

none

No compensation

Temperature and pressure compensation

Single temperature compensation

Single pressure compensation

measuring medium

liquid

gas

steam

temperature range

Room temperature type (below 120 ℃)

High temperature type (below 250 ℃)

pressure rating

Normal pressure~1.6MPa

2.5MPa

4.0MPa

body material

carbon steel

304 stainless steel

316 stainless steel

power supply method

Two wire system DC24V 4-20mA

Two wire DC24V 4-20mA+HART protocol

battery-powered

Additional options

RS485 MODBUS communication protocol

pulse output

Explosion proof (ExII CT6)
