Power load cabinet, resistor load box, inductive resistive capacitive plug, switch load machine tester, customized Shice SC-FZ60A

NegotiableUpdate on 04/01

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product Overview of SC-FZ60A Power Load Cabinet This load cabinet is based on GB4943-2001、GB2099、GB16915.1、GB7000.1-2003、IEC60884、IEC60320、IEC61058、IEC60669.1 Designed and manufactured in accordance with relevant standards, suitable for testing the breaking capacity and normal operating life of switches in fixed electrical installations for household and similar purposes, as well as for testing the breaking capacity and normal operating life of plugs and sockets for household and similar purposes

Product Details

Power load cabinet SC-FZ60A

Product Overview

The load cabinet is based on GB4943-2001、GB2099、GB16915.1、GB7000.1-2003、IEC60884、IEC60320、IEC61058、IEC60669.1 Designed and manufactured in accordance with relevant standards, suitable for testing the breaking capacity and normal operating life of switches in fixed electrical installations for household and similar purposes, as well as for testing the breaking capacity and normal operating life of plugs and sockets for household and similar purposes.

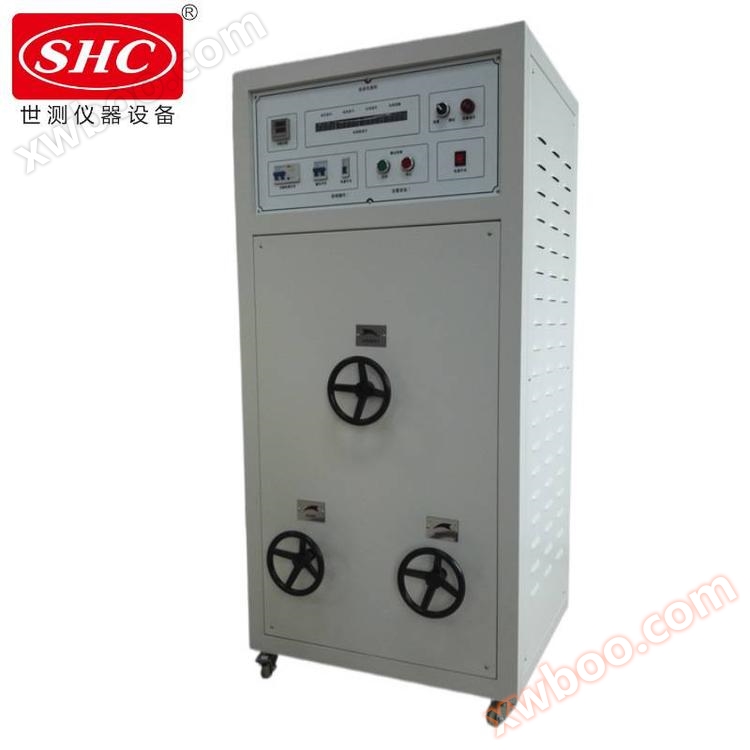

1. The load cabinet adopts light gray sealing plate.

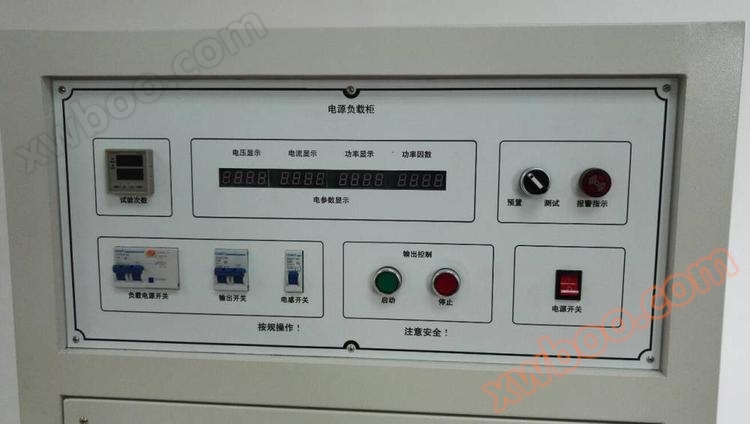

2. Above the front is the sandblasting operation control panel, which includes control power switches, product current, voltage and power, power factor display instruments, load power switches, various status indicator lights, start and stop buttons, capacitance conversion switches, load type conversion switches, and alarms;

4. Below are the voltage output adjustment knobs, current adjustment knobs, and inductance adjustment knobs for each channel.

5. There are two independent loads inside the load cabinet, each with a three in one function of resistive, inductive, and capacitive (fluorescent lamp type) loads, which can be switched through a conversion switch.

6. The interior of the load cabinet adopts strong wind convection cooling.

7. There are terminal posts below the load cabinet, which can be connected to testing equipment such as switch plugs and sockets through wires, and output current, voltage, and power during the testing process.

Main technical parameters and usage environment

serial number	project	parameter	Remarks
1	Meter Power	Grounded single-phase AC220V/50Hz
1	Load Power	Three phase four wire AC380/50Hz (single-phase AC220V, three sets in total)
2	workstation	Two workstations (available)	Capable of 1-6 workstations
3	Digital Display Voltmeter	0～300V、 Accuracy ± 0.5%
4	Digital Display Ammeter	0～60A、精度 ±0.5%	Current can
5	Digital power meter	0～12KW、 Accuracy ± 0.5%
6	Digital power factor meter	0.3-0.999, accuracy ± 0.5%
7	Load mode	Resistive, inductive, capacitive three in one, switchable
8	Capacitive load	70uf, 140uf, 7.3uf are optional
9	Load output	Each load output and interval load output are optional
10	counter	0-999999 times, can be pre-set
11	Load power capacity	3*10KVA
12	Upper limit of output current	60A， When it exceeds 62A, it will automatically cut off
13	Upper limit of output voltage	300V， Automatically cut off the load when it exceeds 305V
14	atmospheric pressure	80~106kpa
15	ambient temperature	5～40°C
16	relative humidity	（20～90）%RH
17	Usage location	No severe shaking or vibration, no electromagnetic interference, no dust No explosive or corrosive gases, good heat dissipation
18	External dimensions and weight	LWH=12007601830mm,800kg
