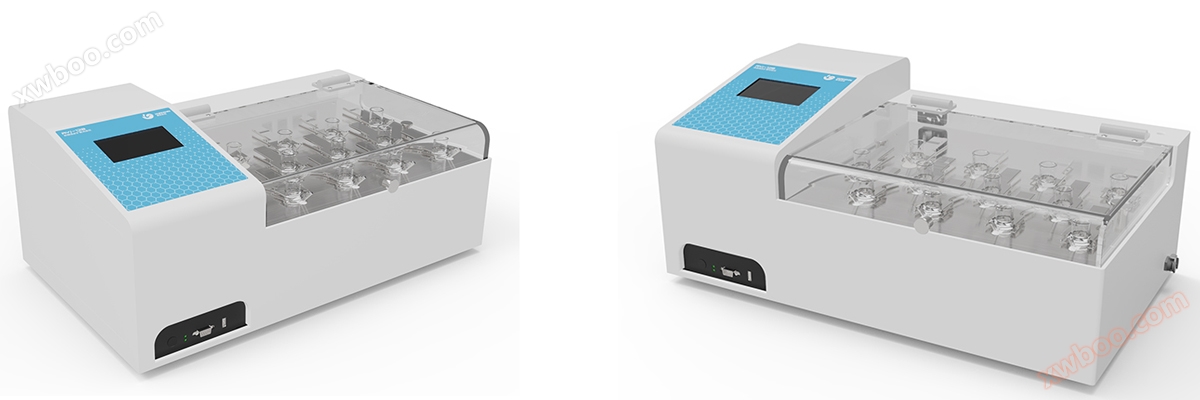

Shanghai Huanghai Drug Testing RYJ-12B Drug Transdermal Diffusion TesterProduct description

The RYJ-12B drug transdermal diffusion tester is a product jointly developed by our company and the National Engineering Research Center for Advanced Pharmaceutical Manufacturing. Adopting an improved vertical Franz diffusion cell, the membrane is sandwiched between the diffusion cell cover (supply body) and the diffusion cell cup (receiver body), and the inner surface of the membrane is immersed in an isotonic solvent. A constant temperature circulating water bath maintains the constant temperature working state of the diffusion cell, and constant speed magnetic stirring ensures the uniform distribution of the isotonic solvent. The slow permeation of biological membranes/skin and artificial membranes objectively reflects the drug penetration and release process of transdermal formulations.

12 sets of improved vertical Franz vertical diffusion tanks.
Magnetic drive, stable and reliable, with consistent stirring speed, ensuring uniform concentration distribution of the exudate.
Unique constant temperature water circulation design ensures uniform temperature throughout the entire infiltration system.
The insulation cover design ensures the minimum temperature deviation throughout the entire testing process.
The test report can be printed or output via USB through the device interface.
Touch based human-computer interaction interface, easy to operate.
The bilingual operation interface in Chinese and English can meet the needs of more users.

Shanghai Huanghai Drug Testing RYJ-12B Drug Transdermal Diffusion TesterTechnical Specifications

Product model: RYJ-12B
Product Code: 10110100
Number of vertical diffusion tanks: 12 sets
Vertical diffusion pool volume: 8ml
Transdermal diffusion area: approximately 2.2cm²
Speed setting range: 100~800RPM
Steady speed error: ≤ 1% soil
Temperature regulation range: Room temperature~45.0 ° C
Temperature resolution: 0.1C
Temperature control accuracy: ≤± 3
Sampling frequency: ≤ 15
Sampling timing time: ≤ 9999 minutes
Power supply: AC220V ± 10% 50Hz
