Overview

The IK vertical drop hammer test device SC-DL11 complies with the TestEhc in GB2423.55 and IEC60068-2-75 standards. The vertical drop hammer is used for testing the mechanical strength of the casing of household and similar electrical appliances, as well as for testing the impact resistance of lamps. The sample range includes household and similar electrical appliances, plugs and sockets, lamp structures and functions, and cantilever frames

Product Details

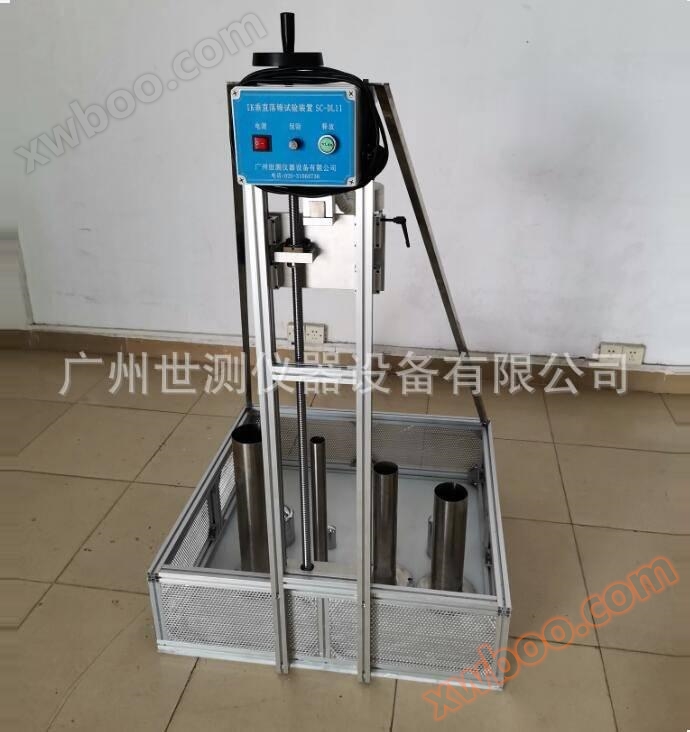

IK Vertical Drop Hammer Test Device SC-DL11

Compliant with the Test Ehc: Vertical Drop Hammer in GB2423.55 and IEC60068-2-75 standards

Purpose: Mechanical strength testing of enclosures for household and similar electrical appliances, as well as drop impact testing for lighting fixtures

Sample scope: household and similar electrical appliances, plugs and sockets, lighting fixtures

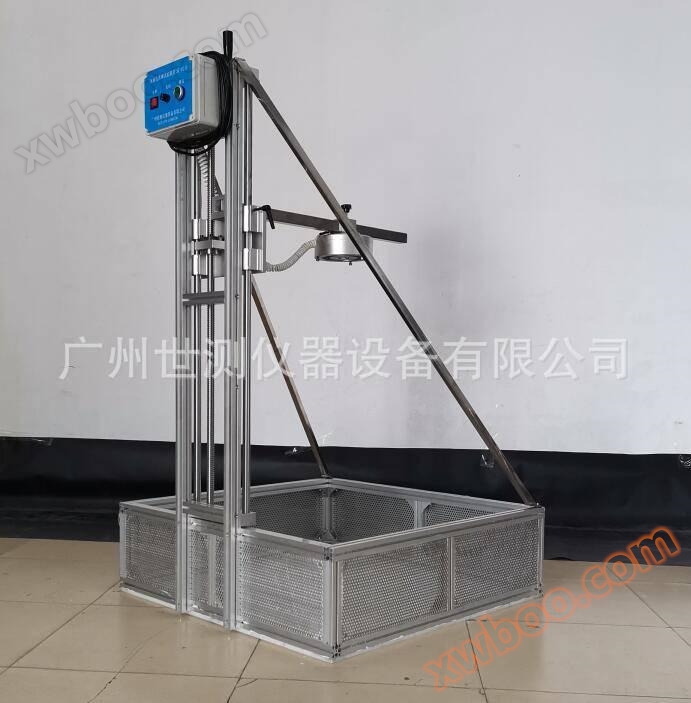

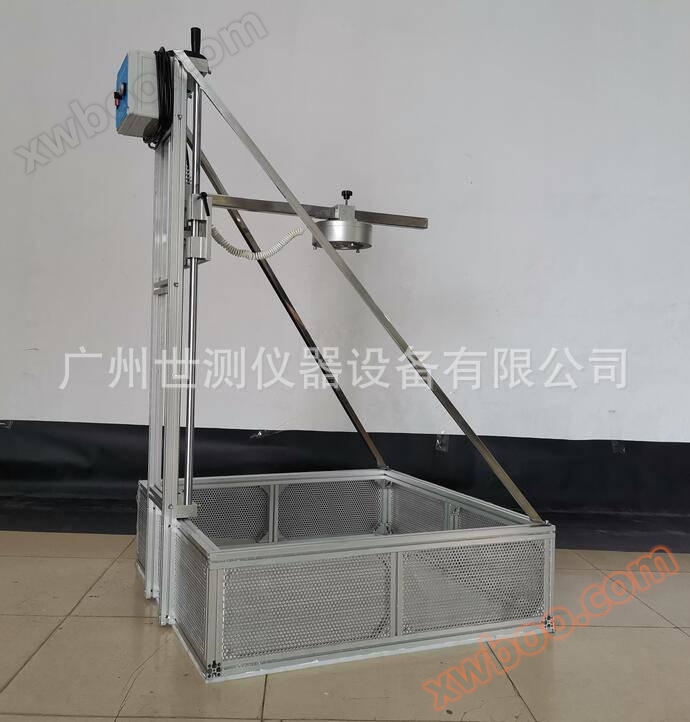

Structure and function: Cantilever frame, releasing impact elements through electromagnets, fixing the height of the drop impact through conduits

Release method	Electromagnetic release
baseplate	Nylon base plate thickness 8mm, hardness HRR85-10800m × 800m
drop height	0-800mm adjustable
Guardrail height	200 mm
Impact Hammer Head	2、5、10、20、50J
meet the standard	GB2423.55

The comparison of impact energy, equivalent mass, and drop height is shown in the following table:

drop height

Energy/J	0.14	0.2		(0.3)	0.35	(0.4)	0.5		0.7	1	2	5	10	20	50
Equivalent mass/kg	0.25	(0.2)	0.25	(0.2)	0.25	(0.2)	(0.2)	0.25	0.25	0 .25	0.5	1.7	5	5	10
Drop height ± 1% mm	56	(100)	80	(150)	140	(200)	(250)	200	280	400	400	300	200	400	500
