The electric actuator for mining water distribution gate valve is compact, lightweight, easy to disassemble and repair, and can be installed at any position. Simple and compact structure, low operating torque, and quick rotation opening. The flow characteristics tend towards a straight line, with good regulation performance. If equipped with explosion-proof electric actuators for mining, they can be widely used in coal mining environments.

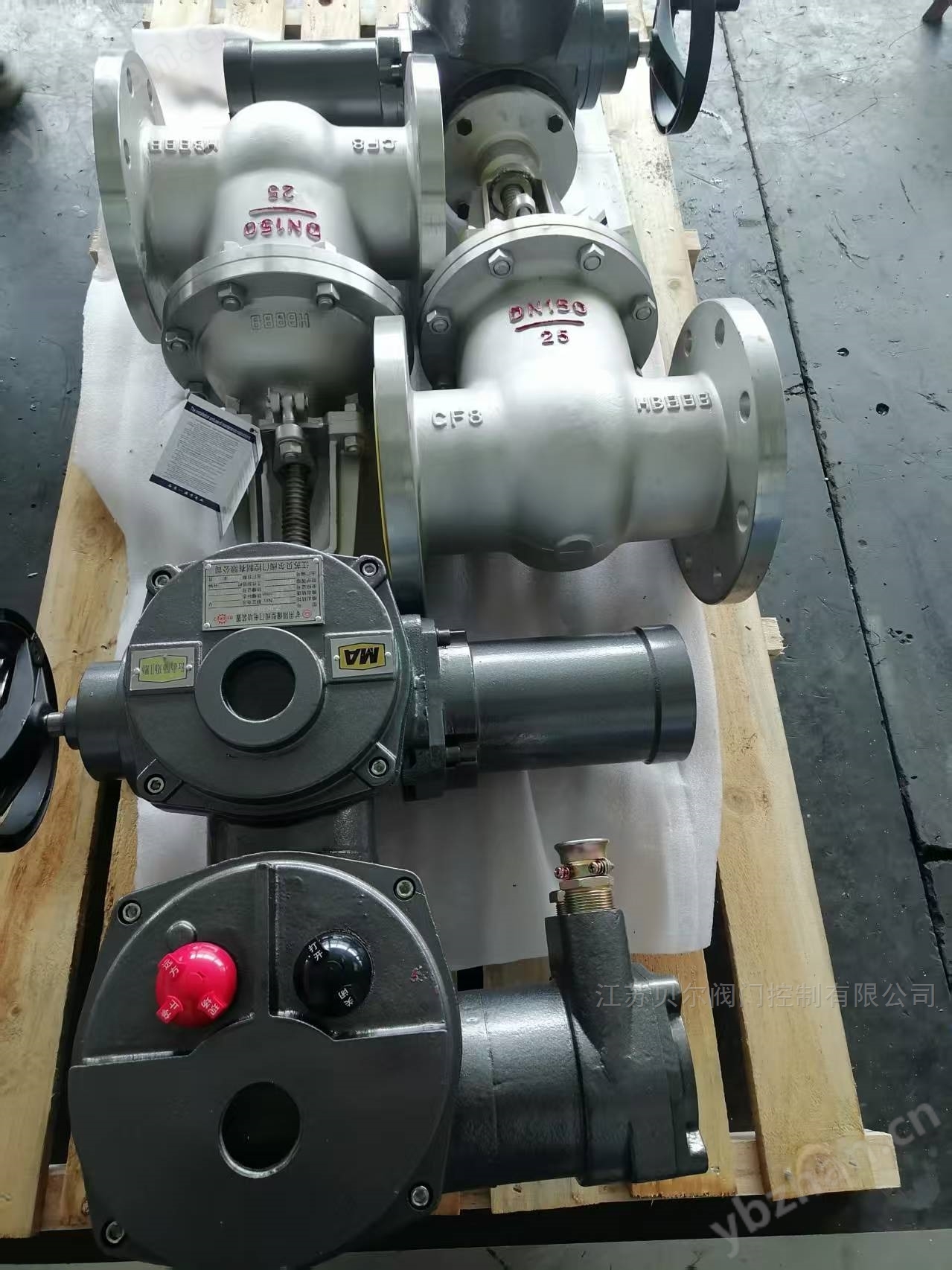

Special electric actuator for mining water distribution gate valve
Working environment and main technical parameters:
The explosion-proof type is mining explosion-proof type, with the explosion-proof mark of Ex d Ⅰ.
Power supply: Conventional, three-phase 380V (50Hz)
Special, three-phase 660V, 415V (50HZ, 60HZ);
Single phase 220V, 110V (50HZ, 60HZ)
Environmental temperature: -20~+60 ℃ (special orders -40~+80 ℃)
Relative humidity: ≤ 95% (at 25 ℃).
Protection type: Outdoor type, used in places without flammable, explosive, and non corrosive media
Protection level: IP55 (special orders IP65, IP67)
Work schedule: Short 10 minutes (30 minutes for special orders)

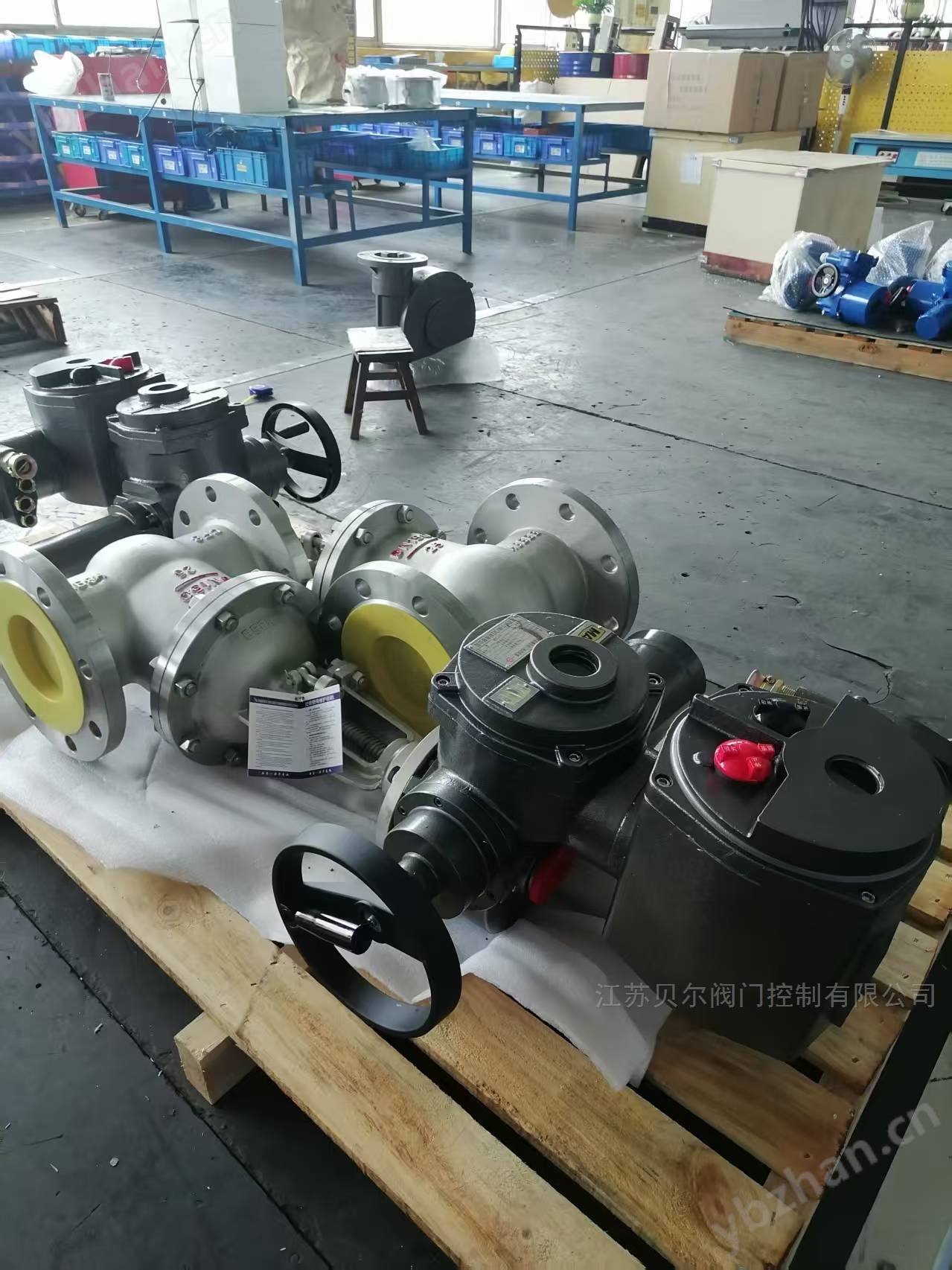

Special electric actuator for mining water distribution gate valve
1. Complete design series: intelligent, switch type, various signal output types, etc. can meet the needs of various automation controls.
2. Compact size and elegant appearance: The shell is made of aluminum alloy die-casting, with smooth lines and a volume and weight equivalent to only 35% of similar products.
3. Reasonable structure and strong universality: The motor is directly installed, integrated output, and intelligent control module is integrated into the electric actuator, which can meet the needs of various supporting functions.
4. Multiple power sources and speeds: can meet the needs of various working conditions.
5. Multiple protections, easy to use: overheating protection, overload protection, dual limit. No refueling, dust-proof, waterproof, rust proof, can be installed at any angle.
The integral mining explosion-proof electric flange gate valve is suitable for flammable and explosive occasions, with high safety factor, strong operating function, and stable performance. There are two types of explosion-proof products, dI and dIIBT4. dI is suitable for non mining working faces in coal mines; DIIBT4 is used in factories and is suitable for explosive gas mixtures in IIA and IIB level T1 to T4 environments. The performance of the integral mining explosion-proof electric flange gate valve meets the requirements of JB/T8528-1997<Technical Conditions for Electric Devices of Ordinary Valves>. The performance of the explosion-proof type meets the requirements of GB3836.1-2000<General Requirements for Explosion proof Electrical Equipment for Explosive Environments>and JB/T8529-1997<Technical Conditions for Explosion proof Valve Electric Devices>. And it has been verified by the National Explosion proof Electrical Product Testing Center and obtained an explosion-proof certificate.
