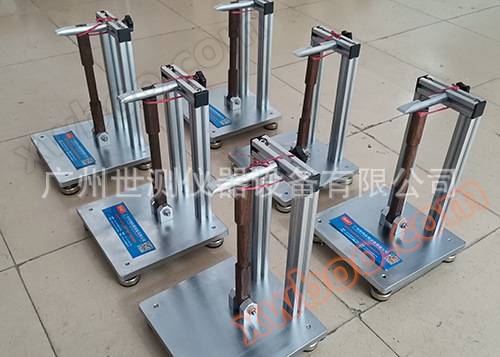

Hammer test device SC-CJ60

GB/T 2694 Appendix B Hot dip galvanized coating adhesion test, drop hammer test method

GB/T2694 Appendix B Adhesion Test for Hot Dip Galvanized Coatings - Drop Hammer Test Method Figure B.1 Hammer Test Device

Steel component galvanized layer adhesion performance tester Hammer impact test device Hot dip galvanized layer adhesion tester Drop hammer impact test machine

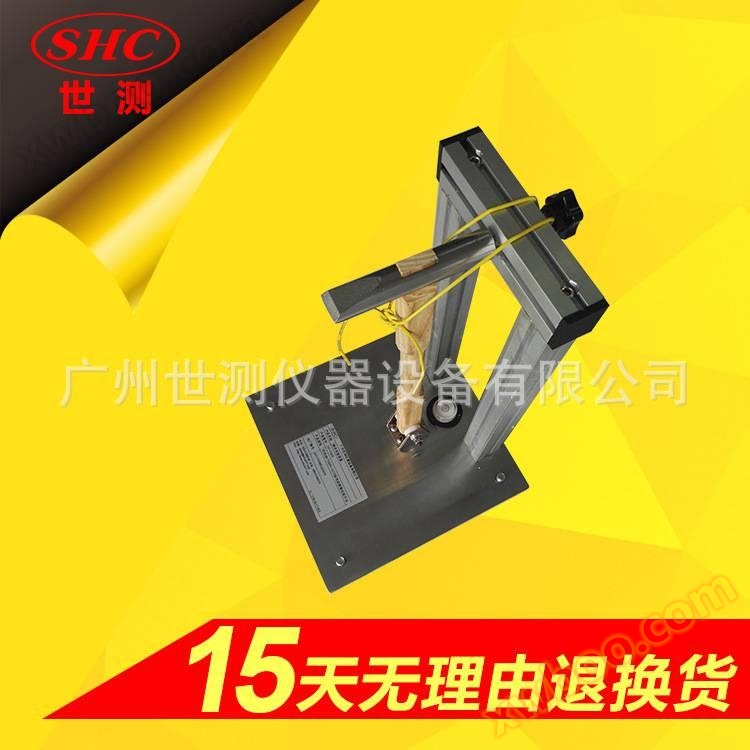

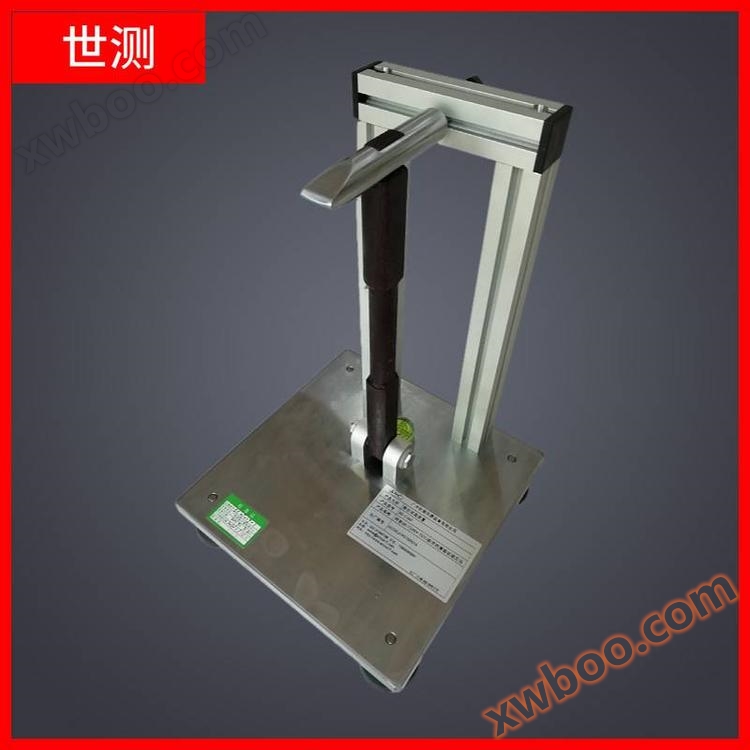

Product Overview:

The steel component galvanized layer adhesion performance tester is suitable for hot-dip galvanized layer adhesion testing. It uses a hammer to freely drop and strike the sample to test the adhesion performance quality of the galvanized layer for evaluation. The product complies with JT/T684-2007 "Steel Component Galvanized Layer Adhesion Performance Tester" and JT/T281-2007 "Highway Waveform

The technical indicators in the appendices of "Beam Steel Guardrail" and JT/T374-1998 "Technical Conditions for Isolation Fence", as well as the drop hammer test method in GB/T2694-2010 "Technical Conditions for Manufacturing Transmission Line Towers".

This test device complies with the drop hammer test method of GB/T2694-2010, YDT757 and other standards, and is suitable for the adhesion test of hot-dip galvanized layers. It uses a hammer head to freely drop and strike the sample to test whether the galvanized layer meets the standards.

This product is suitable for manufacturers and quality inspection departments of iron towers to conduct product quality testing and control.

Technical Specifications:

1. Complies with Appendix B of GB/T 2694-2010 Technical Conditions for Manufacturing Transmission Line Towers - Methods for Adhesion Test and Drop Weight Test of Hot Dip Galvanized Coating.

2. Hammer head. Material: 45 steel, mass: 210g ± 1g

3. Hammer handle material: oak, weighing approximately 70g

4. Base: Thickness 15mm, Length and Width: 250X250mm, Material Q235-A

5. Vertical height from the centerline of the hammer head to the base surface: 300mm ± 1mm

Usage:

1. The experimental setup is shown in Figure B.1. The hammer used for the experiment should be installed on a fixed wooden test bench, and the test surface should be kept at the same height as the hammer base.

2. Adjust the device according to the table level to make it horizontal, adjust the sample, and place the sample horizontally so that the distance between the striking point and the edge, corner, and end of the sample is not less than 10mm. The hammer head faces the center of the platform, and the hammer handle is perpendicular to the base plane before falling freely. Strike 5 points in parallel at intervals of 4mm. Check the surface condition of the galvanized layer to ensure it meets the standard requirements, and do not repeatedly strike at the striking point.
