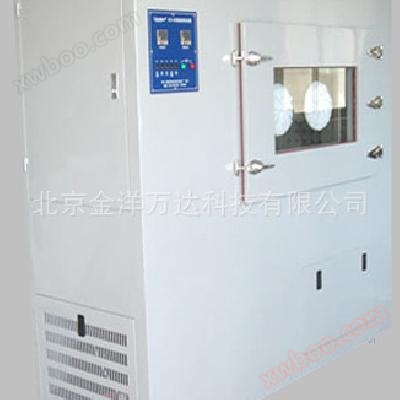

Temperature and humidity calibration box model: XLS-III Jinyang Wanda

Temperature and humidity calibration box model: XLS-III Jinyang Wanda

Product Introduction
The XLS-III temperature and humidity calibration box is a temperature and humidity calibration device developed using the classic dual temperature humidity generation principle. The outer door of the calibration box is equipped with a large observation window and a transparent inner door, and glove holes are set up for users to perform various operations such as reading and calibration. It has the characteristics of good temperature and humidity stability, large working area volume, and easy operation, and is suitable for the calibration and verification of various mechanical and electronic temperature and humidity meters, temperature and humidity recorders, and hygrometers. Its performance is superior to the requirements of JJG205-2005 Mechanical Temperature and Humidity Meter Calibration Regulations; And calibration reports can be provided by the China Institute of Metrology or the Shanghai Institute of Metrology and Testing Technology. It can be used in conjunction with standard ventilation hygrometers and other standard instruments to form a calibration device.

Technical Indicators:

Temperature range: (5-50) ℃

Humidity range (20 ℃): (40-90)% RH

Temperature fluctuation: ± 0.1 ℃

Temperature uniformity: better than 0.2 ℃

Humidity fluctuation: ± 0.5% RH

Humidity uniformity: better than ± 1.0% RH

Wind speed inside the box: ≤ 0.2 m/s

Work area size (length * width * height): 200 × 470 × 850 (mm)

Capacity: 480L

Dimensions (length * width * height): 1750 × 680 × 1700 (mm)

Environmental temperature: (10-25) ℃

Company commitment: Quality service commitment:

1. Warranty period of one year, lifetime free maintenance.

During the warranty period, except for human factors, we will repair or replace any defects or malfunctions caused by improper instrument design, materials, or processes free of charge.

3. Upon receiving notification from the user that the provided instrument has malfunctioned, respond within ten minutes

4. Ensure timely provision of necessary spare parts and vulnerable parts to users at discounted prices
