One purpose

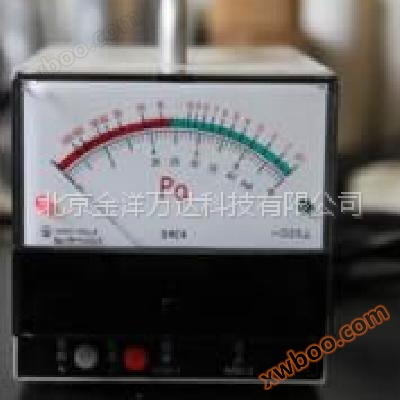

The 54D thermocouple vacuum gauge consists of ZJ-54D high stability thermocouple tube and electronic control unit, which can be widely used for measuring and controlling low vacuum degrees in scientific research and production. Due to the use of highly stable thermocouple gauges, the measurement readings are accurate, the response is fast, and the anti pollution ability is strong, ensuring the reliability of vacuum measurement readings. This instrument is particularly suitable for measuring vacuum degree on refrigerator and air conditioning production lines. In addition to directly indicating the vacuum level by the electric meter, it can also pre-set the required vacuum level points (such as 13 Pa) for refrigerators and air conditioners during the production process, making it easy for production personnel to intuitively control the operation based on the switching of traffic lights on the control instrument, ensuring the quality of refrigerator and air conditioner products.
II Environmental conditions for use
1. Room temperature: 0~50 ℃
2. Relative humidity: 80%
III Specification
1. Measurement range: 0.1~200 (Pa)
2. Indication error: 1-100 (Pa) 50%
3. Dimensions: 160 × 120 × 120 mm
4. Net weight of the instrument: 2.2 kg
5. Installation hole spacing: 10080 mm
M64 screws must not penetrate more than 15mm into the chassis (installed at the bottom of the chassis). Front panel size: 120mm, 120mm

Company commitment: Quality service commitment:

1. Warranty period of one year, lifetime free maintenance.

During the warranty period, except for human factors, we will repair or replace any defects or malfunctions caused by improper instrument design, materials, or processes free of charge.

3. Upon receiving notification from the user that the provided instrument has malfunctioned, respond within ten minutes

4. Ensure timely provision of necessary spare parts and accessories to users at discounted prices
