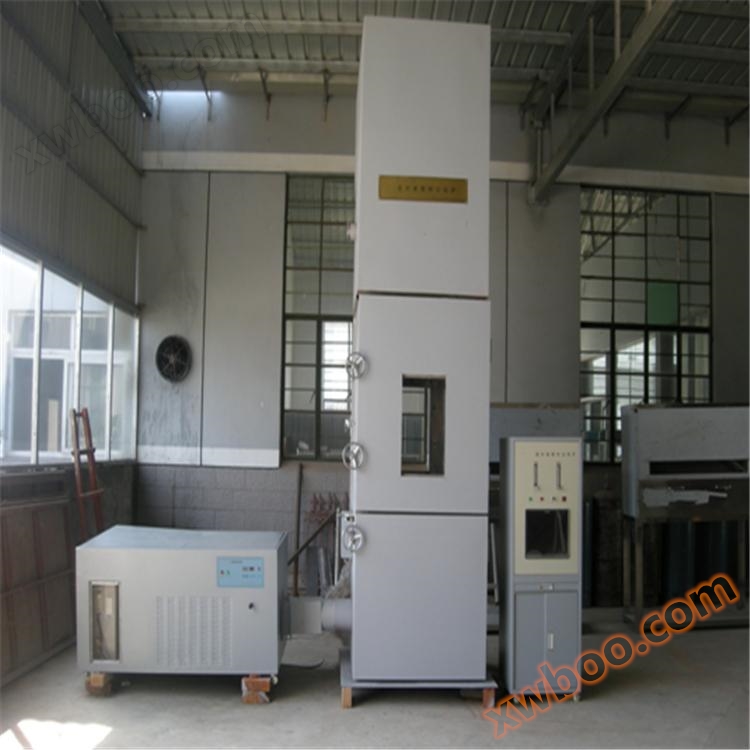

WNR-ITest furnace for flame retardancy of building materials

Product Introduction

The flame retardant test furnace for building materials produced by our company meets the technical requirements of the national standard GB/T8625-2005 and is suitable for flame retardant testing of building materials. Conduct a combustion test on the specimen using a specific combustion vertical furnace, and determine whether its combustion performance meets the characteristics of flame retardancy based on the remaining length of the specimen.

lMain technical parameters and functional features

1. Adopting computer control with high degree of automation;

2. The furnace body is made of stainless steel with a thickness of 1.5 mm;

3. Equipped with high-power constant temperature and current device, fast constant temperature and accurate flow rate;

4. Environmental temperature: 19-30 ℃;

5. Furnace wall temperature: room temperature to 100 ℃± 1 ℃;

6. Furnace temperature: room temperature to 300 ℃± 2 ℃;

7. Inlet temperature: 0-50 ± 0.5 ℃;

8. Pressure difference: 0-30Pa ± 1Pa;

9. Inlet flow rate: 0-15m3/min ± 1 m3/min;

10. Flow meter range: 0-45L/min ± 0.2L/min;

11. Constant temperature: (23 ± 2) ℃, accuracy ± 0.5 ℃;

12. Constant flow rate: (10 ± 1) m3/± min;

13. Gas source: Industrial methane, purity ≥ 95%;

14. Working voltage: AC 220V ± 10%, 50Hz, 3.5KVA.
