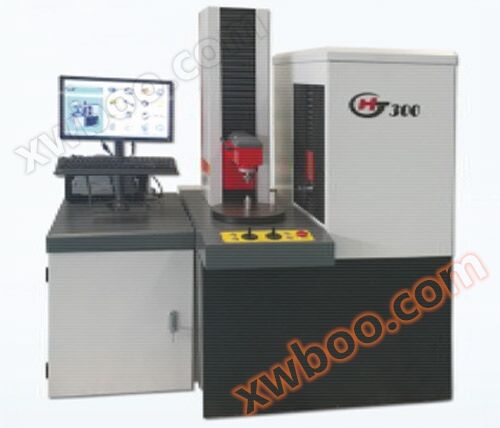

HT series gear measurement center

NegotiableUpdate on 07/29

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The HT type gear measuring center can measure spur and helical cylindrical gears, rolling cutters, razors, cutters, worm gears, worm gears, spur bevel gears, bevel gears, etc

Product Details

Instrument usage

The HT type gear measuring center can measure spur and helical cylindrical gears, rolling cutters, razors, cutters, worm gears, worm gears, spur bevel gears, bevel gears, etc. Widely used for precision testing in automobiles, motorcycles, machine tools, electric tools, instruments, research departments, and factory metrology rooms.

Instrument characteristics

The HT type gear measurement center adopts the principle of electronic generating measurement, high-precision motion control integrated machine, natural marble base, imported high-precision rolling guide rail, fully closed-loop high dynamic response motion control system, high-precision microsensor, height data acquisition and processing system, etc. The main structure is reasonable, the rigidity is excellent, the measurement accuracy is high, the indication is stable, and the appearance is beautiful.

The measurement host adopts a four coordinate axis measurement system, the rotary axis is driven by a split type direct drive motor from the United States, the linear axis is driven by a Japanese AC servo motor, the rotary axis grating adopts a Heidelberg circular grating from Germany, the linear axis grating adopts a Renishaw linear grating from the United Kingdom, and the measuring head adopts a Swiss TESA sensor with fully closed-loop motion control.
