Industrial process photometer

Industrial process photometer

Product Introduction

It is advisable to use an industrial process photometer firstCan continuously measure turbidity, trace water, oil in water, water in oil, and trace waterThe main principle is that a beam of parallel light is incident vertically, penetrates the medium and is scattered by particles inside the medium. The scattered light and transmitted light are detected by the detector, and the ratio of scattered light intensity to transmitted light intensity is proportional to the particle content inside the medium. This controller has four fixed ranges and also a variable range. The 3-digit LED digital in front of the controllerThe measurement result displayed on the tube is a percentage of the measuring range.

Product advantages

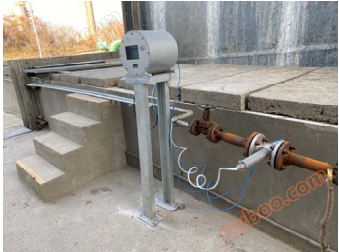

1. In situ installation, no need for pre-treatment sampling
2. Real time display with a response time of 0.1 seconds.
3. Completely maintenance free
4. Pressure can reach 32Mpa, temperature 320 ℃

Technical Specifications

Measurement principle: 1 channel - near-infrared absorption 2 channels - near-infrared scattering
Measurement wavelength: 730nm-970nm
InspectionMeasurement end: 1 silicon photodiode (absorption)
8 silicon photodiodes (11 ° scattering)
Near infrared absorption: 0-0.05 to 5CU, 0-50 to 8000ppm (DE)
QuantityCheng:0-20 to 3200FTU, 0-5 to 800EBC
Near infrared scattering: 0-0.5 to 500ppm (DE) 0-0.2 to 200FTU
QuantityCheng:0-0.05 to 50EBC
OPL：10-60mm, Standard 40mm
LightSource: Special tungsten filament lamp 5.0VDC, lifespan: ≥ 2 years
DivideDistinguishRate:<0.05% of each range
PrecisionDegree:<0.3% of each range (scattering)
Protection level: IP65 or higher
Wetting materials: 316L, 316Ti, Titanium 3.7035, Ha C, PTFE, etc
Window material: 1- Sapphire with self-cleaning function
Connection size:DN6-DN300 (other sizes to be ordered)
Process temperature: Long term: -30-120 ° C High temperature type: -30-320 ° C
Environmental temperature: -30-55 ° C during operation: -30-70 ° C during transportation
DefenseExplosive:EXdIICT6
SchoolAccurate: Factory zero point, no need for calibration for life

Power supply: 220VAC

Existing instance material analysis

• Trace amounts of water in aviation kerosene, diesel, gasoline, and lubricating oil
• Nitrochlorobenzene trace water
• Trace water of propylene
• Trace styrene water
• Trace water in liquefied natural gas (petroleum gas)
• Trace water in electrolyte
• Epichlorohydrin trace water
• Trace amounts of water such as methanol, phenol, formaldehyde, etc
• Organic compounds such as benzene and MTBE contain water
• Formic acid, acetic acid, methanol, ethanol containing water
• Formaldehyde, acetaldehyde, and dichloropropanol contain water
• Caprolactam contains water
• Epichlorohydrin contains water
• Concentration of caustic soda, hydrochloric acid, saline water, etc


Application field

1. Leakage detection of heat exchanger (oil and water, oil and oil, organic matter and water)
2. Control of moisture, chromaticity, and concentration of process media
3. Control of various metal ion concentrations
4. Concentration and turbidity control during polymerization, crystallization, filtration, and centrifugation processes
5. Concentration analysis of alkalis, acids, solvents, salt solutions, emulsions, suspensions, etc
6. Phase monitoring
