Overview of ultrasonic humidifier in maintenance room

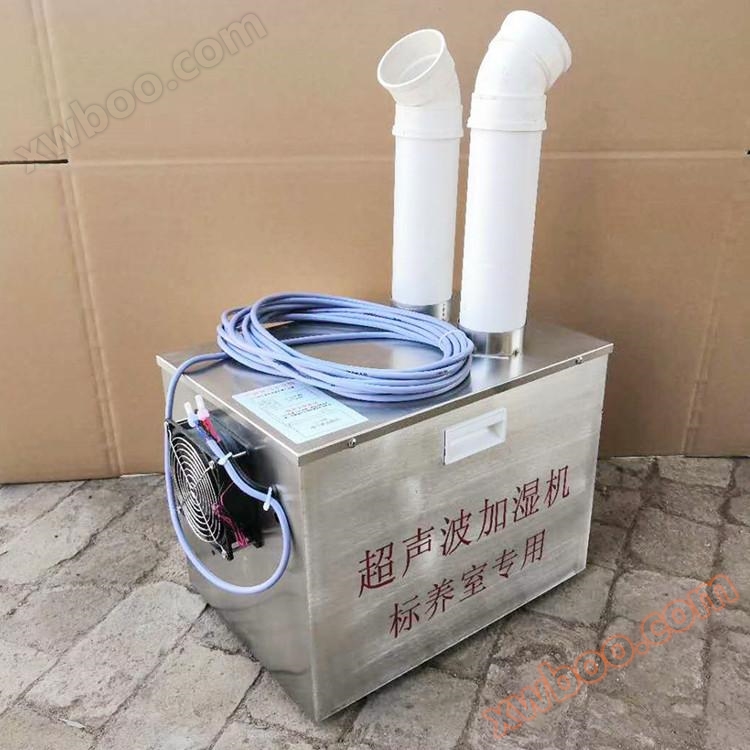

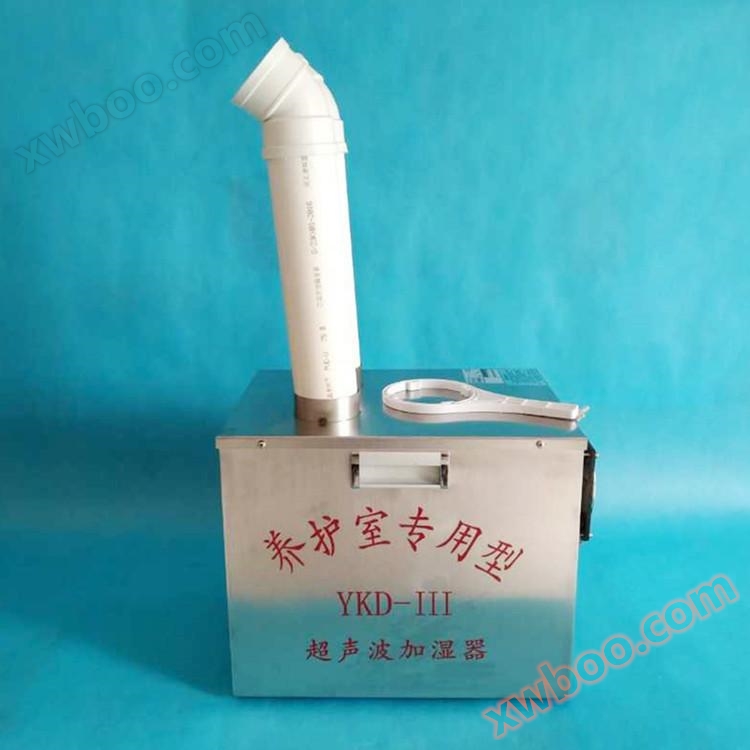

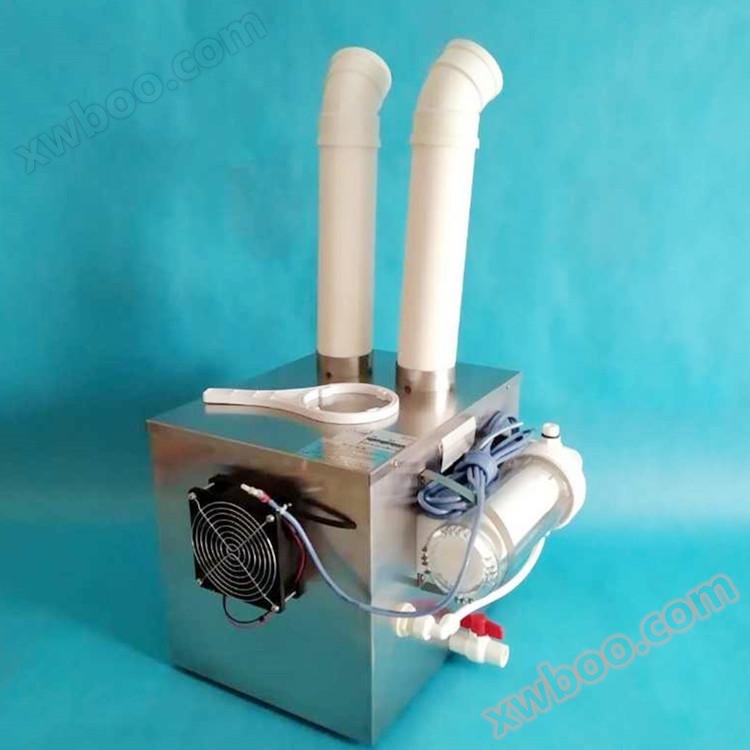

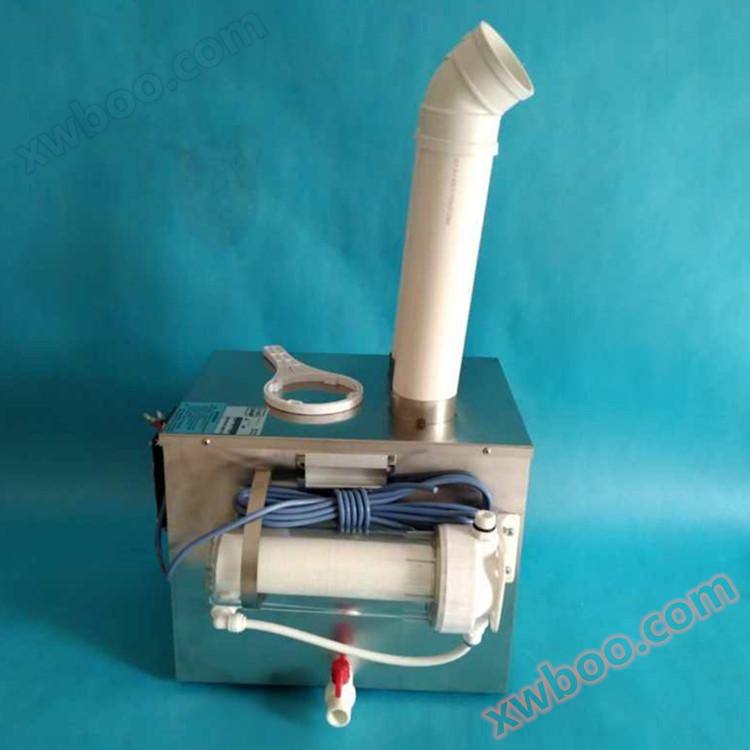

The maintenance room dedicated ultrasonic humidifier adopts an integrated ultrasonic core without mechanical drive. Low noise, high atomization efficiency, large humidification capacity, producing a certain concentration of negative ions. Supplier Cangzhou Zerui Testing Instrument Co., Ltd. has a low failure rate, simple maintenance, and easy use. The box is made of two materials, ABS engineering plastic or stainless steel, and the surface is treated with metal paint spraying, which has a beautiful and practical appearance. Equipped with standard inlet valve and water purification filter, it protects the cleanliness of water and improves the service life and atomization efficiency of the humidifier. In order to ensure electrical safety, the power supply adopts 220V AC and outputs 48VDC DC low voltage power supply, ensuring the safety of users' use.

Ultrasonic humidifiers are ideal humidification control equipment required in laboratories and production workshops such as highways, bridges, railways, water conservancy, building construction projects, medical and health care, light industry textiles, food processing, etc., which require high humidity.

Main technical indicators of ultrasonic humidifier in maintenance room

1. Atomization volume: 3000ml/hour Atomized particle diameter: 1-10 u

2. Applicable volume: 30-100 ㎡. Specification of transducer: Φ 20mm

3. Power supply voltage: AC220V. Converter lifespan: 3000-5000 hours

4. Working voltage: DC48V Working temperature: 5-50 ℃

5. Working current: 4.4-4.8A Power: 250W

6. Volume: Length 400mm, Width 320mm, Height 400mm

Instructions and steps for using the ultrasonic humidifier in the maintenance room

1. Open the packaging box and place the humidifier in a suitable location

2. Connect the inlet of the humidifier to the water supply pipe.

3. Open the drain valve and inject water into the water tank

4. Adjust the screw of the water level control valve inside the box to maintain the water level at the height of the water level line (this machine has been adjusted before leaving the factory)

5. Connect the humidifier host power cord and fan power cord to the corresponding power sources

6. After completing the above tasks, connect the working power supply of the ultrasonic humidifier to an AC 220V power supply. At this point, the humidifier will enter working mode. Supplier: Cangzhou Zerui Testing Instrument Co., Ltd
