Online Coulombic Trace Water Analyzer System

Product Introduction

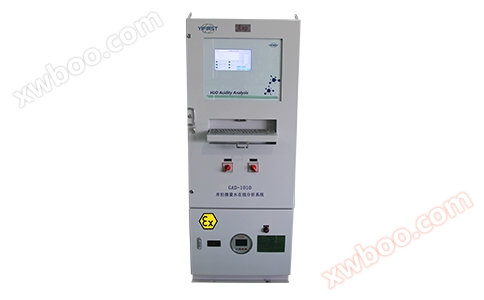

The online Coulomb trace water analyzer system consists of a fully automatic sampling unit, a fully automatic potentiometric analyzer (Coulomb method), a data processing unit, and other systems. The online coulombic trace water analyzer adopts the Karl Fischer Coulomb method for analysis, which fully automatically completes sampling, analysis, cleaning, data calculation, storage and other tasks, suitable for the determination of moisture content of various substances. The whole machine shell adopts a positive pressure ventilation explosion-proof design, which is suitable for use in various complex environments.

Product Features

1. Analysis of Trace Moisture in Electrolyte (Solvent) and Mixed Liquid Phase Media

2. Third party metrology institution testing and calibration

3. Fully automated analysis process, reagent detection, data result storage and query

4. Well developed pre-processing equipment, stable operation, accurate measurement, and long service life

5. Automatic replacement of fresh reagents upon reagent failure, automatic addition of water to adjust electrolysis balance

6. The background current and current are automatically controlled, without interference from air or moisture in the carrier gas

7. Color touch screen operating system, with an intelligent, fast, and convenient interface

8. Output optional analog signal 4-20mA or RS 485 Modbus RTU

9. 4G/5G networking technology, capable of real-time remote data transmission and convenient data management

Technical parameters

Mixing speed: infinitely adjustable

Electrode input: platinum electrode, temperature electrode

Drift value blank value deduction: automatic deduction

Input/Output: RS-232C: 1 port

Measurement speed: 40 μ g H2O/s (MAX)

Measurement range: 0.1 μ g~350mg

Electrolytic current: 0-400mA (adjustable)

Measurement resolution: 0.1 ug H2O

Water content range: 0.1ppm~1000ppm

Usage environment: temperature 2 ℃ -50 ℃, humidity: 90%

Dimensions: 1800Hx700Wx700Dmm

Explosion proof grade: Exdeibmpz Ⅱ CT4Gc

Supply voltage: AC 220V 50Hz 1KW

Signal output: 4-20mA or RS485 Modbus RTU

Measurement accuracy: When the water content is between 100 μ g-1000ug, the error is ≤± 2ug, and when the water content is above 1000ug, the error is ≤± 0.2% (excluding injection error). The standard deviation is ≤ 0.3%.

Special features: automatic drift compensation, automatic deduction of environmental and background moisture, optional computer workstation, fault self check prompt

Application Fields

Chemical industry: products suitable for Karl Fischer method determination, such as alcohols, coolants, acids, benzenes, phenols, organic solvents, etc

Petroleum and electricity: insulating oil, transformer oil and other oil products

Pharmaceutical industry: pharmaceutical raw materials, etc

Pesticide industry: emulsifiers, etc

Lithium battery industry: potassium battery electrolyte, etc

Petroleum and gas industry: natural gas, liquefied gas, butadiene and other gases

Fluorine chemical industry: SF6, Freon and other gases

Special gas industry: gases such as nitrogen, argon, oxygen, etc

Our companyAt present, we have rich experience and practical applications in measuring trace moisture in the following solvents, such as:Electrolyte solvents, carbonate series products, dimethyl carbonate (DMC), methyl ethyl carbonate (EMC), diethyl carbonate (DEC), propylene carbonate (PC), ethylene carbonate (EC), propylene glycol (PG), methyl pyrrolidone (NMP), dipropylene glycol, etc.
