Microscope CCD camera

MIchrome 5 Pro is equipped with Xintu's new computational imaging software Mosaic 2.1, which provides you with the "real-time image stitching" function. You can generate stitched large images simultaneously within seconds of moving the stage, which is light, smooth, and worry free!！

Core Function 2: "Real time" Depth of Field Fusion

MIchrome 5 Pro also provides real-time depth of field fusion function. By rotating the focus ring to capture different depth of field points, clear and large depth of field images can be generated quickly, accurately, and efficiently!

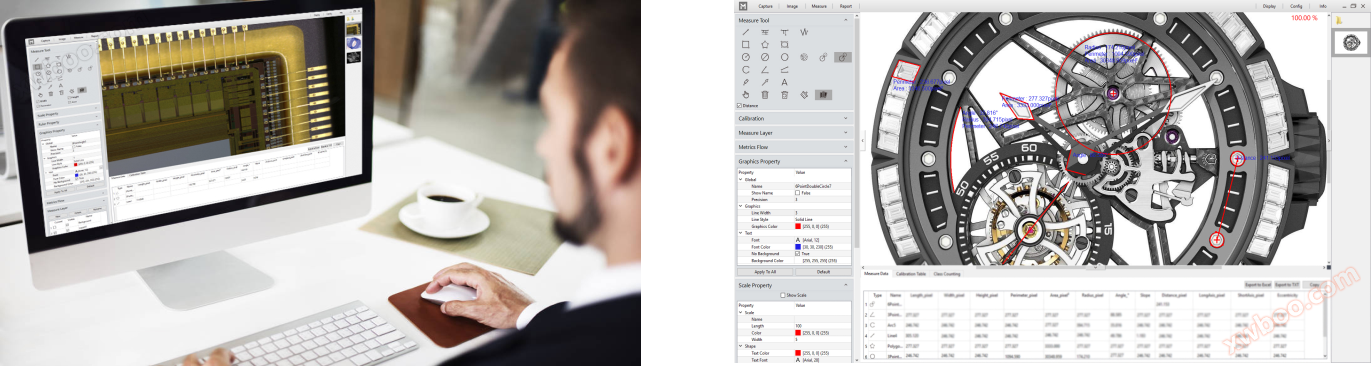

Efficient image acquisition editing measurement report output

Starting from the user experience,provideA complete workflow of image acquisition editing measurement report output,Optimize the operational process,Greatly save your operation time and improve your work efficiency!

Whether it's bright field, fluorescence, or polarization imaging, they can all be handled with ease

Perfectly inherited the Xintu ISPcoreColor restoration technology can effectively improve the color deviation of sensor response to spectra and accurately restore the true color under microscopic field of view. Excellent imaging performance, whether it is bright field, fluorescence, or polarization imaging, all can be handled with ease!

Sony Professional CMOS Sensor

Using Sony's 5-megapixel CMOS sensor IMX264, with a target size of 2/3 "and a pixel size of 3.45 μ m, the maximum resolution of captured images can reach 2448 x 2048. The image captured under low magnification still appears clear even when magnified several times.

Advanced global shutter technology

USB 3.0 stable high-speed transmission

Simple and convenient while ensuring a stable high transmission rate, allowing for quick focusing at high resolutions. At full resolution, fast imaging can be achieved at a rate of 40 frames per second.

• Chip model

• IMX264LQR-C

• chip type

• CMOS

• Chip Size

• 2/3"

• Color Type

• color

• pixel size

• 3.45x3.45(μm)

• resolution

• 2448(H)x2048(V)

• Camera frame rate

• 35fps(2448x2048), 88fps(1224x1024)

• Shutter type

• Global shutter

• Multiple cameras

• Support running 4 cameras simultaneously on SDK

• data interface

• USB3.0

• optical interface

• Standard C interface

• Camera size

• 68*68*47mm

• Camera weight

• 327g
