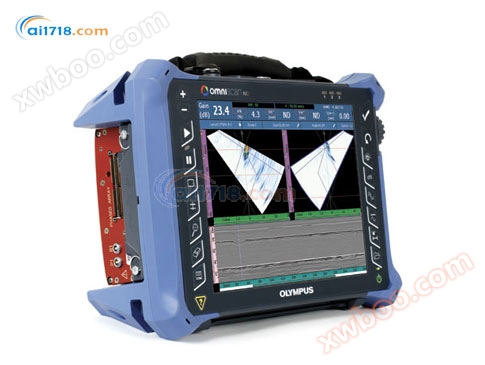

Olympus phased array flaw detector OmniScan MX2

NegotiableUpdate on 03/16

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The technical specifications of OmniScanMX2 ultrasonic phased array OmniScanMX2 host are generally as follows: external dimensions (width x height x thickness) 325mmx235mmx130mm (12.8in. x9.3in. x5.1in.), weight 3.2 kilograms, module not included, with one battery

Product Details

OmniScan MX2 Ultrasonic Phased Array

Technical specifications of OmniScan MX2 host

General specifications
External dimensions (Width x Height x Thickness)	325 mm x 235 mm x 130 mm （12.8 in. x 9.3 in. x 5.1 in.）
weight	3.2 kilograms, without module, with one battery.

Data Storage
Storage device	SDHC card, most standard USB storage devices, or Fast Ethernet
Data file storage capacity	300 MB

I/O interface
USB interface	3 of them
speaker output	have
Video output	Video Output (SVGA)
Ethernet	10/100 Mbps

Input/output cable
encoder	Dual axis encoder line (orthogonal, upward, downward, or clock/direction)
digital input	4 digital TTL inputs, 5V
Digital Output	4 digital TTL outputs, 5 V, 15 mA
Collection opening/closing device	Remote acquisition start TTL, 5V
Power output line	5 V, 500 mA power output line (with short circuit protection)
call the police	3 TTL，5 V，15 mA
Analog Output	2 analog outputs (12 bits), ± 5 V, 10 k Ω
Step speed input	5 V TTL pace input

display
Display Size	26.4 cm (10.4 inches) (diagonal)
resolution	800 x 600 pixels
brightness	700 cd/m2
Color Quantity	16 million
type	TFT LCD (Thin Film Transistor Liquid Crystal Display)

power supply
Type	Intelligent lithium-ion battery
Number of batteries	1 or 2 batteries (two hot swappable batteries can be accommodated in the battery compartment)
Battery power supply time	Using two batteries saves 7 hours

Environmental Indicators
Working temperature range	-10°C～45°C （14 ºF～113 ºF）
Storage Temperature Range	-20 ° C to 60 ° C, with battery. -20 ° C to 70 ° C, without battery.
relative humidity	Under non condensing conditions at 45 ° C, with a maximum relative humidity of 70%.
Intrusion protection rating	IP54
Anti collision rating	Tested according to MIL-STD-810G 516.6.

Compatibility of MX2 module
MXU 3.2 and later versions	OMNI-M2-PA1664
	OMNI-M2-PA16128
	OMNI-M2-PA32128
	OMNI-M-PA32128PR
	OMNI-M-PA3232 (200 V)
	OMNI-M2-UT-2CH
MXU 3.1 and earlier versions	OMNI-M-UT-8CH
	OMNI-M-PA1664
	OMNI-M-PA16128
	OMNI-M-PA32128
MXU-M 3.1 and earlier versions	OMNI-M-PA1664M

Technical specifications for phased array module (applicable to OMNI-M2-PA32128)

Product application:
•Welding seam inspection of pressure vessels
•Composite material testing
•Welding seam inspection of small diameter pipe fittings
•Manual and semi-automatic corrosion
